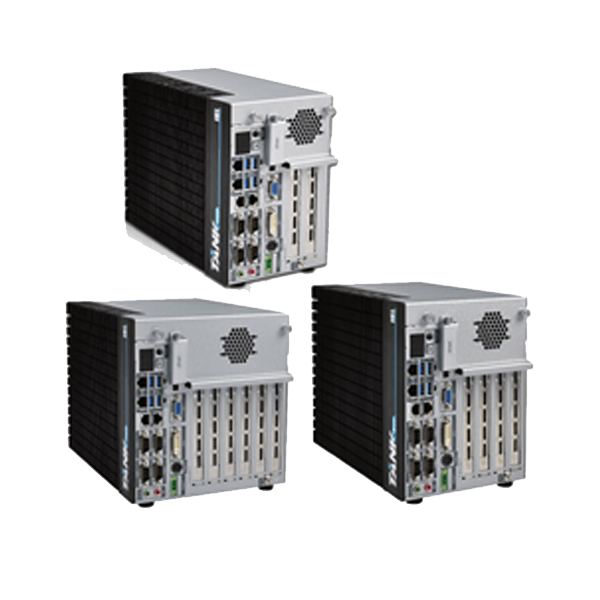

TANK-860-HM86

Intel® HM86 mobile solution. Fanless wide temperature embedded system

End of Life

End of Life Notice

* Effective Date: 2020/07/22

» Intel® HM86 chipset + 4th generation Intel® Core™ CPU
» Great flexibility of expansion slots
2-slot model: 2 x PCIe by 16, 1 x PCIe Mini slot
4-slot model: 2 x PCIe by 16, 2 x PCI, 2 x PCIe Mini slot
6-slot model: 1 x PCIe by 16, 2 x PCIe by 4, 3 x PCI, 2 x PCIe Mini slot
» IPMI function for remote control management
» Three indpendent video outputs support high resolution
» 2 x 2.5" SATA HDD bay design fulfills high storage demand

Hardware Spec.

Form factor
SBC Form Factor CPU:
Intel® Core™ i5-4400E 2.7 GHz
Chipset:Intel® HM86
System Memory
2 x 204-pin DDR3 SO-DIMM slot.
Pre-installed one 4 GB SO-DIMM(system max: 16 GB)
I/O Interface
I/O Ports 4 x USB 3.0
2 x USB 2.0
Ethernet:
2 x RJ-45
1 x PCIe GbE by Intel® I210
1 x PCIe GbE by Intel® I217LM
COM Port:
4 x RS-232 (DB-9, two with isolation)
2 x RS-422/485 (RJ-45)
Digital I/O:8-bit digital I/O, 4-bit input/4-bit output
Display:
1 x VGA, 1 x DVI-I, 1 x DisplayPort
Resolution
VGA: Up to 1920 x 1200@60Hz
DVI-I: Up to 2500 x 1600@60Hz
Displayport: Up to 2500 x 1600@60Hz
Audio:
1 x Line-out, 1 x Mic-in
Wireless 1 x 802.11b/g/n (optional)
Expansion Slots
Expansion Slots PCI/PCIe
2 A: Two PCIe x8 (physical PCIe x16 slot)
4 A: Two PCIe x8 (physical PCIe x16 slot) +2 x PCI
6 A: One PCIe x8 (physical PCIe x16 slot) +two PCIe x4 + three PCI
PCIe Mini
2A: 1 x Full-size (co-lay mSATA)
4A: 1 x Full-size (co-lay mSATA) +1 x Full-size (on backplane)
6A: 1 x Full-size (co-lay mSATA) +1 x Full-size (on backplane)
System
Cooling method / System Fan Fanless
Drive Bays 2 x 2.5” SATA 6Gb/s HDD/SSD bay
Color
Color Black C + Silver
Dimensions
Dimensions 2 slot: 121.5 x 255.2 x 205
4 slot: 154.8 x 255.2 x 205
6 slot: 195.4 x 255.2 x 205
Environment
Operating Temperature -20°C ~ 60°C with air flow (SSD)
Humidity 5% ~ 95%, non-condensing

Ordering Information

TANK-860-HM86i-i5/4G/2A-R10 Ruggedized Fanless embedded system , Intel Core i5 dual-core i5-4400E 2.7GHz, TDP 37W, 4GB DDR3 pre-installed memory , 2 x PCIe by 8 expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10
TANK-860-HM86i-i5/4G/6A-R10 Ruggedized Fanless embedded system , Intel Core i5 dual-core i5-4400E 2.7GHz, TDP 37W, 4GB DDR3 pre-installed memory , 1 x PCIe by 8 / 2 x PCIe by 4 / 3 x PCI expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10
TANK-860-HM86i-i5/4G/4A-R10 Ruggedized Fanless embedded system , Intel Core i5 dual-core i5-4400E 2.7GHz, TDP 37W, 4GB DDR3 pre-installed memory , 2 x PCIe by 8 / 2 x PCI expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10

Package Contents

Package Content
  • 1 x Chassis Screw

  • 1 x Mounting Bracket
