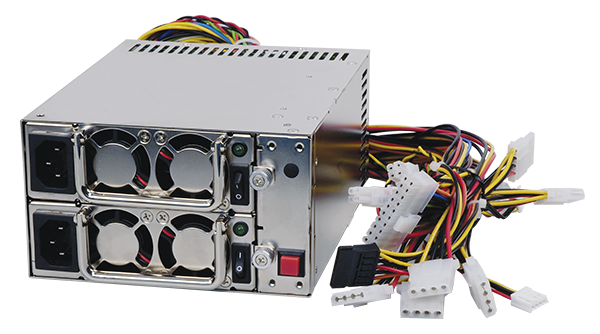

ACE-R4130AP

300 W ATX Mini Redundant Power Supply

300 W ATX Mini Redundant Power Supply

Hardware Spec.

General
Dimensions 185 x 150 x 86 (mm), 7.28 x 5.91 x 3.39 (inch)
Efficiency 65%
MTBF 160,000
Operating temperature 0°C ~ 50°C
Output Connector 1 x 20+4-pin ATX, 1 x 4-pin 12V CPU, 8 x HDD/CDROM, 2 x FDD, 2 x SATA, 1 x Buzzer reset,1 x T.T.L signal, 1 x LED power
Storage temperature -20°C ~ 80°C
Watt 300W
Input
Voltage 90 ~ 264 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 6 A (RMS) @110 VAC, 3 A (RMS) @220 VAC
Inrush Current 60 A max. for 110 VAC, 80 A max. for 220 VAC
Output
Voltage +3.3V/18A,+5V/25A,+12V/16A,-5V/0.5A,-12V/0.5A,+5Vsb/2A

Ordering Information

ACE-R4130AP1-RS 300W AC-DC ATX Redundant module, for ACE-R4130AP,with PFC,CCL;RoHS
ACE-R4130AP-RS 300W ATX Redundant Power Supply,includes two ACE-R4130AP1-RS,with PFC function;CCL
