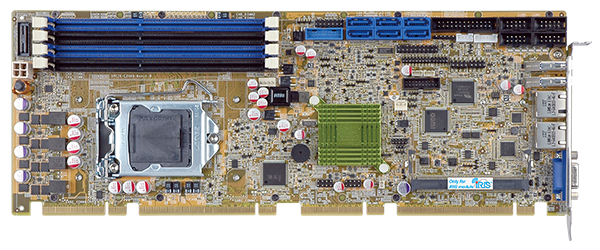

SPCIE-C2260-i2

Full-size PICMG 1.3 CPU Card supports LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® and Celeron® with Intel® C226, DDR3

  • Overview

    ● PICMG 1.3 full-size server grade solution
    ● LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported
    ● Four 240-pin 1600/1333 MHz dual-channel DDR3 DIMMs support up to 32 GB
    ● Supports dual independent display by VGA and iDP interfaces
    ● Supports PCIe Mini devices and mSATA via PCIe Mini socket
    ● Intel® PCIe GbE with Intel® AMT 9.0 support
    ● Supports RAID function via SATA 6Gb/s
    ● TPM V1.2 hardware security function supported by TPM module
    ● Stiffener bars
    ● IEI jumper-less function
    ● Supports IPMI 2.0 via iRIS-2400 module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported
      ChipsetIntel® C226
      MemoryFour 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM ECC and nonECC unbuffered DIMMs
      Memory Max.32GB
      Cooling method / System Fan1 x CPU smart fan (1x4 pin)
      1 x System smart fan (1x3 pin)
      Physical Characteristics
      Dimensions (LxWxH) (mm)338 X 126
      Net Weight420
      Storage
      Storage6 x SATA :6Gb/s (RAID 0/1/5/10 supported)
      1 x mSATA
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x iDP :for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN LAN1: Intel® I217LM with Intel® AMT 9.0 support
      LAN2: Intel® I210-AT PCIe controller with NCSI support
      AudioDescription: Supports 7.1-channel HD Audio by IEI AC-KIT-892HD-R10 kit
      I/O Interface4 x Internal RS-232 :2x5 pin, p=2.54
      1 x Internal RS-422/485 :1x4 pin, P=2.0
      8 x Internal USB 2.0 :4 x 2x5pin, p=2.54,4 x Golden finger
      1 x PS/2 :1x6 pin
      1 x LPT :2x13 pin
      Expansion1 x PCIe mini Card Slot :colay mSATA
      Other Features
      iRIS1 X iRIS-2400 slot
      TPM2x10 pin
      Power
      Power Consumption5V@3.55A, 12V@0.37A, Vcore_12V@7.61A, 3.3V@1.55A, 5VSB@0.13A (Intel® E3-1240 v3 3.4GHz CPU with 16 GB (four 4 GB) 1333 MHz DDR3 memory)
      Power Supply5V/12V, Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      SPCIE-C2260-i2-R10Full-size PICMG 1.3 CPU Card supports LGA1150 Intel Xeon E3/Core™ i3/Pentium and Celeron per Intel C226,DDR3,VGA,IDP,Dual Intel PCIe GbE,SATA III,mSATA, mini PCIe,RS-232,HD Audio, iRIS-2400 and RoHS
    • Package Contents

      • 1 x SPCIE-C2260-i2 single board computer

      • 1 x Dual RS-232 cable

      • 2 x SATA cable

      • 1 x USB 2.0 cable

      • 1 x QIG
