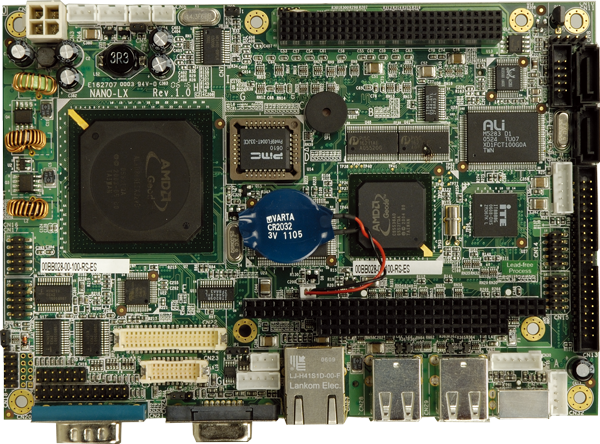

NANO-LX-800

EPIC SBC with AMD LX800 CPU

» EPIC form factor AMD LX800 processor embedded board with RoHS compliant
» DDR 400 MHz SO-DIMM SDRAM up to 1 GB
» VGA, 24-bit TTL, and 18-bit single-channel LVDS
» SATA RAID 0, 1, JBOD function support
» Complete I/O support with two SATA, IDE, PC/104-Plus and four USB 2.0
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System
CPU AMD Geode™ LX800 (500 MHz) processor
Chipset AMD Geode LX800 + AMD CS5536
Memory One 200-pin 400/333 MHz DDR SDRAM SO-DIMM
Memory Max. 1GB
Physical Characteristics
Dimensions (LxWxH) (mm) 115 X 165
Net Weight 350g
Storage
Storage Description: 1 X IDE
2 x SATA VIA VT6421A RAID 0,1 function support
1 x CF Type II Card
I/O Interface
Display Output 1 x VGA :up to 1920x1440@60Hz
1 x TTL :24-bit single-channel (up to 1600x1200@60Hz)
1 x LVDS :18-bit singel-channel (up to 1280x1024@60Hz)
Ethernet 1 x LAN :10/100Mbps Realtek RTL8100C
Audio Description: Realtek ALC203 with AC’97 codec
I/O Interface 1 x External RS-232
5 x Internal RS-232
1 x Internal RS-232/422/485
4 x External USB 2.0
4 x Internal USB 2.0
1 x PS/2
1 x LPT
Power
Power Consumption 12V@0.92A (AMD LX800
with 400 MHz 256MB DDR RAM)
Power Supply 12V only DC input
1 x Internal power connector (2x2 pin)
support AT/ATX mode
Environment
Storage Temperature 0°C ~ 60°C
Operating Shock -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

NANO-LX-800-R12 EPIC SBC,AMD LX800 500MHz Processor,VGA/LVDS/TTL,LAN,SATA and Audio,RoHS

Package Contents

Package Content
  • 1 x NANO-LX single board computer 2 x RS-232 port cable

  • 1 x Audio cable
