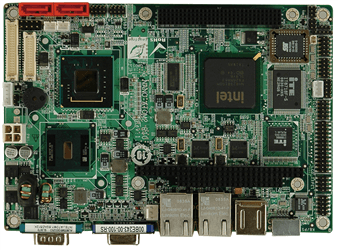

NANO-945GSE2

EPIC SBC with Intel® Atom™ Processor

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» 1.6 GHz Intel® Atom™ N270 CPU with ultra low voltage fanless support
» Single 12V power input, 5V output for SATA device
» Dual display supported by VGA+LVDS, VGA+TTL
» Support four COM, six USB, two SATA and CF Type II socket
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display Display
System CPU
Chipset Intel® 945GSE
Intel® 82801GBM/ICH7M
Memory Max. One 200-pin 533MHz DDR2 SDRAM
SO-DIMM slot support up to 2GB
CPU Socket On Board
I/O Interface Ethernet
Digital I/O 1 x 8-bit digital I/O (2x5 pin)
Audio Realtek ALC655 with AC'97 codec
I/O Interface
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95% non- condensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
FSB FSB
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
3 x RS-232
1 x LPT
6 x USB 2.0

Ordering Information

NANO-945GSE2-N270-R10 EPIC SBC with Intel ATOM N270 1.6G,VGA/LVDS/TTL,Dual GbE,CFII,USB,SATA and PC/104+
NANO-945GSE2-N270W-R10 EPIC SBC with Intel ATOM N270 1.6G,VGA/LVDS/TTL,Dual GbE,CFII,USB,SATA and PC/104+(-20~70°C)
