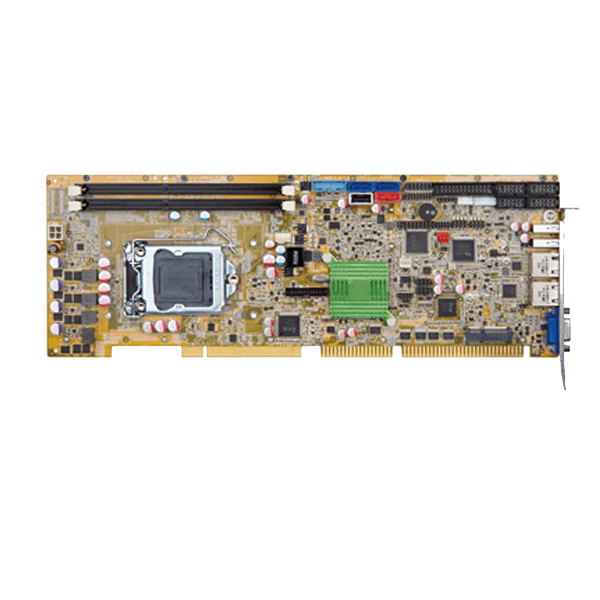

WSB-H810

Full-size PICMG 1.0 CPU Card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81,

  • Overview

    ● Full-size PICMG 1.0 with LGA 1150 Intel® CPU
    ● Two 1600/1333 MHz DDR3 SDRAM DIMM slots support up to 16 GB of memory
    ● Dual Intel® Gigabit Ethernet LAN controller
    ● SATA 6Gb/s and USB 3.0 supported
    ● IEI One Key Recovery solution for rapid OS backup and recovery
    ● TPM v1.2 hardware security function supported by TPM module
    ● Stiffener bars
    ● IEI jumper-less function
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPU4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
      ChipsetIntel® H81
      MemoryTwo 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
      Memory Max.16 GB
      Cooling method / System FanCF-1150SB-R11
      CF-1150SC-R20
      CF-1150SE-R11
      CF-1150SF-R10
      Physical Characteristics
      Dimensions (LxWxH) (mm)338 X 122
      Net Weight260
      Storage
      Storage3 x SATA :2 x 6Gb/s,1 x 3Gb/s(AHCI supported, no RAID)
      1 x mSATA
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x iDP :for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN :1 x Intel® I217-LM Ethernet controller,1 x Intel® I211-AT Ethernet controller
      AudioDescription: :7.1-channel HD Audio supported by IEI AC-KIT-892HD kit
      I/O Interface4 x Internal RS-232 :2x5 pin, P=2.54
      1 x Internal RS-422/485 :1x4 pin, P=2.0
      2 x External USB 2.0
      5 x Internal USB 2.0 :1 X 180° Type-A,4 X 2x4 pin,P=2.54
      2 x Internal USB 3.2 Gen1x1 :2x10 pin
      1 x PS/2 :1x6 pin
      1 x LPT :2x13 pin
      Expansion2 x PCIe mini Card Slot :1 x support mSATA
      Other Features
      TPM2x10 pin
      Power
      Power Consumption5V@3.4A, 12V@0.36A, Vcore_12V@7.48A, 3.3V@1.42A, 5VSB@0.13A
      (Intel® Core™ i7-4770K 3.90 GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory)
      Power Supply5V/12V, Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      WSB-H810-R10Full-size PICMG 1.0 CPU card supports LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA/iDP, Dual Intel GbE, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA, RS-232, HD Audio and RoHS
    • Package Contents

      • 1 x WSB-H810 single board computer

      • 2 x SATA cable

      • 1 x QIG
