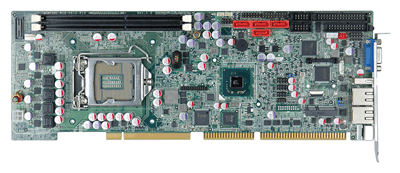

WSB-H610

Full-size PICMG 1.0 CPU Card supports 32nm LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® H61,

  • Overview

    ● Full-size PICMG 1.0 CPU card with LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Two DDR3 & DDR3L 1333/1066 MHz DIMM SDRAM supported up to 16 GB
    ● Embedded controller on board supports infrared and PECI 2.0 technologies
    ● Dual Realtek PCIe GbE and LAN1 with ASF 2.0 support
    ● TPM V1.2 hardware security function supported by TPM module
    ● IEI One Key Recovery solution allows you to create raipd OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Core™ i7/i5/i3, PentiumR, Celeron® processor
      ChipsetIntel® H61
      MemoryTwo 240-pin 1333/1066MHz dualchannel DDR3 & DDR3L (1.35V) DIMMs
      Memory Max.16GB
      Cooling method / System FanCF-1156A-RS-R11
      CF-1156C-RS
      CF-1156D-RS
      CF-1156E-R11
      Physical Characteristics
      Dimensions (LxWxH) (mm)338 X 122
      Net Weight260
      Storage
      Storage4 x SATA :3Gb/s(no AHCI & RAID support)
      I/O Interface
      Display Output1 x VGA :up to 2048x1536@75Hz
      1 x DVI-D :up to 1920x1200@60Hz(Optional)
      Ethernet2 x LAN :1 x Realtek RTL8111E PCIe GbE
      controller with ASF 2.0 support,1 x Realtek RTL8111E PCIe GbE controller
      AudioDescription: :Supports by IEI AC-KIT-892HD-R10 audio kit
      I/O Interface2 x Internal RS-232 :2x5 pin, P=2.54
      1 x Internal RS-422/485 :1x4 pin, P=2.0
      1 x External USB 2.0
      6 x Internal USB 2.0 :2x4 pin, P=2.54
      2 x PS/2 :1 x 1x6 pin
      1 x LPT :2x13 pin
      Expansion1 x PCIe mini Card Slot
      Other Features
      TPM2x10 pin
      Power
      Power Consumption5V@4.53A, 12V@0.19A, Vcore_12V@7.81A, 5VSB@0.18A (3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory)
      Power Supply5V/12V, Support AT/ATX mode
      Environment
      Operating Temperature-10°C ~ 60°C
      Storage Temperature-20°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      WSB-H610-R10Full-size PICMG 1.0 CPU card supports 32nm LGA1155 Intel Core™ i7/i5/i3 CPU per Intel H61,DDR3,VGA,Dual Realtek PCIe GbE,USB 2.0,SATA 3Gb/s,COM,HD Audio and RoHS
      WSB-H610-DVI-R10Full-size PICMG 1.0 CPU card supports 32nm LGA1155 Intel Core™ i7/i5/i3 CPU per Intel H61,DDR3,VGA/DVI-D,Dual Realtek PCIe GbE,USB 2.0,SATA 3Gb/s,COM,HD Audio and RoHS
    • Package Contents

      • 1 x WSB-H610 single board computer

      • 1 x Dual RS-232 cable with bracket

      • 2 x SATA cable

      • 1 x KB/MS Y cable

      • 1 x Mini jumper pack

      • 1 x USB cable

      • 1 x QIG
