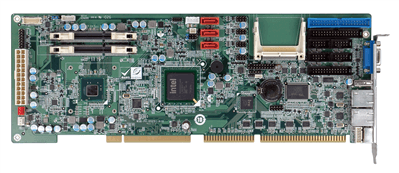

WSB-945GSE

with VGA, Dual PCIe GbE, USB 2.0, SATA and Audio WSB

End of Life

End of Life Notice

* Effective Date: 2016/08/19

» PICMG 1.0 and RoHS compliant
» Intel® Atom™ processor N270 at 1.6GHz core speed with a 533 MHz FSB and 512KB L2 cache
» Enhanced technology for lower power consumption
» Two SATA and CF Type I/II for data storage
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System CPU
Chipset Intel® ICH7M
Memory Max. One 240-pin 533/400 MHz DDR2 SDRAM DIMM
supported (system max. 2GB)
CPU Socket On board
I/O Interface Ethernet
Digital I/O 8-bit Digital I/O (4-bit input/4-bit output)
Display VGA integrated in Intel® 945GSE
Audio Support 7.1 channel HD audio or 5.1 channel
AC-97 audio by IEI audio kits
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95%, noncondensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
6 x Internal USB 2.0
1 x KB/MS
1 x LPT
1 x USB 2.0

Ordering Information

WSB-945GSE-N270-R10 PICMG 1.0 CPU CARD with Intel ATOM N270 1.6G,VGA,Dual GbE,SATA,USB 2.0 and Audio,RoHS
