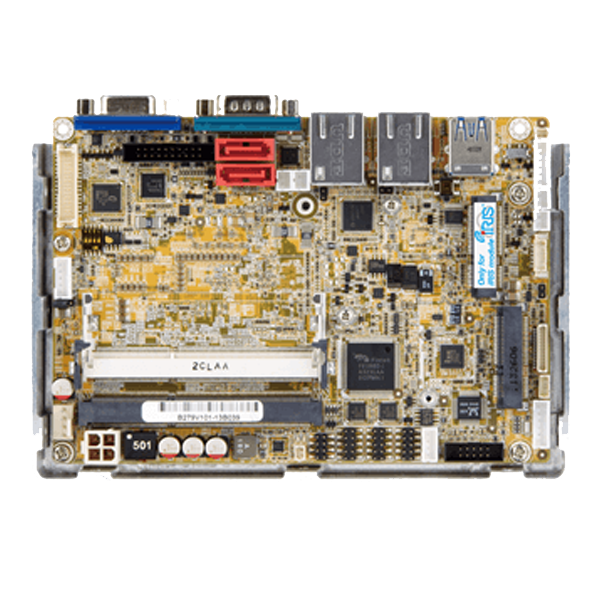

3.5” SBC supports Intel® 22nm 4th/14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)

End of Life

End of Life Notice

* Effective Date: 2023/10/23

» 3.5” form fator with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L DIMMs
» 12V only single voltage design with AT/ATX mode support
» 18/24-bit dual-channel LVDS support
» Support triple independent display via LVDS, VGA and iDP
» Support PCIe Mini card slot for mSATA, 3G card, wireless card and DOM

Hardware Spec.

CPU 5th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-5650U (2.2GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-5350U (1.8GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-5010U (2.1GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3765U (1.9GHz, dual-core, 2MB cache, TDP=15W)
Memory Two 204-pin 1600/1333 MHz dual-channel DDR3L SDRAM SO-DIMM
Memory Max. 16GB
Physical Characteristics
Dimensions (LxWxH) (mm) 146 X 102
Net Weight 250
Storage 2 x SATA
1 x mSATA
I/O Interface
Display Output 1 x VGA
1 x LVDS
1 x iDP
Ethernet LAN
Audio Description:
I/O Interface 1 x External RS-232
2 x Internal RS-232
1 x Internal RS-422/485
2 x External USB 3.2 Gen1x1
2 x Internal USB 2.0
1 x PS/2
Expansion 1 x PCIe mini Card Slot
Power Consumption 12V@2.72A (Intel® Core™ i5-4300U CPU with two 8 GB 1600 MHz DDR3 memory)
Power Supply 12V only DC Input,1 x internal power connector(2 x 2 pin),support AT/ATX mode
Operating Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Safety & EMC CE/FCC compliant

Ordering Information

WAFER-ULT2-i1-i5-R12 3.5" SBC with Intel 14nm 5th Gen ULT Mobile Core i5-5350U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS

Package Contents

Package Content
  • 1 x WAFER-ULT single board computer with heatsink enclosure

  • 1 x Audio cable

  • 1 x Dual-port USB 2.0 cable

  • 1 x Power cable

  • 1 x QIG

  • 2 x SATA with 5V output cable kit
