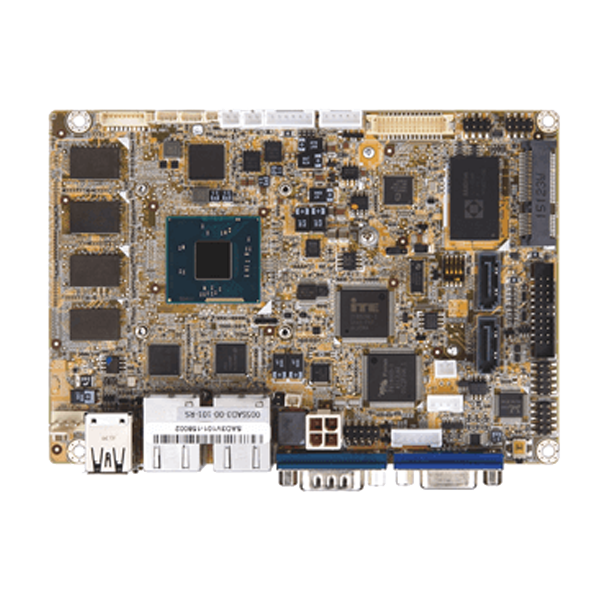

WAFER-BT-E38001W2

3.5” SBC with Intel® 22nm Atom™ SoC

  • Overview

    ● 3.5” SBC supports Intel® 22nm Atom™ on-board SoC
    ● Dual independent display support
    ● On-board 2 GB/4 GB 1066/1333 MHz DDR3L memory
    ● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support
    ● Supports -40°C ~ 85°C
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
      Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
      Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
      Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
      Memory4 GB solder-down 1066/1333 MHz DDR3L memory (for E3845)
      2 GB solder-down 1066/1333 MHz DDR3L memory (for E3825)
      Physical Characteristics
      Dimensions (LxWxH) (mm)146 X 102
      Net Weight250
      Storage
      Storage2 x SATA 3Gb/s(no RAID)
      1 x mSATA :colay SATA port2
      1 x SD/MicroSD card :MicroSD slot
      1 x On-Board SSD :4GB colay SATA port 1(optional)
      I/O Interface
      Display Output1 x VGA :up to 2560x1600@60Hz
      1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      1 x iDP :for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
      Ethernet2 x LAN :1 x Intel® I210-IT PCIe controller,1 x Intel® I210-IT PCIe controller
      AudioDescription: Realtek ALC662 HD Audio codec
      1 x Front Audio :2x5 pin
      I/O Interface1 x External RS-232
      1 x Internal RS-232 :2x5 pin, P=2.0
      1 x Internal RS-422/485 :1x4 pin, P=2.0
      1 x External USB 2.0
      1 x External USB 3.2 Gen1x1
      4 x Internal USB 2.0 :2x4 pin, P=2.0
      1 x PS/2 :1x6 pin
      Expansion2 x PCIe mini Card Slot
      Power
      Power Consumption12V@1.32A (Intel® Atom™ processor E3845 with on-board 2 GB 1333 MHz DDR3L memory)
      Power Supply12 V only DC input,1 x internal power connector(2 x 2 pin),support AT/ATX mode
      Environment
      Operating Temperature-40°C ~ 85°C
      Storage Temperature-40°C ~ 85°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      WAFER-BT-E38451W2-R103.5” SBC with Intel 22nm Atom quad-core E3845 1.91GHz (10W) on-board SoC support -40°C ~ 85°C, 4GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
      WAFER-BT-E38271W2-R103.5" SBC with Intel 22nm Atom dual-core E3827 1.75GHz (8W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
      WAFER-BT-E38251W2-R103.5" SBC with Intel 22nm Atom dual-core E3825 1.33GHz (6W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
      WAFER-BT-E38261W2-R103.5" SBC with Intel 22nm Atom dual-core E3826 1.46GHz (7W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
      WAFER-BT-E38151W2-R103.5" SBC with Intel 22nm Atom single-core E3815 1.46GHz (5W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
    • Package Contents

      • 1 x WAFER-BT single board computer

      • 1 x QIG (Quick Installation Guide)

      • 1 x Power cable
