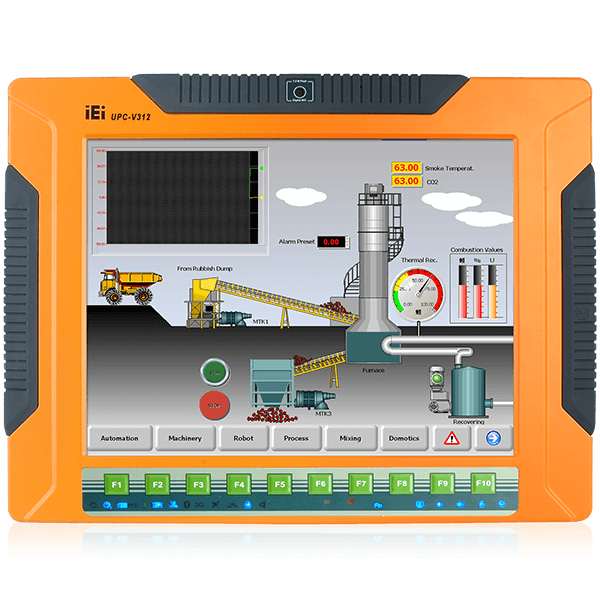

UPC-V312-D525

Intel® Atom™ D525 Dual Core Processor

End of Life

IEI-UPC-V312-panel_PC
IEI-UPC-V312-panel_PC
  • IEI-UPC-V312-panel_PC
  • IEI-UPC-V312-panel_PC

End of Life Notice

* Effective Date: 2018/04/30

» Fully IP 65 compliant with Intel® Atom™ D525 1.8GHz dual-core processor
» 12.1’’ 600 nits 1024 x 768 LCD with LED backlight
» Dual DC input, 9V ~ 36V and 10.5V ~ 36V, switch automatically
» Dual-band 2.4/5 GHz Wi-Fi 802.11 a/b/g/n 3T3R MIMO design
» Reserved space for 3.75G HSUPA USB module
» Optional GPS receiver
» Optional EM or Mifare RFID reader
» Optional Bluetooth module
» Built-in 2-mgeapixel webcam with AF, AE and AWB capabilities
» CAN-bus interface with isolation
» Robust die-casting aluminum chassis

Hardware Spec.

Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 600
Contrast Ratio 700 : 1
LCD Size 12.1"
Max Resolution 1024(W) x 768(H)
Environment
Humidity 10% to 95% (non-condensing)
Operating Temperature -20°C~60°C
Storage Temperature -40°C~85°C
Expansion Slots
Expansion Slots PCIe Mini slot for Wi-Fi module
PCIe Mini slot
I/O Interface
I/O Ports and Switches RS-422/485 (4-pin box header)
RS-232 (DB-9 connector)
CAN-bus (3-pin terminal block)
GbE LAN (RJ-45 connector)
4 x USB connector
Audio jack (Line-out, Mic)
VGA port (DB-15 connector)
RAM On-board 2GB DDR3 SO-DIMM (system max. 2GB )
LCD
LCD Color 16.2M
Pixel Pitch (mm) 0.24mm x 0.24mm
Viewing Angle (H-V) 150° / 130°
Other Features
System Cooling Fanless
Physical Characteristics
Cutout Dimensions 338.5 x 276.25
Dimensions (LxWxH) (mm) 338.5 x 276.25 x 62.86
Power
Power adapter Input: 90VAC~264VAC, 50/60Hz; Output: 19V DC
System
Chipset Intel® ICH8M
CPU Intel® Atom™ D525 1.8GHz dual-core processor
SSD CF Type II / mSATA (SATA2 signal)
Touch
Touch Controller DMC 9000
Touch Screen 5-wire resistive type with RS-232 interface
Weight
Weight 4.5 kg/ 6.8 kg
I/O Interface
I/O Interface 1 x AT/ATX Switch
VGA((DB-15))
4 x USB2.0
1 x Reset Button
1 x RS-422/485((4-pin box header))
1 x RS-232((DB-9))
2 x Power In(DC jack/terminal block)
1 x Mic
1 x CAN-bus((3-pin terminal block))
1 x LAN(RJ-45 for Gbe)
1 x Line out

Ordering Information

UPC-V312-D525/R/2G-R13 12.1" 600cd/m² XGA fanless full IP65 panel PC with Intel® Atom™ D525 dual core 1.8GHz,802.11a/b/g/n wireless module, resistive touch screen, 2M camera,microphone,2GB DDR3 RAM, R13

Package Contents

Package Content
  • 1 x Power Adpater

  • 1 x Screw Kit

  • 1 x Touch Pen
