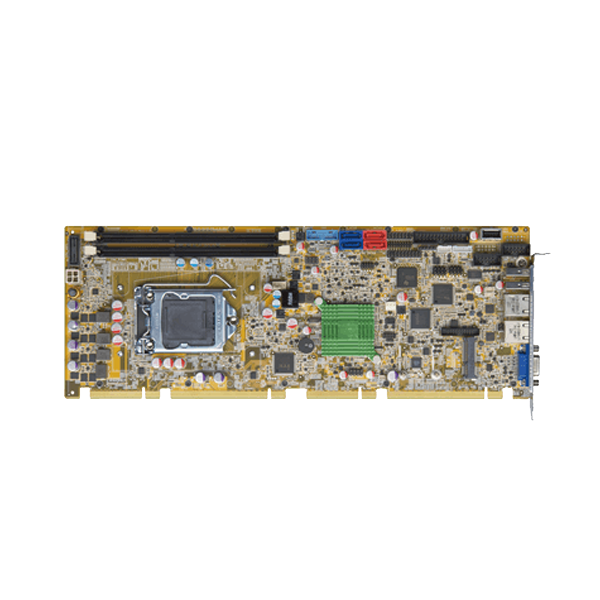

PCIE-H810

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81

  • Overview

    ● PICMG 1.3 full-size solution
    ● 4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Two 1600/1333 MHz DDR3 SDRAM DIMMs support up to 16 GB
    ● Dual Realtek PCIe GbE supported
    ● TPM v1.2 hardware security function supported by TPM module
    ● IEI One Key Recovery solution allows you to create raipd OS backup and recovery
    ● Stiffener bars
    ● IEI jumper-less function
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPU4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
      ChipsetIntel® H81
      MemoryTwo 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs suppor
      Memory Max.16GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)338 X 126
      Net Weight420g
      Storage
      Storage4 x SATA :2 X 3Gb/s (AHCI supported, no RAID), 2 X 6Gb/s
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x iDP :for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      EthernetDescription: Dual Realtek RTL8111E PCIe GbE controllers supported
      AudioDescription: Support 7.1-channel HD Audio by IEI AC-KIT-892HD kit
      I/O Interface2 x Internal RS-232 :2x5 pin, p=2.54
      1 x Internal RS-422/485 :1x4 pin, p=2.0
      2 x External USB 2.0
      9 x Internal USB 2.0 :1 X Type A, 4 X Gplden finger, 4 X 2 X 4 pin, p=2.54
      2 x Internal USB 3.2 Gen1x1 :2x10 pin
      1 x PS/2 :1x6 pin
      1 x LPT :2x13 pin
      Power
      Power Consumption5V@3.41A, 12V@0.35A, Vcore_12V@7.52A, 3.3V@1.41A, 5VSB@0.12A (Intel® Core™ i7-4770K 3.90 GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory)
      Power Supply5V/12V, Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      PCIE-H810-R10Full-size PICMG 1.3 CPU Card supports LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA, iDP, Dual PCIe GbE, SATA 6Gb/s, mSATA, USB 3.0, RS-232, HD Audio and RoHS
    • Package Contents

      • 1 x PCIE-H810 single board computer

      • 2 x SATA cable

      • 1 x QIG
