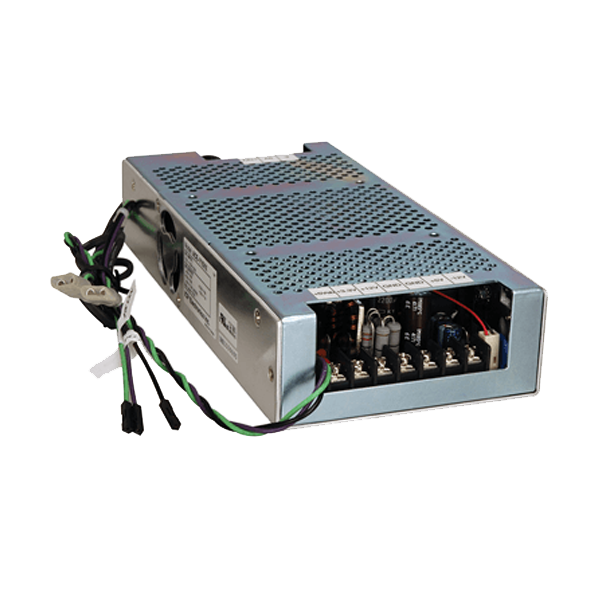

ACE-717CX

1U 24V DC Input ATX Power Supply

End of Life

End of Life Notice

* Effective Date: 2020/08/13

1U 24V DC Input ATX Power Supply

Hardware Spec.

General
Dimensions 198 x 97 x 39
Efficiency 75%
MTBF 100,000
Operating temperature -20°C ~ 70°C (50°C ~ 70°C derating curve)
Output Connector 5VSB & PS_ON cable
Storage temperature -20°C ~ 85°C
Watt 170W
Input
Voltage 19 ~ -32 VDC
Output
Voltage +3.3V/6A,+5V/8A,+12V/8A/-12V/0.5A,+5Vsb/1A

Ordering Information

ACE-717CX-RS 170W 24V DC Input ATX power supply;CCL;RoHS
