ACE-916AP

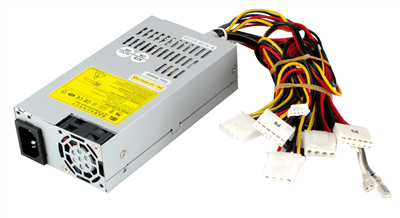

150 W 1U Type AT Power Supply

End of Life

End of Life Notice

* Effective Date: 2018/01/23

150 W 1U Type AT Power Supply

Hardware Spec.

General
Dimensions 150 x 81.5 x 40.5
Efficiency 68%
MTBF 100,000
Operating temperature 0°C ~ 50°C
Output Connector P8P9, FDD, 3 x HDD
Storage temperature -20°C ~ 80°C
Watt 150W
Input
Voltage 90~264 VAC Full Range
Output
Voltage +5V/16A,+12V/6A,-12V/0.3A

Ordering Information

ACE-916AP-RS 150W AT Power Supply full Range with PFC function;;;;CCL;RoHS
