UPC-V315-QM77

Intel® Mobile QM77 Express Chipset

End of Life

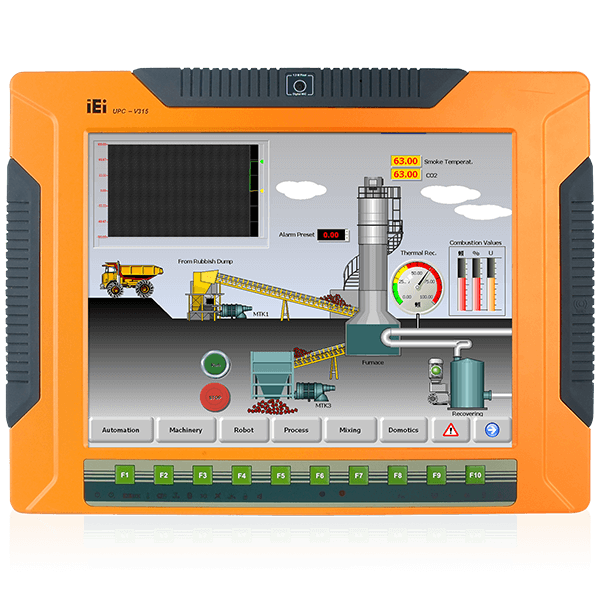

UPC-V315-waterproof-panel-pc
UPC-V315-waterproof-panel-pc
UPC-V315-waterproof-panel-pc
  • UPC-V315-waterproof-panel-pc
  • UPC-V315-waterproof-panel-pc
  • UPC-V315-waterproof-panel-pc

End of Life Notice

* Effective Date: 2019/04/01

» Intel® Ivy Bridge mobile chipset
» 15’’ 400 nits 1024 x 768 LCD with LED backlight
» Full IP 65 compliant die-casting aluminum chassis
» PCIe Mini card expasion
» Dual-DC input, 9V ~ 36V and 10.5V ~ 36V, switch automatically
» ACC power support
» Dual-band 2.4/5 GHz Wi-Fi 802.11a/b/g/n 3T3R MIMO design
» Reserved space for 3.75G HSUPA USB dongle
» Optional GPS receiver
» Optional EM or Mifare RFID reader
» Optional Bluetooth module
» Built-in 2-megapixel webcam with AF, AE and AWB capabilities
» CAN-bus interface with isolation
» F1 ~ F10 function keys with customization options

Hardware Spec.

Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 400
Contrast Ratio 700 : 1
LCD Size 15"
Max Resolution 1024(W) x 768(H)
Environment
Humidity 10% to 95% (non-condensing)
Operating Temperature -10°C~50°C
Storage Temperature -20°C~60°C
Expansion Slots
Expansion Slots 1 x PCIe Mini card
I/O Interface
I/O Ports and Switches 3 x RS-232 (RJ-45)
1 x RS-422/485 (RJ-45)
1 x CAN-bus
1 x VGA
1 x HDMI port
2 x GbE LAN
2 x USB 2.0
2 x USB 3.0
1 x Reset button
1 x Audio jack (Line out, MIC)
RAM Buitl-in one 2 GB DDR3 memory (system max. 8GB: on board max. 4GB, socket max. 4GB)
LCD
LCD Color 16.2M
Pixel Pitch (mm) 0.297mm x 0.297mm
Viewing Angle (H-V) 125° / 140°
Other Features
System Cooling Fanless
Physical Characteristics
Cutout Dimensions 390 x 290
Dimensions (LxWxH) (mm) 427.19 x 330.63 x 77.06
Power
Power adapter 90 W ; 63040-010090-050-RS
Requirement Power 1: 9V~36V(+/-0.3V)
Power 2: 10.5V~36V(+/-0.3V)
System
Chipset Mobile Intel® QM77 Express Chipset
CPU Intel® Celeron® 1047UE processor
HDD 1 x 2.5” SATA SSD bay
SSD mSATA (SATA2 signal)
Touch
Touch Controller DMC 9000
Touch Screen 5-wire resistive type with RS-232 interface
Weight
Weight 6.5 kg / 8.8kg
I/O Interface
I/O Interface 1 x Reset Button
2 x LAN(GbE LAN)
1 x HDMI
1 x CAN-bus
1 x AT/ATX Switch
3 x RS-232((RJ-45))
1 x RS-422/485((RJ-45))
1 x Video
2 x USB2.0
2 x USB3.0
1 x Mic
2 x Power In(9-36V DC jack/9-36V terminal block)
1 x Line out

Ordering Information

UPC-V315-QM77-i7/R/2G-R10 15" 400cd/m² XGA fanless full IP65 panel PC with Mobile Intel® QM77 Express Chipset and Intel® Core™ i7-3517UE Processor, 802.11a/b/g/n wireless module, resistive touch screen, 2M camera,microphone,2GB DDR3 RAM, R10
UPC-V315-QM77-i3/R/2G-R10 15" 400cd/m² XGA fanless full IP65 panel PC with Mobile Intel® QM77 Express Chipset and Intel® Core™ i3-3217UE Processor, 802.11a/b/g/n wireless module, resistive touch screen, 2M camera,microphone,2GB DDR3 RAM, R10
UPC-V315-QM77-C/R/2G-R10 15" 400cd/m² XGA fanless full IP65 panel PC with Intel QM77 and Celeron Dual Core 1047UE Processor (2M Cache, 1.40 GHz), TDP 17W, 802.11a/b/g/n wireless module, resistive touch screen, 2M camera,microphone, 2GB DDR3 RAM, R10

Package Contents

Package Content
  • 1 x Power Adpater

  • 1 x Screw Kit

  • 1 x Touch Pen


Download Specs.
