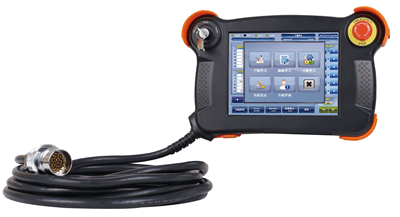

Robot-TP-84M

8.4” Teaching Pendant

End of Life

End of Life Notice

* Effective Date: 2018/04/30

» 350 nits high luminance control terminal with touchscreen to present its graphical user interface.
» 6-meter long all-in-one cable allows easy installation
» Ergonomic body design, easy to operate

Hardware Spec.

Dimensions
Dimensions 321.67 x 204 x 81.41
Environment
Humidity < 90% RH (no condensation allowed)
Operating Temperature 0°C~50°C
Storage Temperature - 20°C ~ 65°C
LCD
Backlight MTBF 50000
Brightness (cd/m2) 350
Contrast Ratio 600:1
LCD Color 262K
Pixel Pitch (mm) 0.207 x 0.207
Resolution 800(W) x 600 (H)
Size 8.4"
Viewing Angle (H-V) 130º / 150º
Physical Characteristics
Color Black
Touch
Touch Screen Resistive Touch Screen

Ordering Information

Robot-TP-84M/K-R11
Robot-TP-84M-R11
Robot-TP-84M/K-ML-R11 8.4” 350cd/m² SVGA TFT LCD teach pendant with touch screen, key switch, 3-position dead-man switch,emergency button, 37-pin military connector, R11
