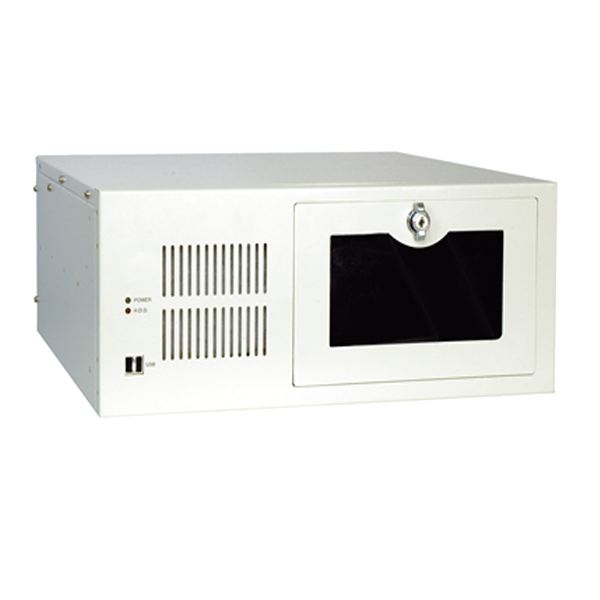

RACK-360

4U 14-slot Full-size Rackmount Chassis

» Cost-effective, RoHS compatible design
» Flexible drive combinations
» Two USB ports on the front panel
» 12 cm cooling fan with replaceable fan filter
» Lockable door prevents unauthorized access

Hardware Spec.

Form factor
SBC Form Factor Full-size, slot CPU card
輸出/入介面
I/O Openings 2 x COM, 2 x LPT
I/O Ports 2 x USB
擴充槽
擴充槽 14 slots for RACK-360G
7 slots for RACK-360GATX
系統
冷卻方式/系統風扇 1 x 12 cm
Drive Bays Shock-resistant disk drive bay design
3 x 5.25” + 1 x 3.5/2.5” HDD
or 2 x 5.25” + 2 x 3.5/2.5” HDD (1 x front accessible)
指示燈與按鈕
按鈕 Power switch, reset button
指示燈 Power, HDD
Physical Characteristics
Construction Heavy duty metal
Color
Color B: Black/W: White
Dimensions
Dimensions 435.5 mm x 431mm x 176 mm
Weight
Weight 11 kg/15.4 kg(Net/Gross)
Environment
Operating Temperature 0°C ~ 50°C
Humidity 10% ~ 90%

Ordering Information

RACK-360GWPX-R30 4U 14-Slot Rackmount Chassis,2xUSB2.0,White,ATX Power Switch,W/O PSU, With Grounding stud,HDD shockproof,RoHS
RACK-360GWATX-R30/300W 4U ATX Rackmount Chassis,2xUSB2.0,White,ATX Power Switch,With 300W PSU and Grounding stud,HDD shockproof,RoHS
RACK-360GWATX-R30 4U ATX Rackmount Chassis,2xUSB2.0,White,ATX Power Switch,W/O PSU, With Grounding stud,HDD shockproof,RoHS
RACK-360GBPX-R30 4U 14-Slot Rackmount Chassis, 2xUSB2.0, Black, ATX Power Switch, W/O PSU, With Grounding stud, HDD shockproof, RoHS
RACK-360GBATX-R30/300W 4U ATX Rackmount Chassis,2xUSB2.0,Black,ATX Power Switch,With 300W PSU and Grounding stud,HDD shockproof,RoHS
RACK-360GBATX-R30 4U ATX Rackmount Chassis,2xUSB2.0,Black,ATX Power Switch,W/O PSU, With Grounding stud,HDD shockproof,RoHS
RACK-360EWPX-R30 4U 14-Slot Rackmount Chassis, 2xUSB2.0, White, ATX Power Switch, W/O internal baking varnish and PSU, With Grounding stud, HDD shockproof, RoHS
RACK-360EWATX-R30/300W 4U ATX Rackmount Chassis,2xUSB2.0,White,ATX Power Switch,W/O internal baking varnish,With 300W PSU and Grounding stud,HDD shockproof,RoHS
RACK-360EWATX-R30 4U ATX Rackmount Chassis, 2xUSB2.0, White, ATX Power Switch, W/O internal baking varnish and PSU, With Grounding stud, HDD shockproof, RoHS
RACK-360EBPX-R30 4U 14-Slot Rackmount Chassis, 2xUSB2.0, Black, ATX Power Switch, W/O internal baking varnish and PSU, With Grounding stud, HDD shockproof, RoHS
RACK-360EBATX-R30/300W 4U ATX Rackmount Chassis,2xUSB2.0,Black,ATX Power Switch,W/O internal baking varnish,With 300W PSU and Grounding stud,HDD shockproof,RoHS
RACK-360EBATX-R30 4U ATX Rackmount Chassis,2xUSB2.0,Black,ATX Power Switch,W/O internal baking varnish and PSU, With Grounding stud,HDD shockproof,RoHS
