NANO-BTW2

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC

  • Overview

    ● EPIC SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC
    ● Supports dual independent display with LVDS, VGA and HDMI
    ● 1.35V DDR3L 1333/1066 MHz SDRAM support up to 8 GB
    ● Support IPMI 2.0 with iRIS-1010 module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
      Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
      Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
      MemoryOne 204-pin 1333/1066 MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
      Memory Max.8 GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)115 X 165
      Net Weight350g
      Storage
      Storage2 x SATA :3Gb/s with 5V SATA power connector(no RAID)
      1 x SD/MicroSD card
      I/O Interface
      Display Output1 x VGA :up to 2560x1600@60Hz
      1 x HDMI :up to 1920x1080@60Hz
      1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I210-IT PCIe controller with NCSI support
      LAN2: Intel® I210-IT PCIe controller
      AudioDescription: Realtek ALC662 HD Audio codec
      1 x Front Audio :2x5 pin
      I/O Interface3 x Internal RS-232 :2x5 pin, p=2.0
      1 x Internal RS-422/485 :1 x4 pin, p=2.0
      1 x External USB 2.0
      1 x External USB 3.2 Gen1x1
      3 x Internal USB 2.0 :2x4 pin, p=2.0
      1 x PS/2
      Expansion1 x PCIe mini Card Slot :Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
      1 x PC/104 :PCI signal
      Other Features
      iRIS1 X iRIS-1010 slot
      Power
      Power Consumption12V@1.52A (Intel® Atom™ processor J1900 with one 8 GB 1333 MHz DDR3 memory)
      Power Supply12V only DC input
      1 x Internal power connector (2x2 pin)
      Support AT/ATX mode
      Environment
      Operating Temperature-40°C ~ 85°C
      Storage Temperature-40°C ~ 85°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      NANO-BT-J19001-ECO-R11Intel 22nm Quad-Core Celeron J1900 2.0GHz (10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA , COM, Audio, ECO packing and RoHS
      NANO-BT-E38451W2-R11EPIC SBC supports Intel 22nm Quad-Core Atom E3845 1.91GHz (10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 3Gb/s, mSATA , COM, audio and RoHS, Extend operating temperature: -40°C ~ +85°C
    • Package Contents

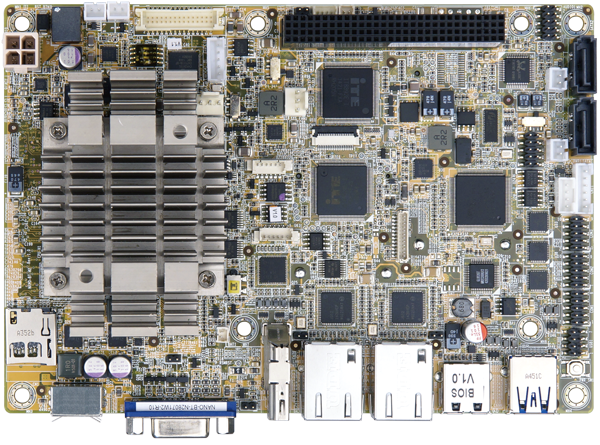

      • 1 x NANO-BTW2 single board computer with heatsink

      • 1 x Power cable

      • 2 x RS-232 cable

      • 1 x QIG (Quick Installation Guide)

      • 2 x SATA with power cable kit
