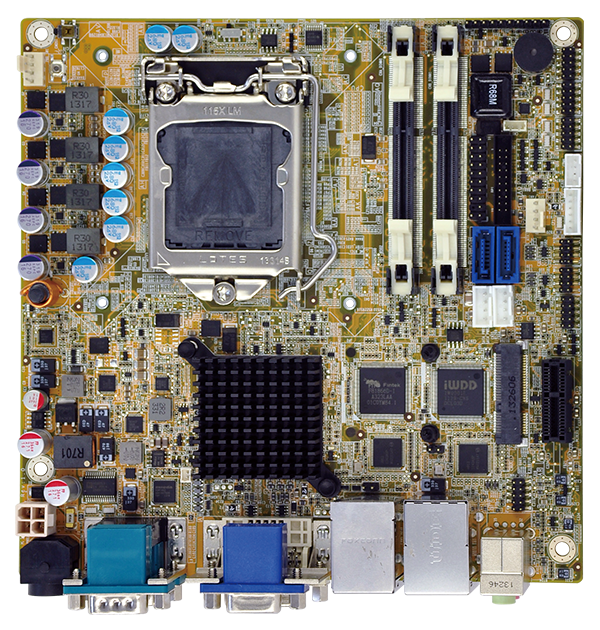

KINO-DH810

Mini-ITX SBC with LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU

  • Overview

    ● 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● DDR3 1066/1333/1600 MHz dual-channel SDRAM
    ● 3D micro-architecture enhancement supports DX11.1, OCL 1.2 and OGL3.2
    ● Rich media acceleration for hardware decode and encode acceleration
    ● High-speed I/O interface for USB 3.0, SATA 6Gb/s and mSATA
    ● IEI Jumper-less function
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPU4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
      ChipsetIntel® H81
      MemoryTwo 204-pin 1600/1333 MHz dual-channel DDR3 SDRAM unbuffered SO-DIMM
      Memory Max.16GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)170 X 170
      Net Weight450g
      Storage
      Storage2 x SATA :6Gb/s with SATA power connector
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x DVI-D :up to 2560x1600@60Hz
      1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN Intel® I211-AT PCIe controller
      AudioDescription: Realtek ALC662 HD Audio codec
      1 x Line out :on rear IO
      1 x Mic :on rear IO
      1 x Front Audio :2x5 pin
      I/O Interface2 x External RS-232
      3 x Internal RS-232 :2x5 pin, p=2.0
      2 x Internal RS-422/485 :1x4 pin, p=2.0
      2 x External USB 2.0
      2 x External USB 3.2 Gen1x1
      2 x Internal USB 2.0 :2x4 pin, p=2.0
      Expansion1 x PCIe x1
      1 x PCIe mini Card Slot :Full-Size slot(support mSATA)
      Other Features
      TPM2x10 pin
      Power
      Power Consumption+12V@6.03A
      (Intel® Core™ i7-4770K 3.90 GHz CPU with two 1333 MHz 4 GB DDR3 memory)
      Power Supply12V only DC input
      1 x External DC jack (4-pin DIN)
      1 x Internal power connector (2x2 pin)
      Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      KINO-DH810-ECO-R10LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® CPU, DDR3, DVI-D, VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, ECO packing and RoHS
      KINO-DH810-R10Mini-ITX SBC support LGA1150 CPU, DVI-D /VGA / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
    • Package Contents

      • 1 x KINO-DH810 single board computer

      • 2 x SATA with power cable kit

      • 1 x I/O shielding

      • 1 x QIG
