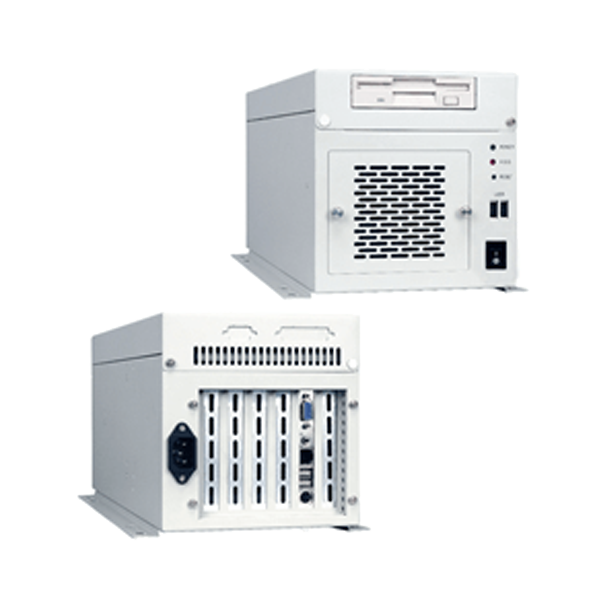

6-slot Full-size Compact Chassis

» RoHS compliant design
» Two USB ports on the front panel
» One 3.5” drive bay and one internal 3.5” HDD bay
» One 8 cm cooling fan

Hardware Spec.

Form factor
SBC Form Factor Full-size, slot CPU card
I/O Interface
I/O Openings 1 x COM, 1 x LPT
I/O Ports 2 x USB
Expansion Slots
Expansion Slots 6 slots
Cooling method / System Fan 1 x 8 cm
Drive Bays 1 x front-accessible 3.5”
1 x 3.5" HDD
Buttons Power switch, reset
Indicators Power, HDD
Physical Characteristics
Construction Heavy duty metal
Color W: White
Dimensions 400 mm x 166 mm x 175.5 mm(DxWxH)
Weight 5.2 kg/7.8 kg(Net/Gross)
Operating Temperature 0°C ~ 50°C
Humidity 10% ~ 90%

Ordering Information

PAC-106GWPX-R30/180W 6-Slot Full size Chassis,White,Powder paint,1x 8cm fan,with 180W ATX PSU,RoHS
PAC-106GWPX-R30 6-Slot Full size Chassis,White,Powder paint,W/O PSU, ATX power switch,RoHS
