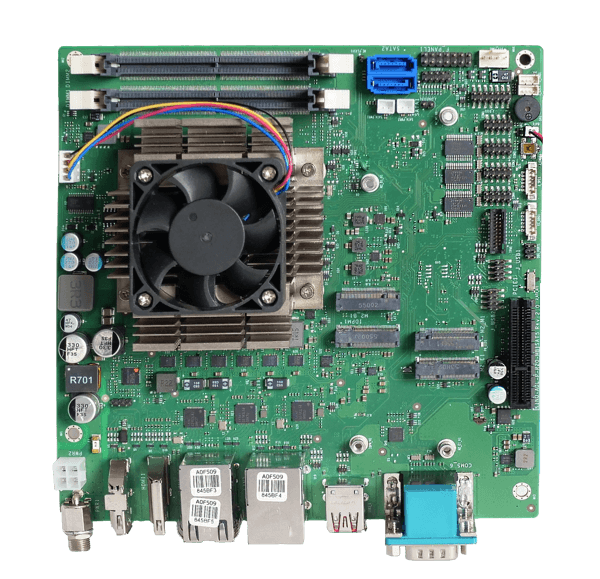

» 12th/13th Gen. Intel® Alder Lake-P/Raptor Lake on board SoC
» 2 x 262-pin 4800 MHz DDR5 SO-DIMM, system up to 64G
» Triple independent display via HDMI, DP and iDPM
» Support triple Intel® I226V and I226LM 2.5GbE controller
» Support PCIe x4, M.2 M key, M.2 B key and M.2 E key expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Mini-ITX SBC |
| System | |
|---|---|
| CPU | Support 12/13th Intel® mobile Alder Lake-P/Raptor Lake on-board processor |
| Memory | 2 x 262-pin 4800 MHz DDR5 SO-DIMM |
| Memory Max. | up to 64G |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 170mm x 170mm |
| Net Weight | GW: 900g / NW: 450g |
| Storage | |
|---|---|
| Storage | 2 x SATA : 6Gb/s |
| I/O Interface | |
|---|---|
| Display Output | 1 x Display Port : DP 1.4 (up to 4096 x 2160 @60Hz) |
| 1 x HDMI™ : 1.4 (up to 4096 x 2160 @30Hz) | |
| 1 x iDPM : IEI iDPM 3040 slot (only for IEI eDP/ LVDS/ VGA module) | |
| Ethernet | 3 x LAN - LAN1: Intel® I226LM 2.5GbE controller LAN2: Intel® I226V 2.5GbE controller LAN3: Intel® I226V 2.5GbE controller |
| Audio | 1 x HD Audio : iAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin) |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
| 2 x External RS-232/422/485 | |
| 4 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 1 x I²C : 1x4 pin | |
| 4 x Internal RS-232 : 2x5 pin, P=2.0 | |
| 4 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| Expansion | 1 x PCIe x4 : PCIe Gen3 x4 Slot Open-ended |
| Other Features | |
|---|---|
| TPM | 1 x TPM 2 x10 pin ,support Intel PTT |
| Power | |
|---|---|
| Power Consumption | 12V@1.52A, 19V@1.06A, 24V@0.81A, 28V@0.709A (12th Gen Intel® Core™ i7-1270PE CPU with 32 GB 4800 MHz DDR5 memory, max. loading, EuP mode enabled) |
| Power Supply | inputvoltage range, 12~28V 1 x internal power connector (2x2 pin) 1 x external DC power jack (Ø2.6mm) ErP/EuP Compliant |
| Environment | |
|---|---|
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Card Slot Interface | |
|---|---|
| M.2 | 1 x M.2 E Key for WIFI & BT 2230 (PCIe Gen3 x1 & USB 2.0) 1 x M.2 B key 3042 (PCIe Gen3 x2 / USB2.0) 1 x M.2 M key 2280 (PCIe Gen3 x4) |
Ordering Information
| KINO-RPLH-i7E-R20 | Mini-ITX SBC with Intel® Alder Lake-P/Raptor Lake-H Core™ i7-1370PE SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display,SATA,Triple Intel 2.5GbE,USB3.2,M.2,SoC,RoHS |
| KINO-RPLH-i5E-R20 | Mini-ITX SBC with Intel® Alder Lake-P/Raptor Lake-H Core™ i5-1340PE SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display,SATA,Triple Intel 2.5GbE,USB3.2,M.2,SoC,RoHS |
| KINO-RPLH-i3E-R20 | Mini-ITX SBC with Intel® Alder Lake-P/Raptor Lake-H Core™ i3-1320PE SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display,SATA,Triple Intel 2.5GbE,USB3.2,M.2,SoC,RoHS |
| KINO-RPLH-CE-R20 | Mini-ITX SBC with Intel® Alder Lake-P/Raptor Lake-H Celeron® 7305E SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display,SATA,Triple Intel 2.5GbE,USB3.2,M.2,SoC,RoHS |
