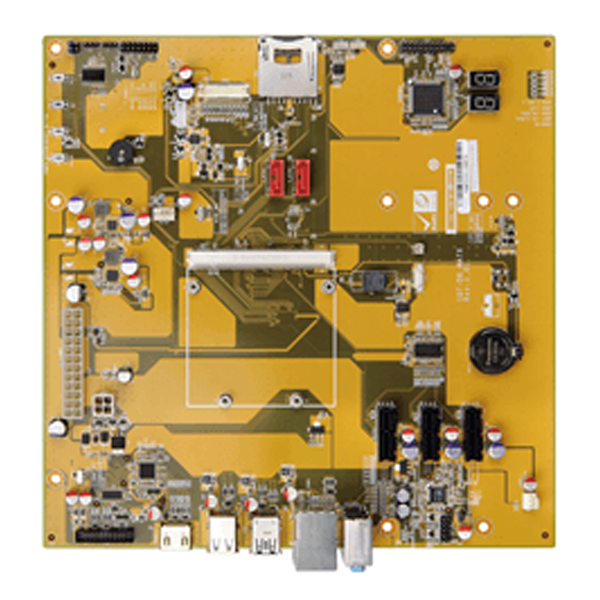

iQ7-DB-MATX

Baseboard for Qseven Rev. 2.0 Module

  • Overview

    ● mATX form factor baseboard for Qseven Rev. 2.0 module
    ● Supports three PCIe x1
    ● 18/24-bit dual-channel LVDS
    ● Supports iRIS-2400/iRIS-2100
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      Dimensions (LxWxH) (mm)243.8 X 243.8
      Storage
      Storage2 x SATA
      1 x SD/MicroSD card
      I/O Interface
      Display Output1 x HDMI
      1 x LVDS
      1 x iDP
      Ethernet1 x LAN :RJ45
      AudioDescription: Realtek ALC662 HD Audio codec
      1 x Line in
      1 x Line out
      1 x Mic
      I/O Interface5 x External USB 2.0
      1 x External USB 3.2 Gen1x1
      Expansion3 x PCIe x1
      Other Features
      TPM2x10 pin
      Power
      Power SupplySupport AT/ATX mode
      Environment
      Operating Temperature-40°C ~ 85°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      iQ7-DB-MATX-R10Base Board for Qseven® Rev. 2.0 module
