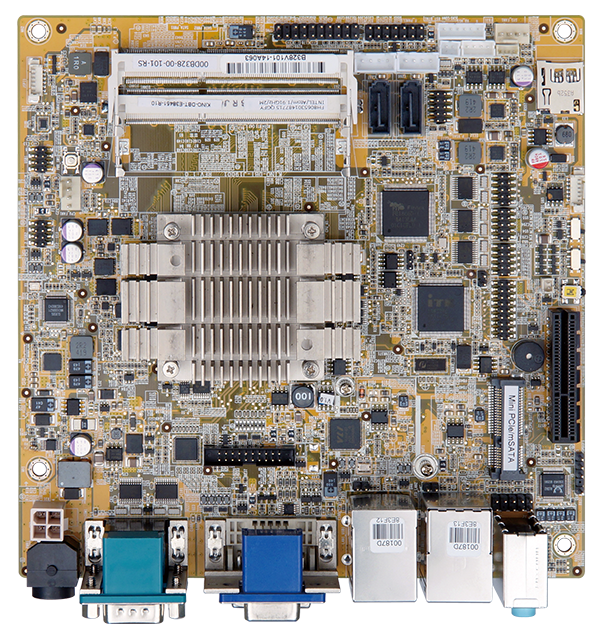

KINO-DBT

Mini-ITX SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC,

» Mini-ITX SBC with 22nm Intel® Atom™ on-board SoC
» 1.35V DDR3L 1066/1333 MHz SDRAM supporting up to 8 GB of memory
» Dual independent display support
» COM, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA and HD Audio support
» Support Intel® VT-x techology

Hardware Spec.

System
CPU Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.5W)
Memory Two 204-pin 1066/1333 MHz dual-channel unbuffered DDR3L SDRAM SO-DIMM
Memory Max. 8 GB (J1900, N2930, E3845, E3827, E3826,E3825, E3815) or 4 GB (N2807)
Physical Characteristics
Dimensions (LxWxH) (mm) 170 X 170
Net Weight 400g
Storage
Storage 2 x SATA :3Gb/s
1 x mSATA :colay STAT2
1 x SD/MicroSD card :E38XX sku only
I/O Interface
Display Output 1 x VGA :up to 2560x1600@60Hz
1 x DVI-D :up to 1920x1080@60Hz
1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
Ethernet 2 x LAN : (detail as below)
LAN1: Realtek RTL8111HN PCIe GbE controller
LAN2: Realtek RTL8111HN PCIe GbE controller
Audio Description: Realtek ALC662 HD Audio codec supports 5.1-channel
1 x Line in :on rear IO
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x S/PDIF :1x5 pin
1 x Front Audio :2x5 pin
I/O Interface 2 x External RS-232
3 x Internal RS-232 :2x5 pin, p=2.0
1 x Internal RS-422/485 :1x4 pin, p=2.0
2 x External USB 2.0
2 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, p=2.0
1 x PS/2 :1x6 pin
Expansion 1 x PCIe x4 :with PCIe X 1 signal
1 x PCIe mini Card Slot :Full-Size slot
Other Features
TPM 2x10 pin
Power
Power Consumption 12V@1.64A (Intel® Celeron® J1900 CPU with 4 GB 1333 MHz DDR3L memory)
Power Supply 12V DC input
1 x External DC jack (4-pin DIN)
1 x Internal power connector (2x2 pin)
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

KINO-DBT-N29301-R10 Mini-ITX SBC supports Intel® Celeron® Quad-Core Processor N2930(7.5W), VGA/DVI/iDP, Dual Realtek® PCIe GbE, USB 3.0, SATA, HD Audio, RoHS
KINO-DBT-N28071-R10 Mini-ITX SBC supports Intel® Celeron® Dual-Core Processor N2807(4.3W), VGA/DVI/iDP, Dual Realtek® PCIe GbE, USB 3.0, SATA, HD Audio, RoHS
KINO-DBT-J19001-R10 Mini-ITX SBC supports Intel® Celeron® Quad-Core Processor J1900(10W), VGA/DVI/iDP, Dual Realtek® PCIe GbE, USB 3.0, SATA, HD Audio, RoHS

Package Contents

Package Content
  • 1 x KINO-DBT single board computer

  • 1 x SATA cable with power output cable


Download Specs.
