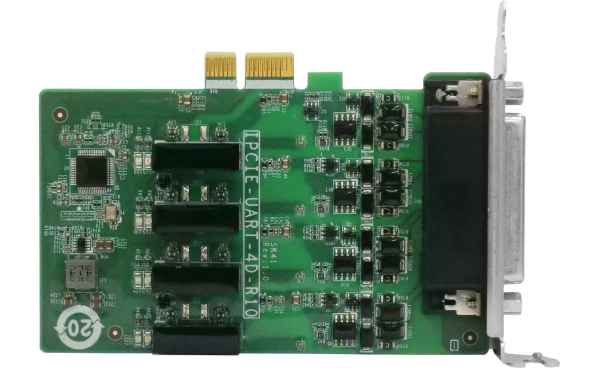

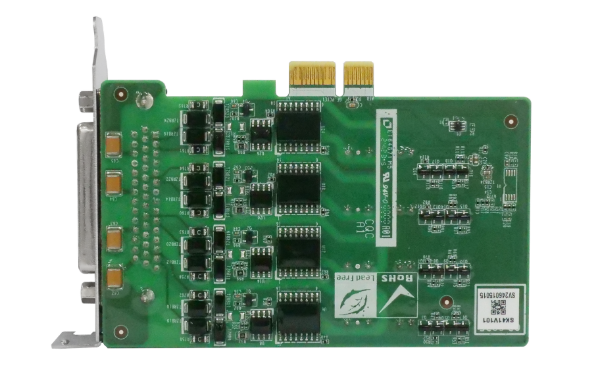

» PCIe card supports four RS-422/485 Ports
» 128 bytes transmit/receive FIFO
» High-speed 16C550/16C650/16C750/16C850 compatible UARTs
» Baud rate supports 115.2K, max. up to 1.5M
» 4 kV surge and 2 kV isolation protection with conformal coating
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | PCI Express® x1 (Gen3) |
| System | |
|---|---|
| Chipset | Fintek F81504 (PCI Express Bridge to Quad Serial Port) |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 105 x 69 mm |
| Net Weight | 40g |
| I/O Interface | |
|---|---|
| I/O Interface | 4 x External RS-422/485 (DB-44) |
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -20°C ~ 85°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
|---|---|
| Safety & EMC | CE/FCC compliant |
