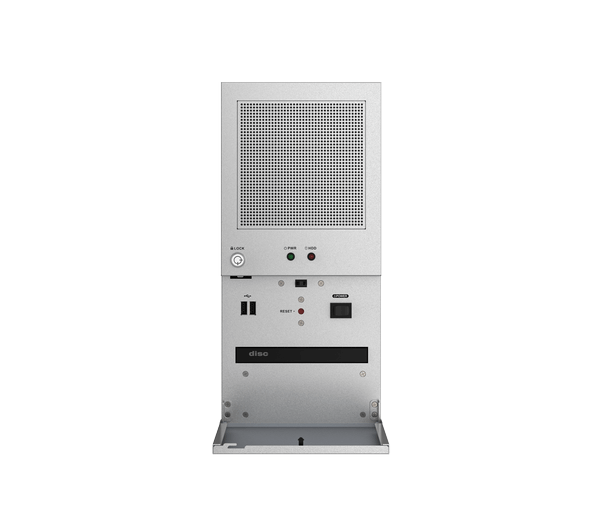

» Compatible with microATX form factor motherboards
» One 3.5” and one 2.5” HDD/SSD bay
» Two USB ports on the front panel
» Support Ultra slim DVD
» Four expansion slots
» RoHS compliant design
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | MicroATX Motherboard |
| 輸出/入介面 | |
| I/O Ports |
2 x USB (Front Panel) 6 x DB9 (Reserved) |
| 擴充槽 | |
| 擴充槽 | 4 slots |
| 系統 | |
| 冷卻方式/系統風扇 | 1 x 80mm |
| Drive Bays |
1 x 3.5” HDD bay 1 x 2.5” HDD bay 1 x Ultra slim DVD bay |
| 指示燈與按鈕 | |
| 按鈕 | Power switch, reset button |
| 指示燈 | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | Silver |
| Dimensions | |
| Dimensions | 157mm x 337.5mm x 341mm |
| Environment | |
| Operating Temperature | -10°C ~ 50°C |
| Humidity | 10% ~ 90% |
| Operating Vibration | Half-sine wave 3G, 11ms, 100 shocks per axis (SSD) |
| Operating Shock | MIL-STD-810F 514.5C-1 (SSD) |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| ECA-310-R10 | Desktop/Wallmount chassis, supports microATX motherboard, one 3.5” HDD/2.5” SSD bay, supports 1U ATX power supply, RoHS |
|---|
Package Contents
| Package Content |
|
|---|
