AFL4-W07-RK3566

7” Fanless Panel PC with Rockchip® RK3566 Processor

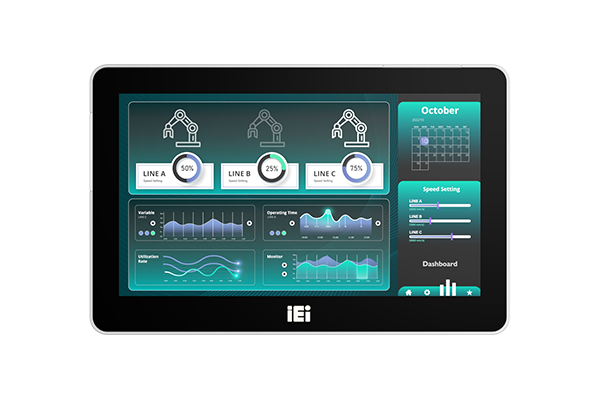

AFL4-W07-RK3566 Front
AFL4-W07-RK3566 Right
AFL4-W07-RK3566 Left
AFL4-W07-RK3566 IO
  • AFL4-W07-RK3566 Front
  • AFL4-W07-RK3566 Right
  • AFL4-W07-RK3566 Left
  • AFL4-W07-RK3566 IO
» Rockchip RK3566 Platform
» New narrow bezel design
» Anti-glare and Anti-UV PCAP
» Support Gloved and Wet Hand Operation
» Support WiFi5/ 6 and Bluetooth®5.0 (Optional)

Hardware Spec.

系統
CPU Rockchip RK3566 (Quad-core Cortex-A55, Up to 1.8GHz)
On-board Memory 4GB LPDDR4/4X, Up to 8GB
Memory Ext. Dual channel On board LPDDR4/4x
2/4GB
Storage 16/32GB eMMc
Communication
Wireless Wireless module of WIFI5/WIFI6 & BT V5.0 B TO B interface (Optional)
輸出/入介面
Ethernet 1 x 1GbE LAN By YT8521
Audio 1 x 1W (internal speaker)
1 x 3.5 mm Audio Jack (Line out/Line in)
Expansion 1 x M.2 B Key Slot For 3042 4G Module
Audio Codec RK809
Power
Input 12V DC
Environment
Operating Temperature 0°C ~ 50°C
Safety & EMC CE/EMC, FCC, Class A
Humidity 10% ~ 90%@40ºC (non-condensing)
Storage Temperature -20ºC ~ 60ºC
IP Level IP54 Front panel
Physical Characteristics
Color Silver+Black
Mounting Wall , Stand , ARM, VESA 75
Dimensions (LxWxH) (mm) 180 x 116 x 35.45 mm
LCD
Size 7” (16:9)
Resolution 1024 x 600
Brightness (cd/m2) 450(cd/m2)
Contrast Ratio 800:1
Pixel Pitch (mm) 0.1056 x 0.1432
Viewing Angle (H-V) 170°/170°
Backlight MTBF 30000 hours
Touch
Touch Screen Multi-point projected capacitive type
(anti-UV / anti-glare coating, support gloves)
Surface hardness: 7H
Touch Controller EETI EXC 81 Series
其他特點
Audio 1 x 1W (internal speaker)
1 x 3.5 mm Audio Jack (Line out/Line in)
I/O Interface
I/O Interface 2 x RS-232/422/485 (by DB9)
1 x USB 2.0
1 x USB 3.2 Gen1x1
1 x HDMI™ (up to 4096 x 2304 @60Hz)
1 x LAN (YT8521SC 1GbE controller)
1 x DC Input Jack
1 x Reset Button
1 x Power Switch
1 x USB 3.2 Gen1x1
1 x USB2.0
OS Support
OS Support Android 12.0 / Debian 10 (Kernel 4.19)

Ordering Information

AFL4-W07-RK3566-R10 7" 450cd/m2 1024x600 fanless Panel PC with RK3566, 4GB LPDDR4/4X, 32GB eMMC, 1xUSB2.0, 1xUSB3.0, 2xRS-232/422/485, HDMI, 1xRJ45, 12V DC IN, Option WIFI/BT, Optional M.2 B key for 3042 LTE, PCAP touch, Debian10, Rohs
AFL4-W07-RK3566-A-R10 7" 450cd/m2 1024x600 fanless Panel PC with RK3566,4GB LPDDR4/4X,32GB eMMC,1xUSB2.0,1xUSB3.0,2xRS-232/422/485,HDMI,1xRJ45,12V DC IN,Option WIFI/BT,Optional M.2 B key for 3042 LTE,PCAP touch, Android12,Rohs
AFL4-W07-RK3566-2/16GB-R10 7" 450cd/m2 1024x600 fanless Panel PC with RK3566,2GB LPDDR4/4X,16GB eMMC,1xUSB2.0,1xUSB3.0,2xRS-232/422/485,HDMI,1xRJ45,12V DC IN,Option WIFI/BT,Optional M.2 B key for 3042 LTE,PCAP touch, Debian10,R10,Rohs

Package Contents

Package Content
  • 1 x AFL4-W07-RK3566

  • 1 x Power Cord

  • 1 x Power Adapter

  • 1 x QIG
