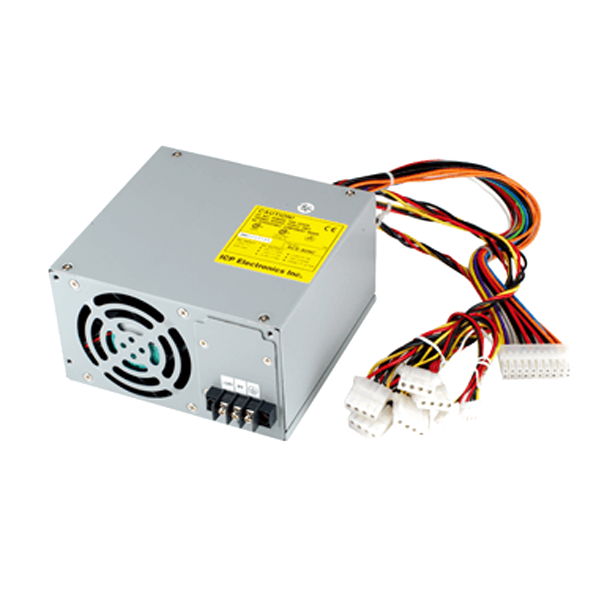

ACE-828C

250 W PS/2 24 V DC Input ATX Type

End of Life

End of Life Notice

* Effective Date: 2020/08/13

250 W PS/2 24 V DC Input ATX Type

Hardware Spec.

General
Efficiency 65%
MTBF 120,000
Operating temperature -20°C ~ 70°C
Output Connector 1 x P8+P9, 1 x Extra +5V (P10), 4 x HDD/CDROM, 2 x FDD
Storage temperature -40°C ~ 75°C
Watt 250W
Input
Voltage 18 ~ 32 VDC
Input Current 20 A (RMS)@24VDC
Inrush Current 20 A (RMS)@24VDC
Output
Voltage +3.3V/8A,+5V/25A,+12V/7A,-5V/0.5A,-12V/1A,+5Vsb/0.72A
Ripper&Noise +5 V, +3.3 V output are less than 50mV
+12 V, -5 V, -12 V, +5 Vsb output are less than 100mV

Ordering Information

ACE-828C-RS +24V DC input industrial ATX power supply;;;;CCL;RoHS
