KINO-ADLPS

Mini-ITX SBC support Intel® Alder Lake-PS Core™ i9/i7/i5/i3 and Celeron® processor, DDR4 SO-DIMM, triple display with DP, HDMI™ and iDPM slots, SATA, Dual Intel 2.5GbE, USB3.2, M.2, RoHS

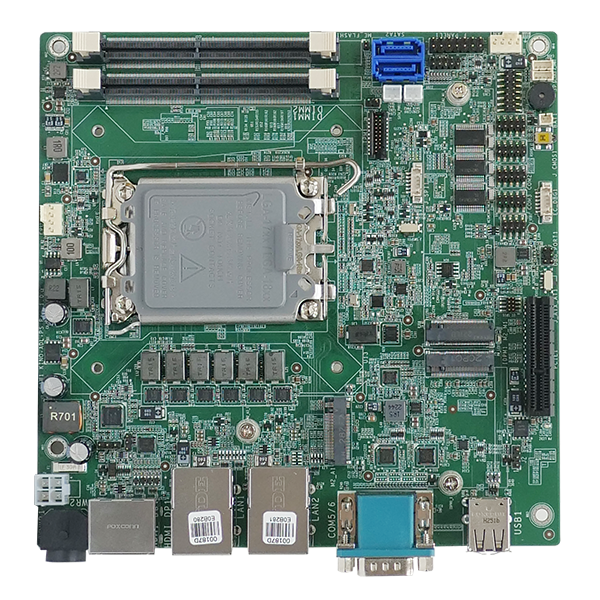

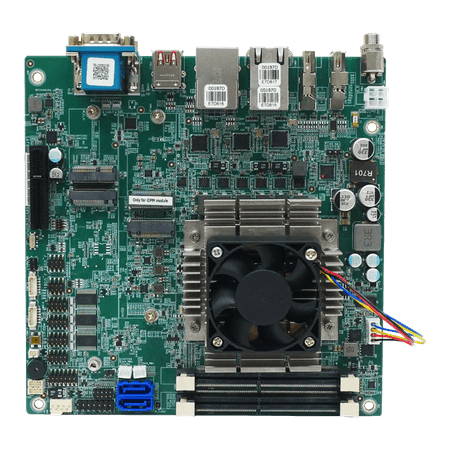

KINO-ADL-PS Front
KINO-ADL-PS IO
KINO-ADL-PS Back
KINO-ADL-PS Side
  • KINO-ADL-PS Front
  • KINO-ADL-PS IO
  • KINO-ADL-PS Back
  • KINO-ADL-PS Side
» Mini-ITX SBC support Intel® Alder Lake-PS Core™ i9/i7/i5/i3 and Celeron® processor (socket)
» Support two 3200MHz DDR4 SO-DIMM
» Triple independent display via HDMI™, DP, iDPM
» Support Dual Intel® I225V 2.5GbE controller
» Support PCIe Gen3 x4, M.2 M key and M.2 A key expansion

Hardware Spec.

System
CPU Mini-ITX SBC support Intel® Alder Lake-PS Core™ i9/i7/i5/i3 and Celeron® processor (socket)
Memory Two 3200 MHz DDR4 SO-DIMMs
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 170mm x 170mm
Net Weight GW: 900g / NW: 400g
Storage
Storage 2 x SATA : 6Gb/s
I/O Interface
Display Output 1 x Display Port : up to 4096 x 2304 @60Hz
1 x HDMI™ : up to 4096 x 2304@60Hz
1 x iDPM : 3040 slot (only for iEi eDP/LVDS/VGA module)
Ethernet 2 x LAN -
LAN1: Intel® I225V 2.5GbE controller (Colay with I226-LM)
LAN2: Intel® I225V 2.5GbE controller (Colay with I226-LM)
Audio 1 x HD Audio : 1 x iAUDIO, support IEI AC-KIT-888S Audio Module (2 x 5 pin)
I/O Interface 1 x DIO : 12-bit digital I/O (2x7 pin)
2 x External RS-232/422/485 : RS-485 support AFC
2 x External USB 2.0 : Type A
4 x External USB 3.2 Gen2x1 : 10Gb/s
4 x Internal RS-232 : 2x5 pin, P=2.0
2 x Internal USB 2.0 : 2x4 pin, P=2.0
Expansion 2 x M.2(NGFF) -
1 x M.2 A Key for WIFI & BT 2230 (PCIe Gen3 x1 & USB2.0)
1 x M.2 M Key 2242/3080 (PCIe Gen4 x4)
1 x PCIe x4 : PCIe Gen3 x4 signal (x4 & x2 + x2 & x2 + x1 + x1)
Power
Power Consumption TBD
Power Supply +12V DC input power (AT/ATX mode)
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 5% ~95%, non-condensing

Ordering Information

KINO-ADLPS-i7-R10 Mini-ITX SBC with Intel® Alder Lake-PS Core™ i7-1265UL Processor (socket ), DDR4 SO-DIMM, Triple Display,SATA,Dual Intel 2.5GbE,USB3.2,M.2,RoHS
KINO-ADLPS-i5-R10 Mini-ITX SBC with Intel® Alder Lake-PS Core™ i5-1245UL Processor (socket ), DDR4 SO-DIMM, Triple Display,SATA,Dual Intel 2.5GbE,USB3.2,M.2,RoHS
KINO-ADLPS-i3-R10 Mini-ITX SBC with Intel® Alder Lake-PS Core™ i3-1215UL Processor (socket ), DDR4 SO-DIMM, Triple Display,SATA,Dual Intel 2.5GbE,USB3.2,M.2,RoHS
KINO-ADLPS-C-R10 Mini-ITX SBC with Intel® Alder Lake-PS Celeron® 7305L Processor (socket ), DDR4 SO-DIMM, Triple Display,SATA,Dual Intel 2.5GbE,USB3.2,M.2,RoHS

Package Contents

Package Content
  • 1 x KINO-ADLPS single board computer

  • 1 x I/O Shielding

  • 1 x SATA with power cable

  • 1 x QIG
