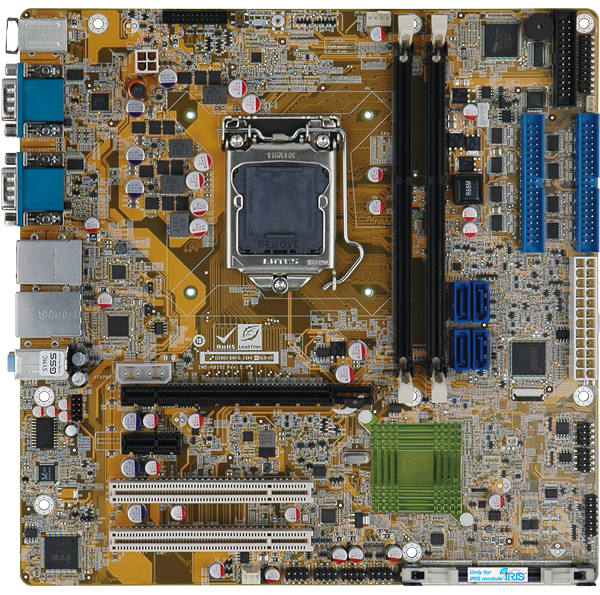

IMB-H810-i2

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81

  • Overview

    ● LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Dual-channel DDR3 1333/1600 MHz support up to 16 GB
    ● Intel® HD Graphics technology integrates high-performance graphics and media processing
    ● Supports legacy PCI 32-bit 33/66 MHz
    ● Ten COM ports, USB 3.0 and SATA supported
    ● TPM V1.2 hardware security function supported by TPM module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
    ● Support IPMI 2.0 via iRIS-2400 module
    ● IEI jumper-less function
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
      ChipsetIntel® H81
      MemoryTwo 240-pin 1600/1333 MHz dualchannel DDR3 & DDR3L SDRAM unbuffered DIMMs
      Memory Max.16GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)244 X 244
      Net Weight680g
      Storage
      Storage4 x SATA :2 x 3Gb/s, 2 x 6Gb/s
      I/O Interface
      Display Output2 x VGA :up to 1920x1200@60Hz
      1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I217LM with Intel® AMT9.0 support
      LAN2: Intel® I210-AT PCIe controller with NCSI
      AudioDescription: Realtek ALC662 HD Audio codec supports
      5.1-channel
      1 x Line in :on rear IO
      1 x Line out :on rear IO
      1 x Mic :on rear IO
      1 x Front Audio :2x5 pin
      I/O Interface2 x External RS-232
      8 x Internal RS-232 :2x20 pin, p=2.54
      1 x Internal RS-422/485 :1x4 pin, p=2.0
      2 x External USB 2.0
      2 x External USB 3.2 Gen1x1
      1 x PS/2
      1 x LPT :2x13 pin, p=2.54
      Expansion1 x PCIe x16 :Gen 3
      1 x PCIe x1
      1 x PCI Slot
      Other Features
      TPM2x10 pin
      Power
      Power Consumption3.3V@0.64A, 5V@4.20A, 12V@0.14A,
      Vcore_12V@3.88A, 5VSB@0.20A
      (Intel® Core™ i7-4770K 3.90 GHz CPU with 8
      GB (two 4 GB) 1333 MHz DDR3 memory)
      Power SupplySupport ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      IMB-H810-ECO-R11LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA, Dual PCIe GbE, USB 2.0, COM, LPT, SATA 6Gb/s, HD Audio, ECO packing, RoHS
      IMB-H810-i2-R11Micro ATX Motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3 CPU per Intel® H81, DDR3, VGA, Dual Intel PCIe GbE, USB 2.0, PCI, COM, LPT, SATA 3Gb/s, HD Audio, iRIS and RoHS
    • Package Contents

      • 1 x IMB-H810-i2 single board computer

      • 2 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
