NWR2-L2S

PCIe Expansion Riser Cards for IEI 3.5”/4” SBC

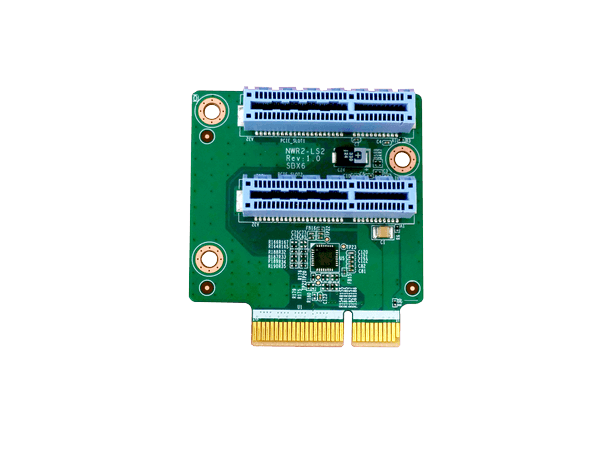

NWR2-LS2 Front
NWR2-LS2 Side
  • NWR2-LS2 Front
  • NWR2-LS2 Side
PCIe x4 to two PCIe x2,the left side

Hardware Spec.

外觀
外觀尺寸(mm) 55 mm * 60 mm
I/O Interface
Expansion 2 x PCIe x4 : x2 signal
環境
操作溫度 0°C~60°C
存儲溫度 -30°C~70°C
濕度 5 ~ 95% non-condensing
Card Slot Interface
PCIe PCIe x4

Ordering Information

NWR2-L2S-R10 PCIe x4 to two PCIe x2 riser card for WAFER on the left side
NWR2-L2S-N-R10 PCIe x4 to two PCIe x2 riser card for NANO on the left side

Package Contents

Package Content
  • 1 x NWR2-L2S Riser Card

  • 1 x bracket
