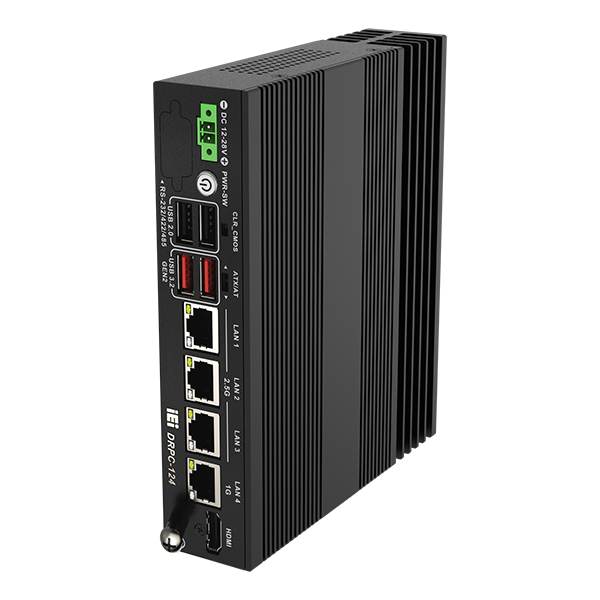

Ultra-slim four-port Ethernet DIN-Rail PC,
ensuring efficient workflow in industrial
and commercial environments
The DRPC-124 is a super-slim DIN rail mountable device that is only 3.5 cm wide, which is 40% smaller than its predecessor, allowing you to optimize your installation space and efficiency. Powered by Intel® Celeron® Processor J6412 and equipped with extensive network interfaces, 12-24V DC power input, and a rigid
-10°C to 50°C operating temperature, it masterfully caters to a wide range of industrial/commercial applications including virtual router,
motion control, and machine vision deployments.
Optimized for Improved Efficiency and
Performance with Intel®
Powered by an Intel® Celeron® J6412 quad-core CPU, backed by Intel® UHD Graphics, the DRPC-124-EHL delivers excellent processing and graphical competencies, while maintaining power-efficient operations. Bolstered by 8 GB LPDDR4x on-board memory for multitasking demands, the DRPC-124-EHL ensures dependable and cost-effective performance to meet escalating edge computing needs.
Intel® Celeron® J6412 quad-core
processor (up to 2.60 GHz)
LPDDR4x onboard 8GB RAM
(customizable up to 16GB)
Ultra Slim, Easy Installation in Limited Space
Weighing only 1.7lbs with dimensions 199 mm
(L) x 119 mm (W) x 35 mm (D), this compact
design is created by optimizing the cooling
structure and I/O simplification, resulting
in a 30% reduction in installation area
(compared to our conventional model). It has
achieved the most space-saving size in the
industry, making the DRPC-124 ideal for
areas with restricted space such as wall
enclosures, internal machinery, and
collaborative robots, enhancing workspace
usage without trading off performance.
Versatile Mounting Ways
With versatile mounting solutions, the DRPC-124 offers an easy m ethod for integration into your workspace.
Quadruple LAN Ports Adoption for Varied Applications
Featuring a array of four distinct Local Area Network (LAN) por ts, this inventive network strategy illustrates a smart configur ation to markedly
augment both safety and productivity.
EtherCAT Motion Controller
Micro Firewall Appliance
Device to Device Connection
Serving as an EtherCAT (Ethernet for Control Automation Technology) controller for automated machines, the DRPC-124-EHL fuses a sole
Intel™ I210IT Gigabit Ethernet controller tailored for EtherCAT technology, enabling instantaneous communication and delivering exact control.
The DRPC-124-EHL provides ideal hardware foundations for profes sional firewall appliance utilization in an enterprise field and even in harsh
environments, such as factory automation, telecommunication, building automation, and transportation. Four physically independent Ethernet
ports allow you to segment your entire network into four regions.
It provides rich 1GbE and 2.5GbE network interfaces to satisfy a wide range of deployment needs. No need to purchase an additional switch to
expand Ethernet ports. High-resolution, rapid-response image capture via IP cameras, instantaneous sensors, and other data-heavy devices
benefit from the improved efficiency and reliability delivered by a direct network connection.
Supports Up to Two PCIe Gen3 SSDs
The DRPC-124-EHL accommodates three storage
entities within its compact system, assigning one
drive for the operation system, a distinct drive for
application software and the rest for backup
objectives. Furthermore,it allows you to install dual PCIe Gen3 x2 SSDs, which can achieve twice the data transfer speeds of the previous PCIe Gen2 link.
Fanless Chassis with Effective
Trim Heatsink Design
To streamline the system footprint, IEI formulated a compact passive cooling
structure to attain the objective, not only minimizing the frame size but also
channeling heat from the hot spot to cast out fins towards the DIN rail for
extended thermal dispersion.
2-Step Easy Upgrade SSD
Users need only unscrew and lift the chassis cover to
access the memory module, storage drives, and wireless
card for easy upgrades.
4K HDMI ® 1.4b Output
Can Handle Anything Under 1080p
Doesn't handle 4K beyond 30 Hz
Bandwidth: 10.2 Gbps
Color Depth: 8 Bit
Audio Channel: 8
1080p (FHD) 60 Hz
2160 (UHD) 30 Hz
1080p 3D 120 Hz
Industrial Grade Design
The DRPC-124-EHL Series sustains its efficiency and dependability even in rigorous industrial conditions.
Wide temperature range in operation: -10°C to 50°C
