HYPER-EHL
» Support Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
» Support Intel® I225V 2.5GbE Ethernet controller
» Support dual independent display via HDMI™ and iDPM
» Support one PCIe x4 and one M.2 M Key expansions
» Support two USB 3.2 Gen 2, two USB 2.0, with up to 10Gb/s transfer speed
-
PCIe Gen3 x4
-
-
LPDDR4x-3200
-
-
Dual Display
-
-
M.2 M Key
-
-
2.5GbE
-
-
iSATA 6Gb/s
-

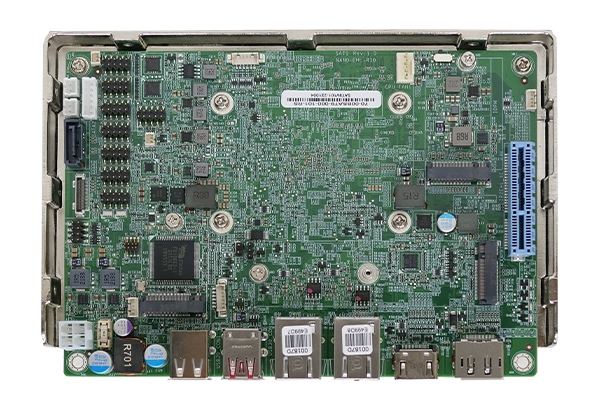

The HYPER-EHL is a 2.5" Pico-ITX fanless single board computer powered by an on-board Intel® Celeron® J6412/N6210 processor with Intel® UHD Graphics. It supports dual independent display, and offers multiple high-speed I/O on a board size of just 100 x 72 mm, including 2.5GbE, USB 10Gb/s and RS-232/422/485. Additional functionalities can be added through the equipped PCIe Gen3 x4 slot, enhancing the flexibility on system integration in many space-critical applications such as AMR/AGV, delivery robot, EV charging station and medical care system.
High Performance with Low Power
Intel® Celeron® J6412/N6210 On-board SoC
Equipped with Intel® Celeron® J6412/N6210 processor and 4GB on-board LPDDR4X, the HYPER-EHL can deliver high levels of CPU and graphics performance at low power. Compared to the previous generation, it improves up to 1.7x on CPU and up to 2x on graphics, and gets up to 74% higher benchmark score. With the feature of low power and excellent throughput, the HYPER-EHL can benefit IoT edge computing by saving lots of energy while maintaining high computation.
Long-term Support
Intel® Celeron® J6412/N6210 processor is available and supported for an extended period (based on Intel IOTG Roadmap). This long-term availability can benefit integrators who are looking to maximize their return on investment.
Reliable 4GB LPDDR4x Memory
Equipped with 4GB dual-channel LPDDR4x soldered memory, the HYPER-EHL offers a fast memory speed of up to 3200MT/s and with low voltage (VDDQ voltage 0.6V). The soldered-on-board type enables the HYPER-EHL to deliver much more stable, solid operation compared to the socket-type memory for critical usage such as transportation, AMR and other mobile applications.
LPDDR4x Memory
PCI Express Gen3 Slot Allows
Extensive I/O and Function Expansion
The HYPER-EHL features a PCIe Gen3 x4 (x4 signal) slot, which is a new design of IEI 2.5" single board computer to provide easy integration of PoE cards, video capture cards, I/O cards or the compatible IEI riser cards for more function expansions. IEI riser cards are available with different orientations and configurations, offering great flexibility and expandability. Each of the riser card came with a metal holder for enhancing stability, not only the riser card itself but also the expansion card installed on it.
Outwards-facing Expansions: Two PCIe x2 / Four PCIe x1
The outwards-facing riser cards enable the connection of up to four outwards-facing PCIe x1 slots via one PCI Express interface. Although may take up more space, it can help enhance the airflow and heat transfer within the system. It is ideal for the chassis that is wide enough for the expansion card to be placed.
Inwards-facing Expansions: Two PCIe x2 / Four PCIe x1
The inwards-facing riser cards enable the connection of up to four inwards-facing PCIe x1 slots via one PCI Express interface. It is suitable for installation where space is limited. With higher height to increase spacing between boards, it can ensure efficient heat dissipation for space-constrained applications.
PCIe x4 Interface Card Expansion
The PCIe Gen3 x4 (x4 signal) slot, providing high-speed data transfer rate of up to 4GB/s, allows for additional customization and expansion. Directly installing a PCIe card enables the motherboard to run more complex and challenging tasks at the edge.
Outwards-facing Expansions: Two PCIe x2 / Four PCIe x1
The outwards-facing riser cards enable the connection of up to four outwards-facing PCIe x1 slots via one PCI Express interface. Although may take up more space, it can help enhance the airflow and heat transfer within the system. It is ideal for the chassis that is wide enough for the expansion card to be placed.
Inwards-facing Expansions: Two PCIe x2 / Four PCIe x1
The inwards-facing riser cards enable the connection of up to four inwards-facing PCIe x1 slots via one PCI Express interface. It is suitable for installation where space is limited. With higher height to increase spacing between boards, it can ensure efficient heat dissipation for space-constrained applications.
PCIe x4 Interface Card Expansion
The PCIe Gen3 x4 (x4 signal) slot, providing high-speed data transfer rate of up to 4GB/s, allows for additional customization and expansion. Directly installing a PCIe card enables the motherboard to run more complex and challenging tasks at the edge.
Dual Display Outputs Support Graphics in 4K
The integrated Intel® UHD Graphics, featuring max. 16 EUs, up to 2x performance improvement and 4K support, makes the HYPER-EHL have the ability to drive a maximum resolution of 4kp30 on two simultaneous displays through the HDMI™ 1.4 port and the IEI-specific iDPM slot.
iDPM Modules
iDPM-LVDS-R10
iDPM-eDP-R10
iDPM-VGA-R10
2.5GbE Network Enables Efficient Data Transfer
The RJ45 LAN port provides 2.5GbE connectivity by the integrated Intel® I225V controller. It accelerates overall network performance, delivers lightning-fast speed, and improves the bandwidth required at large-scale workloads. By connecting with a 2.5G network switch, it can form a solid, optimized infrastructure for the deployment of edge IoT to communicate between devices efficiently.
NVMe SSD via M.2 PCIe Gen3
Ensures Fast and Stable Data Transfer
SSD is widely used in industrial applications to provide reliable data storage due to its features of shock and temperature resistance, long lifetime and high stability. The equipped M.2 2242 M-key socket comes with PCI Express® Gen3 x2 bandwidth and supports up to 16Gbps data-transfer speeds, making them the perfect choice for installing NVMe SSD to provide fast data access in rugged environment.
Low-profile SATA 6Gb/s Port
with Data and Power Integrated
SATA 6Gb/s SSD or HDD is supported through the iSATA connector that provides both SATA and SATA power (+5V) signals in a small footprint. This low-profile connector can save space in system integration while enabling high-speed data transfer between devices at the edge.
Applications
Dimensions
HYPER-EHL
SBC with Outwards-facing
Riser Card (R2S)
Riser Card (R2S)
SBC with Outwards-facing
Riser Card (R4S)
Riser Card (R4S)
SBC with Inwards-facing
Riser Card (L2S)
Riser Card (L2S)
SBC with Inwards-facing
Riser Card (L4S)
Riser Card (L4S)
Optional Accessories
Converter Board
Riser Card
Cable
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Pico-ITX |
| System | |
| CPU |
|
| Memory | LPDDR4x-3200Gbps 4GB,up to 8GB |
| Memory Max. | 8GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 100mm x 72mm |
| Net Weight | 600g |
| Storage | |
| Storage | 1 x M.2(NGFF) : M key (2242,PCIe Gen3 X 2) |
| 1 x SATA : iSATA 6Gb/s | |
| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4096x2160 @ 30Hz |
| 1 x iDPM : support iEi eDP/ LVDS/ VGA module | |
| Ethernet |
1 x LAN - LAN1: Intel® I225V 2.5GbE controller |
| I/O Interface | 2 x External USB 3.2 Gen2x1 : 10Gb/s (Type A) |
| 1 x Internal RS-232/422/485 : 1x9 pin, P=1.25 | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| Expansion | 1 x M.2(NGFF) : M key (2242,PCIe Gen3 X 2) |
| 1 x PCIe x4 (PCIe Gen3 x4) | |
| Power | |
| Power Consumption |
12V@ 2.07A (Intel® Celeron® J6412 CPU with 4 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode enabled) |
| Power Supply |
ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -30°C~70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| HYPER-EHL-N6210B-R10 | PICO-ITX SBC supports Intel® two-core Celeron® N6210 1.2GHz on-board SoC, with 4GB LPDDR4x memory on board default,with HDMI™,iDPM,M.2 M key,USB 3.2,iSATA 6GB/s,COM,PCIe x4 for riser card and RoHS |
|---|---|
| HYPER-EHL-J6412B-R10 | PICO-ITX SBC supports Intel® quad-core Celeron® J6412 2.0GHz on-board SoC, with 4GB LPDDR4x memory on board default, with HDMI™,iDPM,M.2 M key,USB 3.2,iSATA 6GB/s,COM,PCIe x4 for riser card and RoHS |
Package Contents
| Package Content |
|
|---|
