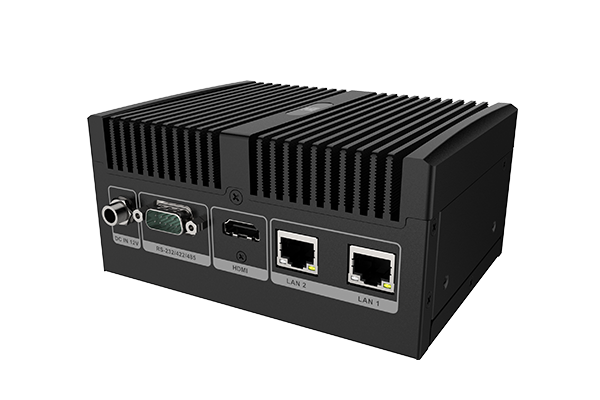

The uIBX-260 is a compact, powerful box PC designed to support your industrial IoT applications that require installation into confined spaces. It is fanless, and features an Intel® Celeron® J6412 processor with onboard LPDDR4x memory that delivers exceptional, reliable performance at low power. Flexible storage options are available, including M.2 NVMe or 2.5" SATA HDD, to suit your needs on data processing. Moreover, the uIBX-260 not only has Wi-Fi capability for seamless control of IoT devices, but also equips dual 2.5GbE ports for faster network communication, making it ideal for use in factory automation, warehouse management, transportation, and other edge computing applications.
Intel® Celeron® J6412 Quad-core Processor, up to 2.60GHz
The uIBX-260 is powered by an Intel® Celeron® J6412 processor, and is built-in with on-board 8GB LPDDR4x memory. Compared to the previous generation (uIBX-250), the uIBX-260 offers 236% boost on CPU performance. This allows the uIBX-260 to deliver high levels of CPU and graphics performance at low power for 24/7 operation in most of advanced IoT applications.
Reliable Onboard 8GB
Dual-channel LPDDR4x Memory
The uIBX-260's memory is upgraded to LPDDR4x, which not only brings faster memory speeds at 4267MT/s, but also reduces the power consumption of the memory system by 60% from 1.5V to 0.6V. The dual-channel memory is soldered on board, enabling the box PC to deliver much more stable, solid operation compared to the socket-type memory for critical usage such as transportation, AGV and other mobile scenarios.
Easily Fits into Any Industrial Setting
With a mounting space of just 137 x 102.8 x 65.8 mm, the uIBX-260 is perfect for industrial applications that require installation into confined spaces, for example as an IoT gateway in a control cabinet for data acquisition, pre-processing or even data aggregation. It is also ideal for wall mounting and is VESA 75 compliant, which allows the compact system to be mounted onto any VESA mount devices.
Dual Storage Design - M.2 NVMe SSD & 2.5-inch HDD/SSD
The uIBX-260 can accommodate both M.2 NVMe SSD and 2.5-inch SATA SSD, providing flexible options for users with different data storage requirements. By leveraging the PCIe Gen3 x2 bus, the NVMe SSD features high-level performance and speed. It can provide real-time data processing or analysis, and greatly optimize computing at the edge.
Wi-Fi 6E Capability Enables Seamless Control of IoT Devices
The compact box PC equips one M.2 A-key slot for installation of an optional module to provide Intel Wi-Fi 6E and Bluetooth 5.2 technology. This wireless network capability offers an easy-to-deploy and cost-effective foundation that requires no separate gateways or specialized skills to deliver IoT applications. Two external antennas can also be added to improve the coverage, performance and reliability of a Wi-Fi network by reducing latency, packet loss, and interference.
*Wi-Fi & Bluetooth module and antennas are optional items
With the popularity of IoT device connectivity, the number of devices connected wirelessly by Wi-Fi is increasing dramatically, which will lead to over congestion in the 2.4GHz and 5GHz bands, making it difficult for Wi-Fi to reach its full potential. The uIBX-260 has capability to support the latest Wi-Fi 6E (802.11ax) technology with a new 6GHz channel. Older devices with low network requirements can connect to the 2.4GHz and 5GHz bands, while devices with high network requirements can connect to the new 6GHz band for network experience improvement.
The optional Intel® AX210 wireless module can make the uIBX-260 carry with advanced OFDMA & MU-MIMO wireless technology to greatly provide connection efficiency and network capacity. MU-MIMO effectively improves signal gain when multiple users are sending and receiving at the same time. It delivers double throughput, from 80 MHz to 160 MHz, ultra-low latency and uninterrupted connectivity.
The Bluetooth® 5.2 includes Isochronous Channel (ISOC) feature which lays the foundation for the implementation of next generation of Bluetooth® Audio – Low Energy Audio. In addition, LE Power Control (LEPC) offered by Bluetooth® 5.2 allows the transmitter to adjust its transmission power by itself or can be requested to change its transmission power by a peer device.
One-click device pairing
& easier file sharing
Up to 20% less audio
power consumption vs.
2x faster speeds' vs.
Connect multiple devices
at a time
Dual 2.5GbE Enhance Transfer Speed
2.5GbE can provide higher bandwidth and lower latency than the traditional 1 Gigabit Ethernet, which can improve the performance and reliability of applications that involve large data transfers or real-time communications. Since it uses the same cabling as the Gigabit Ethernet, the cost and complexity of upgrading the network infrastructure can be significantly reduced.
-10°C~50°C Fanless System
A fanless system, like uIBX-260, is more energy-efficient, reliable and durable than a system with a fan. It is also more resistant to dust, dirt, and moisture, as it has no openings or vents. With optimized heatsink that has a large surface area and a finned structure to dissipate heat quickly, uIBX-260 can perform stably and prevent overheating, throttling, or damage to the components. Therefore, uIBX-260 is suitable for harsh environments and applications that require high performance, low noise, and high reliability.
Withstands Extreme Shocks and Vibrations
The uIBX-260 is a rugged and reliable box PC offering superior shock and vibration protection that can withstand harsh and mobile environments and conditions.
- • Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
- • Operation Vibration: 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)
Small Size, Rich Interfaces
• M.2 Wi-Fi 6E kit
• IEEEE 802.11a/b/g/n/ac/ax 2T2R
• Bluetooth 5.2
• Two RF cables and two external antennas included
• RS-232/422/485 cable
• Cable length: 250mm
• MOLEX (1x9, P=1.25) to D-SUB 9
• Windows® 10 Enterprise Entry 64-bit 2021 LTSC
• DVD-ROM with OS image
• Wall mount kit
• VESA 75 compliant
• Easy installation
|SBC Form Factor||
|Cooling method / System Fan||Fanless|
|Drive Bays||1 x 2.5” SATA 6Gb/s HDD/SSD bay|
1 x Power button(with LED)
1 x Reset button
1 x AT/ATX switch
1 x Clear CMOS Button
1 x Power LED
1 x HDD LED
|Construction||Extruded aluminum alloy|
|Dimensions||137 x 102.8 x 65.8|
|Operating Temperature||-10°C ~ 50°C with air flow (M.2)|
|Humidity||10% ~ 95% non-condensing|
|Operating Vibration||10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)|
|Operating Shock||Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)|
|Safety & EMC||CE / FCC / UKCA compliant|
|OS Support||Microsoft® Windows® 10/11, Linux|
|uIBX-260-EHL-W10IoT21-E-R10||OS Image with Windows® 10 Enterprise Entry 64-bit 2021 LTSC for uIBX-260-EHL Series, with DVD-ROM, RoHS|
|uIBX-260-EHL-JC-R10||Fanless embedded system with Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W), on board 8GB LPDDR4x memory, 1 x RS-232/422/485, 4 x USB 3.2, 1 x HDMI™, 2 x 2.5GbE Lan, 12V DC, RoHS|
|EMB-WIFI-KIT02I3-R10||2T2R M.2 wifi module kit for embedded system, IEEEE802.11a/b/g/n/ac/ax, 1 x M.2 AE Key Wireless LAN & Bluetooth 5.2;Intel;AX210.NGWG Module, 2 x RF cable , 2 x Antenna; RoHs|
|32205-008000-100-RS||FLAT CABLE;RS-232/422/485;2;250mm;28AWG;(A)D-SUB 9P MALE,BLUE;(B)MOLEX 51021-0900 P=1.25;Wins Precision;C24230217-0;RoHS|
|32001-008600-200-RS||ROUND CABLE;USB CABLE;3;210mm;28AWG;(A)USB A TYPE 4PIN FEMALE *2;(B)DU PONT 2*4P P=2.0 FEMALE;ONE PCS PKG W/ LABEL;WITH 4PCS SCREWS,32000-070301-RS SUBSTITUTE;Wins Precision;RoHS|
