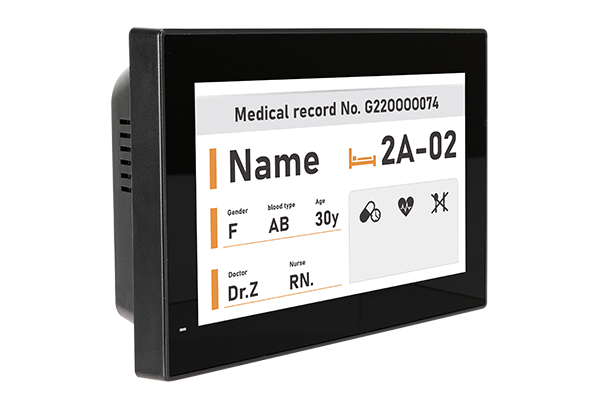

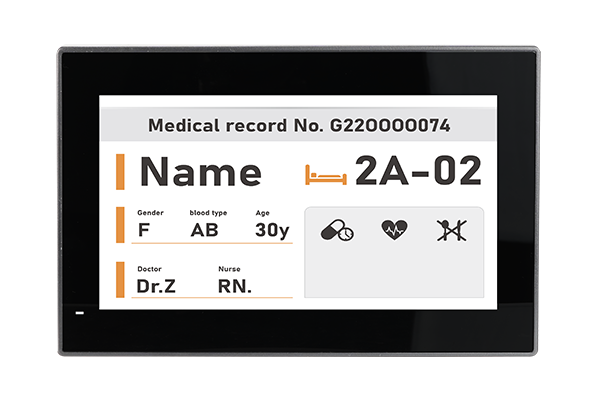

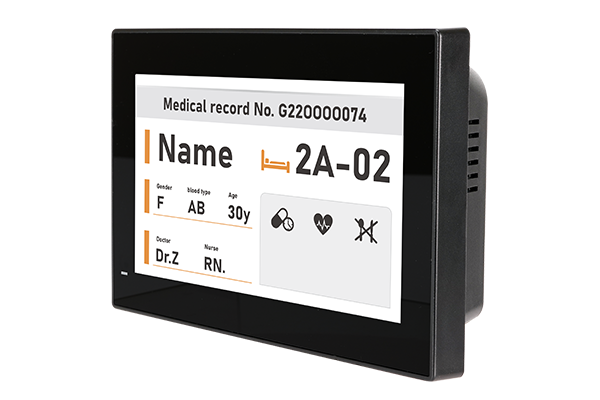

IASO-W07A-N6210
» Intel® Celeron® Processor N6210
» PCAP touch allows multi-touch, multi-layer gloves and water-on-screen operation
» 6 ports USB 3.2 Gen1
Intel® Celeron® Processor N6210
(code name: Elkhart Lake)CPU TDP 6.5W
Either lower power consumption at the same performance, or higher performance at equal TDP
Up to a 1.7x improvement in single-thread performance
Processor performance boost
Up to 2x performance improvement in graphics over previous generation
Doubling graphics speed for immersive experiences
Up to a 1.5x improvement in multi-thread performance generation over generation
Processor performance boost
Bay Trail vs. Elkhart Lake
| Product Name | Previous product version | IASO-W07A-N6210 |
| CPU | N2930 | N6210 |
| Platform | Bay Trail | Elkhart Lake |
| Node | 22 nm | 10 nm |
| Total Cores | 2 | 4 |
| Total Threads | 2 | 4 |
| Processor Base Frequency | 1.83 GHz | 1.20 GHz |
| Integrated Graphics | Intel® HD Graphics for Intel® Atom®Processor Z3700 Series | Intel® UHD Graphics for 10th Gen Intel® Processors |
| TDP | 7.5 W | 6.5 W |
| Max Memory Size | 8 GB | 32 GB |
| Memory Types | DDR3L 1333 | LPDDR4x 8GB (on board) |
| Use Cases | Embedded Broad Market Commercial Temp, PC/Client/Tablet | PC/Client/Tablet |
Memory
10-point P-CAP Touchscreen
6 Ports USB 3.2 Gen 1
Fanless Design
Fanless design known as passive cooling technology not only reduces noise but also prevents the accumulation of debris causing blocked vents, potentially damaging electrical components.
Applications
Bedside card
Data management
Patient room display
Anesthesia Information Solution
This solution prevents manual transcription errors and enables paperless data management can ensure the correctness and safety of medical record, and greatly improve work efficiency, patient safety and medical quality.
Anesthesia Machine
Patient Monitor
Vitals Gateway
- USB barcode
- Key input
- Smart card
- RFID
POCi Series
AIS Server
HIS Anesthesia Oracle DB
Patient Info
- Lab Data
- OP Schedule
- ABG Data
- Medical History
- Physician List
- Anesthesia
Nurse List - TPR Vital Sign
Records - Allergy History
Network Printer
Paper Report
Electronic Anesthesia Record
- √ Anesthesia Record
- √ Billing
- √ Quality Assurance
- √ Controlled Medicine Record (Single Sheet)
- √ Controlled Medicine Record (Report)
POCi Series

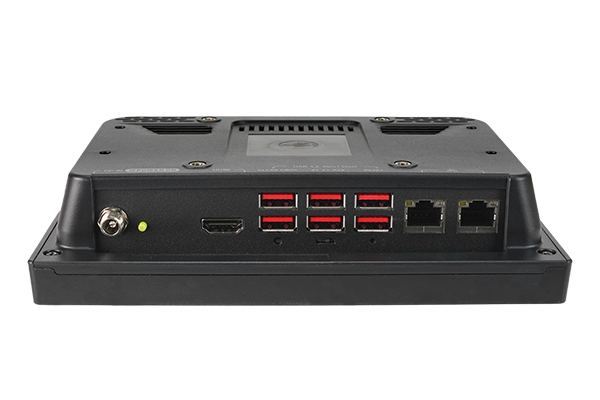

I/O Interfaces
- 112V DC jack
- 2HDMI out
- 36 x USB 3.2 Gen1(Type A)
- 4Power switch
- 5Clear CMOS
- 6AT/ATX switch
- 7Reset button
- 82 x GbE LAN
Dimensions
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 7” |
| LCD Resolution | 1024 x 600 |
| LCD Brightness (cd/m²) | 450 |
| LCD Contrast Ratio | 800:1 |
| LCD Viewing Angle (H-V) | 170˚/170˚ |
| LCD Backlight MTBF | 20000 |
| Touch Screen | PCAP |
| Touch Controller | EETI |
| System | |
| Processor | Intel® Celeron® Processor N6210 |
| Supported OS |
Windows 10 Windows 11 Linux Ubuntu |
| Network | |
| Ethernet Controller | Intel® I225-V |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/ax, Intel® Wi-Fi 6 AX200 |
| Bluetooth | Bluetooth V5.0 |
| Storage | |
| Storage | On-board eMMC 32GB |
| RAM | On-board LPDDR4x 8GB |
| Expansion Slots | |
| Expansion Slots |
1 x M.2 2230 A Key Slot (PCIe + USB) 1 x M.2 2280 M Key Slot (SATA) |
| I/O Interface | |
| Rear I/O |
1 x 12V DC jack 1 x HDMI™ out 1 x Reset switch 1 x Clear CMOS switch 1 x AT/ATX switch 2 x GbE LAN 6 x USB 3.2 Gen1 (Type A) |
| Indicator&Buttons | |
| Buttons | 1 x Power on/off |
| Indicators | Power LED |
| Physical Characteristics | |
| Thermal | Fanless |
| Mounting | VESA 75 x 75 mm |
| Weight (Net) (kg) | 0.72 |
| Weight (Gross) (kg) | 1.65 |
| Dimensions (LxWxH) (mm) | 190.9 x 127.3 x 43.4 |
| Power | |
| Power Adapter | 65W medical grade power adapter |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Humidity | 10% ~ 95% (non-condensing) |
| Vibration | 1G |
| Operating Shock | 5G peak acceleration (11ms duration) |
| Non-operating shock | 15G peak acceleration (11ms duration) |
| Certifications | |
| Safety & EMC | CE, FCC Class B Part18, UL 60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2 |
Ordering Information
| IASO-W07A-N6210-R10 | 7" 450cd/m² medical panel PC with Intel® Elkhart Lake TDP 6.5W Celeron® N6210 on-board processor,on board 8GB LPDDR4X,on-board eMMC 32GB,802.11a/b/g/n/ac/ax Wi-Fi 6 module,PCAP touchscreen,R10 |
|---|
