DRPC-W-EHL

Fanless DIN-Rail Embedded System
Elkhart Lake Intel® Celeron™ Solution (up to 4 cores)

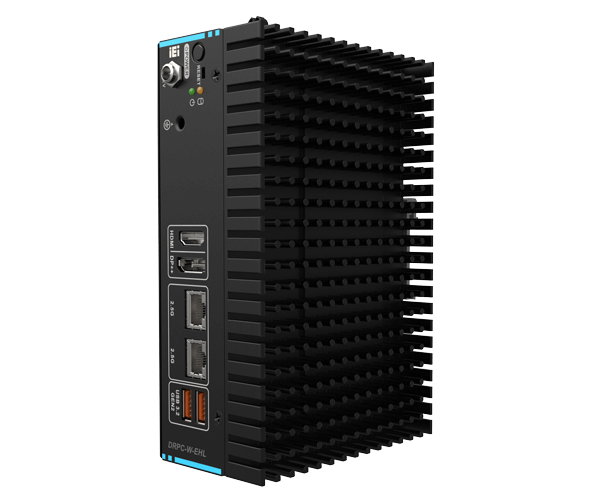

DRPC-W-EHL Fanless DIN-Rail Embedded System with Elkhart Lake Intel® Celeron™ Solution

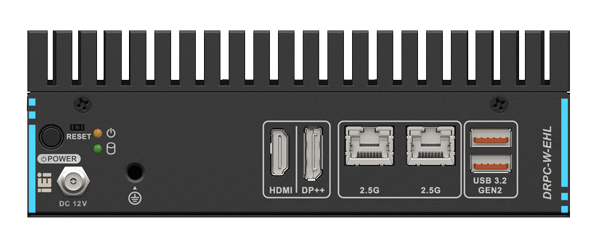

DRPC-W-EHL Fanless DIN-Rail Embedded System with Elkhart Lake Intel® Celeron™ Solution front view

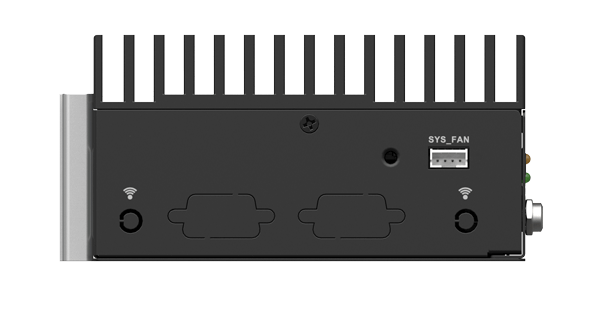

DRPC-W-EHL Fanless DIN-Rail Embedded System with Elkhart Lake Intel® Celeron™ Solution back view

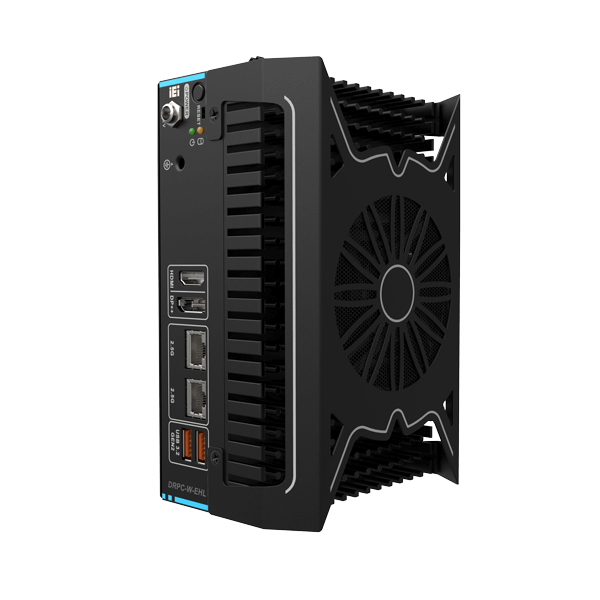

DRPC-W-EHL Fanless DIN-Rail Embedded System with fan

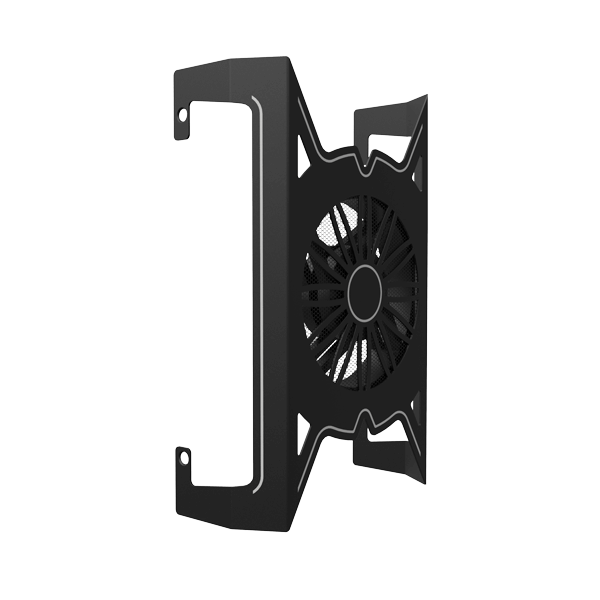

DRPC-W-EHL Fanless DIN-Rail Embedded System with fan kit
  • DRPC-W-EHL Fanless DIN-Rail Embedded System with Elkhart Lake Intel® Celeron™ Solution
  • DRPC-W-EHL Fanless DIN-Rail Embedded System with Elkhart Lake Intel® Celeron™ Solution front view
  • DRPC-W-EHL Fanless DIN-Rail Embedded System with Elkhart Lake Intel® Celeron™ Solution back view
  • DRPC-W-EHL Fanless DIN-Rail Embedded System with fan
  • DRPC-W-EHL Fanless DIN-Rail Embedded System with fan kit
» Supported CPU: Intel® Celeron™ J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
» Support dual independent display
» 2 x 2.5GbE ports
» 1 x M.2 A Key
» 1 x M.2 B Key (with SIM card slot)
» CE/FCC compliant

High Value Fanless DIN-Rail Embedded System

IEI DRPC-W series are compact, DIN-rail mounted embedded systems designed for IEI 3.5" single board computers. Its compact dimensions are appropriate for applications installed with limited space but requiring multiple I/O connectivity and enhanced performance. IEI DRPC-W series are designed to handle communication on the factory floor for IoT gateway, motion and vision applications.

Optimized for Improved Efficiency and Performance with Intel® Celeron® Quad Core J6412 Processor

Designed with 10nm Intel® Celeron® Quad Core J6412 processor and Intel® UHD graphics, the DRPC-W-EHL fanless embedded system offers both excellent performance and energy efficiency. With a 2.0 GHz clock speed and turbo up-to 2.60 GHz, the Intel® Celeron® J6412 Processor powers the core of the DRPC-W-EHL fanless embedded system and offers 2 times performance improvement over the predecessor Apollo Lake.

Optimized Size Saves Cabinet Space

Based on IEI’s industrial-grade 3.5” embedded systems, the DRPC -W series are compact without sacrificing the flexibility in I/O expansion that is often required for IoT scalable sensor connectivity. Moreover, the front-side I/O design is easy for in-cabinet installation.

Switchgear

Automatic
optical
inspection
machine

Wrapping
machine

Telecom
cabinet

Traffic
signal
control
enclosures

Time-to-Market
Customization

The DRPC-W series’ enclosure is designed for 3.5" single board computers. With customizable I/O plates, the DRPC-W series allows customization to satisfy various requirements by using IEI's extensive 3.5" SBCs, WAFER series, offering diverse platform options from low-power to extreme performance. This helps assure an efficient and quick integration for customers' applications.
*Customized by project base

Easy Assembling & Maintenance

With an easy-to-open bottom cover, the DRPC-W series can deliver advantages of quick maintenance and Configure-to-Order Service (CTOS) for customers to reduce potential time to market and cost consumption.

» Fast assembly for all accessories

» Simple steps to open enclosure for maintenance, such as M.2, HDD, memory modules

» Accelerate system integrator's local configure-to-order assembly service for end customers

Scalable Wireless Communication Enables Remote Deployments

The DRPC-W-EHL is built with multiple wireless connectivity options necessary for remote and mobile deployments, which include Bluetooth, WiFi and 4G/LTE that enable connections with a variety of industrial IoT devices.
*Wireless M.2 modules are optional

-20°C ~ 60°C Wide Operating Temperature,
Shock and Vibration Resistance

The DRPC-W-EHL fanless embedded system features a ruggedized chassis which endures strict testing and validation assurance to ensure mission-critical reliability in the most complex edge IoT computing applications. The series has garnered various safety certificaions, including CE, FCC and CB, and can therefore be marketed in countries that observe strict EMC and safety standards.

  • » Wide operating temperature range (-20°C to +60°C)
  • » Half-sine wave shock 5G, 11ms, 3 shocks per axis

-20°C

60°C

Fanless System with Efficient Thermal Design

The DRPC-W-EHL thermal design is optimized for better heat conduction using a pin-fin heatsink concept. This enhances two-dimensional heat conduction and reduces flow impedance for better heat dissipation in this fan-less system. The overall weight is also reduced by 35%. Moreover, the reduced weight enhances system reliability in vibration-sensitive applications, such as AGV, making the DRPC-W-EHL has vastly superior performance to the traditional plate fin heat sink with continuous parallel fins.

Lightweight & Thin Cooling Solution

Advanced High-efficiency Fan Kit Releases Extreme
Computing Power

For computing-intensive applications, users could opt to add an external fan for an active cooling solution maintaining high system performance in high temperature environment. This design also brings high reliability by preventing dust or particles from getting into the hardware, and it is easy to disassemble and clean.

100% CPU Power

Easy Assembly

Silent Operation

Fan Kit P/N:
SF-DRPC-W-R10

Comprehensive I/O Interface

The DRPC-W-EHL is equipped with comprehensive I/O ports, but sometimes you need more connections. The reserved openings for COM ports and antennas maximize deployment flexibility.

Dual Intel® 2.5GbE Ports

The 2.5G on-board Ethernet kicks your Ethernet connection up a notch with an up to 2.5X bandwidth improvement. The DRPC-W-EHL can meet the bandwidth-intensive requirements such as large file transfers and high resolution video streaming, which is ideal for machine vision and AI edge computing applications.

10 Gbps USB 3.2 Gen 2 Ports

With twice of the bandwidth compared to its previous generation, and backwards compatible with USB 2.0 and 3.0, the much improved USB 3.2 protocol accommodates data traffic needs of a variety of peripheral technologies for external storage devices, RAID enclosure, high-resolution digital cameras, webcam, video devices, and all other USB electronic devices.

Dual 4K Display with Immersive Graphics and Media Performance

The DRPC-W-EHL is equipped with Intel® UHD Graphics @450 MHz to display videos and images in stunning 4K resolutions. Among its dual independent display ports, the HDMI™ 1.4 and DisplayPort 1.4 can both support up to 4K high resolution. The DRPC-W-EHL empowers manufacturers to access clearer analysis and management via panel displays or interactive displays in intelligent factories and machine automation processes.

Dual Intel® 2.5GbE Ports

10 Gbps USB 3.2 Gen 2 Ports

Dual 4K Display with Immersive Graphics and Media Performance

The 2.5G on-board Ethernet kicks your Ethernet connection up a notch with an up to 2.5X bandwidth improvement. The DRPC-W-EHL can meet the bandwidth-intensive requirements such as large file transfers and high resolution video streaming, which is ideal for machine vision and AI edge computing applications.

With twice of the bandwidth compared to its previous generation, and backwards compatible with USB 2.0 and 3.0, the much improved USB 3.2 protocol accommodates data traffic needs of a variety of peripheral technologies for external storage devices, RAID enclosure, high-resolution digital cameras, webcam, video devices, and all other USB electronic devices.

The DRPC-W-EHL is equipped with Intel® UHD Graphics @450 MHz to display videos and images in stunning 4K resolutions. Among its dual independent display ports, the HDMI™ 1.4 and DisplayPort 1.4 can both support up to 4K high resolution. The DRPC-W-EHL empowers manufacturers to access clearer analysis and management via panel displays or interactive displays in intelligent factories and machine automation processes.

Industrial Robotic Solution

IEI’s DRPC-W series features optimal IoT integration capability to offer faster connection speed, larger bandwidth, and rich I/O interface to easily connect with PLM, collaborative robotic arms, sensors or control centers through 2.5GbE LAN ports and USB 3.2 Gen 2 ports.

Warehouse Management Solution

IEI’s DRPC-W series features up to three 2.5GbE LAN port to connect with IP cameras for real-time access and storage control, and also rich USB ports for multi-device connection. Moreover, it is designed with flexible expansions to support well communication through 5G, Bluetooth or Wi-Fi modules.

Hardware I/O & Dimensions:

Selection of DRPC-W Total Solution

The DRPC-W is a series of compact DIN-rail embedded system with fanless design developed for entry, middle to high-end 3.5" single board computers, IEI WAFER series.

DRPC-W-JL

    » Intel® Celeron® N5105 processor

    » DIN-rail palm-size for limited space

    » Fanless -20°C ~ 60°C operating temp

    » 3 x 2.5 GbE, 2 x USB 3.2

    » Dual display via HDMI™ & DP

    » 1 x M.2 A key for Wi-Fi & BT

    » 1 x M.2 B key for 5G/NVMe/AI accelerator

DRPC-W-EHL

    » Intel® Celeron® J6412 processor

    » DIN-rail palm-size for limited space

    » Fanless -20°C ~ 60°C operating temp

    » 2 x 2.5 GbE, 2 x USB 3.2

    » Dual display via HDMI™ & DP

    » 1 x M.2 A key 2230 for Wi-Fi & BT

    » 1 x M.2 B key for 5G

DRPC-W-TGL

    » Intel® Core™ i5-1145G7E/Intel® Celeron® 6305 processor

    » DIN-rail palm-size for limited space

    » Fanless -20°C ~ 60°C operating temp

    » 3 x 2.5 GbE, 4 x USB 3.2

    » Triple display via 2 HDMI™ & DP

    » 1 x M.2 A key 2230 for Wi-Fi & BT

    » 1 x M.2 B key for 5G


Hardware Spec.

Form factor
SBC Form Factor
  • Supported CPU:
    Intel® Celeron™ J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
  • Chipset:
    SoC
  • System Memory:
    Onboard LPDDR4X 3200MHz 8G (up to 16GB)
  • Power:
    DC Jack: 12 V DC
  • Consumption: 12V@2.5A (Intel J6412 With 4GB DDR4 Memory)
I/O Interface
I/O Ports
  • USB:
    2 x USB 3.2 Gen 2
  • Ethernet:
    2 x 2.5 GbE by Intel® I225V (colay I225LM)
  • Display:
    1 x HDMI™
    1 x DP
  • TPM:
    Support Intel PTT
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  • M.2:
    1 x M.2 A Key 2230 for WIFI & BT (optional)
    1 x M.2 B Key (PCIe x2) 3042 w/SIM slot for 5G (optional)
System
Cooling method / System Fan Fanless
4-pin external system fan connector
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x Power button
1 x Reset button
Indicators 1 x Power LED
1 x HDD LED
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black
Dimensions
Dimensions 176 x 116 x 60.8 (mm)
Weight
Weight 0.92/1.16 Kg
Environment
Operating Temperature -20°C ~ 60°C with air flow
Humidity 10% ~ 95% non-condensing
Operating Vibration 10-500 Hz,1.04 Grms, random, 1 hr/axis
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis
Safety & EMC CE/FCC compliant
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

DRPC-W-EHL-JC-R10 Fanless System with Intel® Celeron® J6412 up to 2.6GHz TDP 10W, 2 x 2.5GbE Lan, 1 x HDMI™, 1 x DP, 1 x 2.5'' SATA HDD bay, 8GB memory pre-installed, 12V DC, RoHS

Package Contents

Package Content
  • 1 x DIN-rail mounting kit

  • 1 x Screw pack

  • 1 x SATA cable with power cable
