IASO-W10B-N6210

10.1" Medical Panel PC with Intel® Celeron® N6210 processor

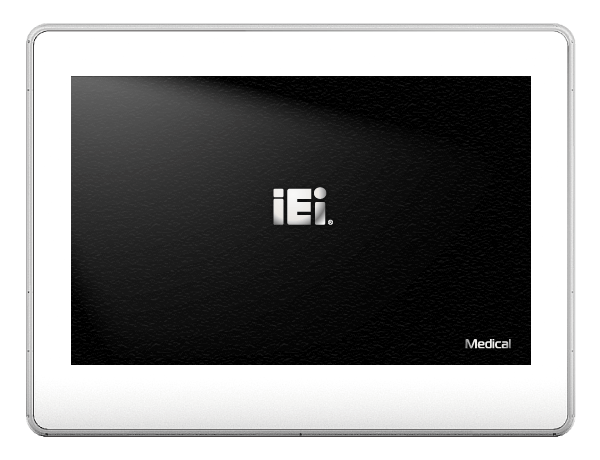

IASO-W10B-N6210 Medical Panel PC
IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-1
IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-2
IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-3
IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-4
IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-5
IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-6
IASO-W10B-N6210 10.1 inch medical panel PC  with Intel® Celeron® N6210 processor-7
  • IASO-W10B-N6210 Medical Panel PC
  • IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-1
  • IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-2
  • IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-3
  • IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-4
  • IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-5
  • IASO-W10B-N6210 10.1 inch medical panel PC with Intel® Celeron® N6210 processor-6
  • IASO-W10B-N6210 10.1 inch medical panel PC  with Intel® Celeron® N6210 processor-7
» Intel® Celeron® Processor N6210
» Programmable LED light bar on both sides
» 10-point PCAP touch with optical bonding
» IEEE 802.3 PoE (optional)
» RFID (NFC) reader (optional)

Hardware Spec.

Form factor
Form factor
  • Intel® Celeron® Processor N6210
  • Programmable LED light bar on both sides
  • 10-point PCAP touch with optical bonding
  • IEEE 802.3 PoE (optional)
  • RFID (NFC) reader (optional)
System
Cooling method / System Fan Fanless
CPU Intel® Celeron® N6210 (Elkhart Lake, 6.5W TDP)
SSD 1 x M.2 2242 M key (PCIe/SATA signal)
Communication
Bluetooth BT v5.0 (M.2 2230 A-E key)
Wi-Fi IEEE 802.11ax 2T2R module (Wi-Fi 6E)
I/O Interface
Ethernet 1 x Intel® I225 Ethernet Controller
Audio AMP 1W + 1W (internal speaker)
RAM 1 x DDR4 SO-DIMM slot
Power
Input 12V DC jack
Class 5 (IEEE802.3bt) PD device w/ full loading taken on I/O
Power adapter 65W medical grade power adapter
Environment
Operating Temperature -20°C – 40°C
Operating Vibration 1G
Operating Shock Operating shock: 5G peak acceleration (11ms duration)
Non-operating shock: 15G peak acceleration (11ms duration)
Safety & EMC CE, FCC Class B Part18
EN 60601-1: 2006/A1:2013 (Edition 3.1)
EN 60601-1-2: 2015 (Edition 4.0)
Humidity 10% – 95% (non-condensing)
Storage Temperature -20°C – 60°C
IP Level Front: IP65
Physical Characteristics
Mounting Wall, Stand and Arm; VESA 75 compliant
Dimensions (LxWxH) (mm) 261 x 196.4 x 40
Net Weight 1.49 kg
Construction Rear cover: ABS+PC plastic (ENH2900)
Construction Front Panel Front: PC
LCD
Size 10.1" (16:10)
Resolution 1280 x 800
Brightness (cd/m2) 400
Contrast Ratio 800:1
LCD Color 16.7M (RGB 6-bit + Hi-FRC)
Pixel Pitch (mm) 0.1695 x 0.1695
Viewing Angle (H-V) 178˚/178˚
Backlight MTBF 30,000 (LED backlight)
Touch
Touch Screen Projected capacitive type with 10-point multi-touch and optical bonding
Touch Controller EETI
Other Features
Audio AMP 1W + 1W (internal speaker)
LED Light Bar 2 x LED light bar
Microphone 1 x Digital microphone
I/O Interface
I/O Interface 1 x AT/ATX Switch
1 x Audio(jack (TRRS))
1 x HDMI(output)
1 x LAN(2.5GbE supporting PoE (with 1.5kV isolation))
1 x Reset Button
1 x RS-232
2 x USB 3.2 Gen1x1(5Gb/s)

Ordering Information

IASO-W10B-N6210/4G-R10 10.1" 400cd/m² medical panel PC with Intel® Elkhart Lake TDP 6.5W Celeron® N6210, one 4GB DDR4 RAM,Wi-Fi 6E module, PCAP touchscreen
IASO-W10B-N6210/4G/PoE-R10 10.1" 400cd/m² medical panel PC with Intel® Elkhart Lake TDP 6.5W Celeron® N6210, one 4GB DDR4 RAM,Wi-Fi 6E module, PCAP touchscreen, IEEE802.3 PoE

Package Contents

Package Content
  • 1 x Power Adapter

  • 1 x Power Cord
