» Intel® Whiskey Lake Core™ i5-8365UE / Intel® Whiskey Lake Celeron™ 4305UE
» Triple GbE LAN Ports
» Multiple USB 3.2 Gen 2 (10Gb/s)
» Multiple COM Ports
» Modularized Flexible Expansion

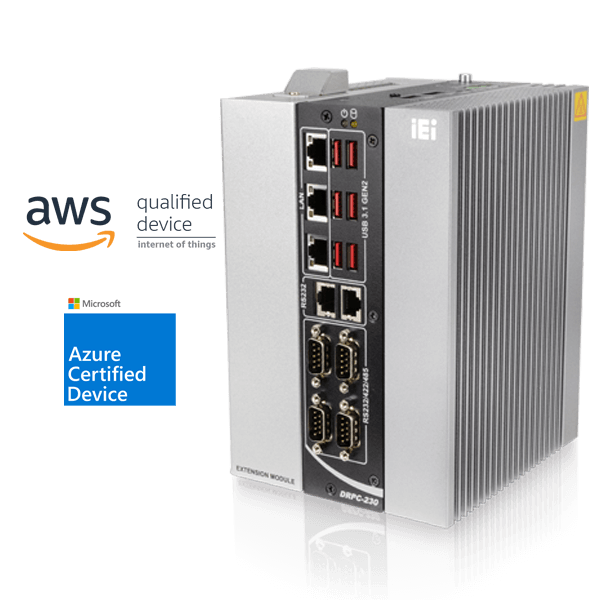

Ultimate Fanless Box PC with Intel® Whiskey Lake

There are many firsts about the DRPC-230-ULT5 compared to its DRPC predecessors. It is the first DIN-rail box PC equipped with high-performance Intel® Whiskey Lake Core™ CPU. It is the first DIN-rail box PC to provide SKU-selectable choices based on budget concern. And it is the first DIN-rail box PC with modularable design that could extend one layer for functional expansion.

Optional Item Selection

With flexibility and convenience – various options await! Build your iconic DRPC-230-ULT5 by choosing functional expasions!

Pursuing Impeccable Operational Performance

Applications

Ordering Information


Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    Intel® Whiskey Lake Core™ i5-8365UE
    Intel® Whiskey Lake Celeron™ 4305UE
  • Chipset:
    SoC
  • System Memory:
    2 x DDR4 2400Hz SO-DIMM (up to 32GB)
  • Power:
    Input : 3-pin terminal block: 12 V ~ 24 V DC
    Consumption: 12V @ 4.98 A (Intel® Core™ i5-8365UE CPU with 8GB 2400 MHz DDR4 memory)
  • Reliability:
    Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27
    Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)
    Safety/EMC - CE/FCC
I/O Interface
I/O Ports
  • 6 x USB 3.2 Gen2 (DRPC-230-ULT5-C/8G/S-R10 has 4 x USB 3.2 Gen2 & 2 x USB 2.0)
  • Ethernet:
    3 x RJ-45
    2 x PCIe GbE by Intel® I211 controller
    1 x PCIe GbE by Intel® I219 controller
  • COM Port:
    4 x RS-232/422/485 with AFC (DB-9)
    2 x RS-232 (RJ45)
  • Digital I/O:
    8-bit digital I/O , 4-bit input / 4-bit
  • Display:
    1 x HDMI 1.4b (lockable)
    1 x DP
  • TPM:
    1 x TPM 2.0 (optional)
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 A key (PCIe/ USB2.0)
    Celeron SKU: 1 x 2230 A key (PCIe)
  • PCIe Mini:
    1 x Full-size (PCIe/ USB 3.0/ SATA)
  • Backplane:
    1 x PCIe by 4
    (Expansion SKU only)
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x Power button
1 x Reset button
1 x AT/ATX switch
Indicators 1 x Power LED
1 x HDD LED
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black + Silver
Dimensions
Dimensions 190 x 150 x 81 mm
190 x 150 x 127 mm (Expansion SKU)
Weight
Weight 2.9KG/ 3.2KG
3.2KG/ 3.5KG (Expansion SKU)
Environment
Operating Temperature -20 ~ 70°C with air flow (SSD)
Humidity 10 ~ 95% non condensing

Ordering Information

DRPC-230-ULT5-i5/8G/S-R10 Fanless embedded system, Intel®Whiskey Lake i5-8365UE 1.6GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP, 3 PCIe GbE, 6 COM, 12~24V DC and RoHS
DRPC-230-ULT5-i5/8G-R10 Fanless embedded system, Intel®Whiskey Lake i5-8365UE 1.6GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP, 3 PCIe GbE, 6 COM, 12~24V DC, PCIex4 extension layer and RoHS
DRPC-230-ULT5-CE/8G/S-R11 Fanless embedded system, Intel® Whiskey Lake Celeron™ 4305UE 2GHz (dual core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP, 3 PCIe GbE LAN, 6 COM, 12~24V DC and RoHS

Package Contents

Package Content
  • 1 x Din-rail mounting kit

  • 1 x Screw kit


Download Specs.
