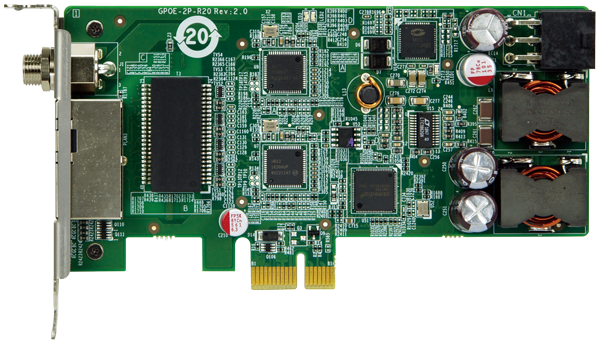

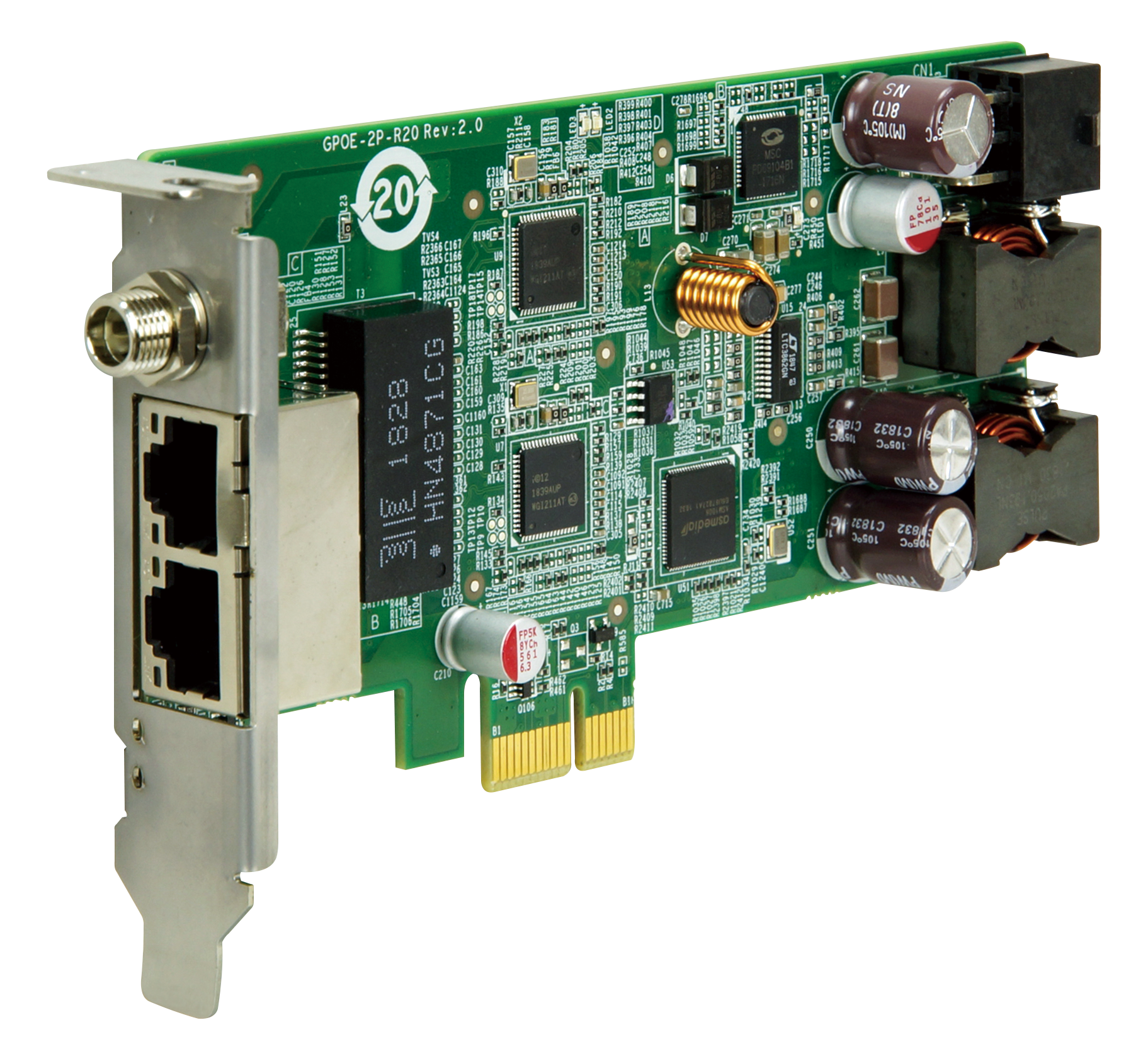

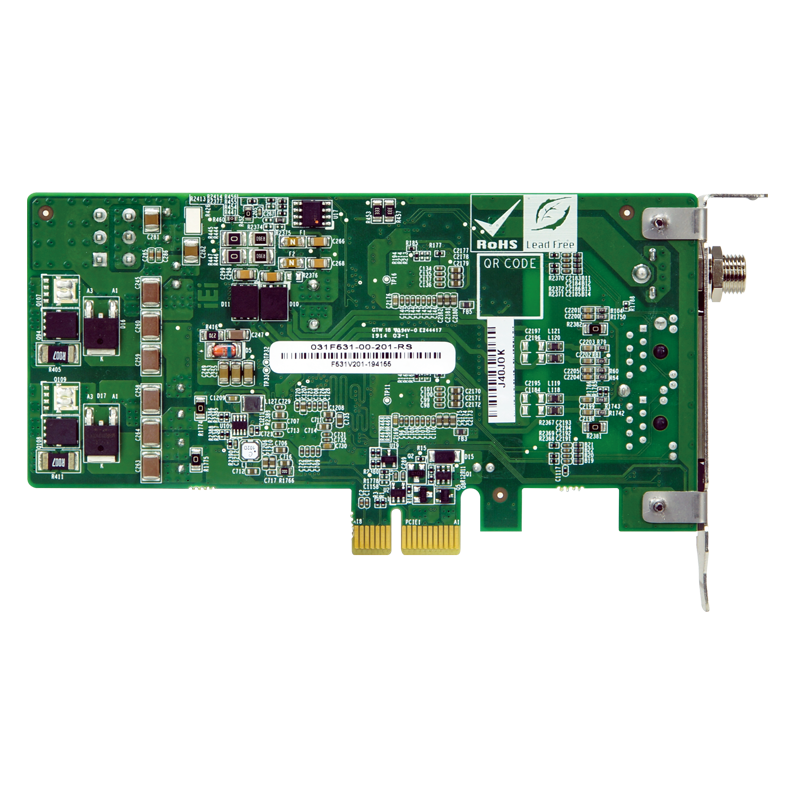

GPOE-2P

PCI Express Power over Ethernet card, 2-port 1000 Base(T), 802.3at compliant, low profile, RoHS

  • Overview

    ● PCI Express® x1 compliant
    ● Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
    ● Support link aggregation/jumbo frames (9 Kbyte)
    ● Supports 12V~24V DC input power
  • Features

    Application

    Machine Vision

    With PoE technology, users can easily connect various PoE PD supported IP camera to the control system through the standard CAT-5/CAT-6 cable (up to 100 meters) to transfer both electrical power and data at the same time. In this application, users can lower the difficulty of routing to avoid the risk of power adapter failure, and easily build the system to act as PSE, allowing the entire production process to be monitored and controlled from A to Z.

    GPOE-machine-vision

    Access Control

    Access control system can be easily developed by connecting PoE-capable devices like door controller, locking system and RFID reader. Combining power supply and data transmission in a single cable can save both cost and time on system installation. It is also easy to integrate IP-based system into the existing IP infrastructure.

    GPOE-accesscontrol

    In-Vehicle System

    The GPOE series can be easily added into in-vehicle control system and connect to various devices like surveillance camera, bus payment terminal or in-bus digital signage system. Both data and electrical power can run on standard CAT-5/CAT-6 cable to lower the difficulty of routing and avoid the risk of power adapter failure.

    GPOE_in-vehicle-system

    Dimension

    GPOE-2P_dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description

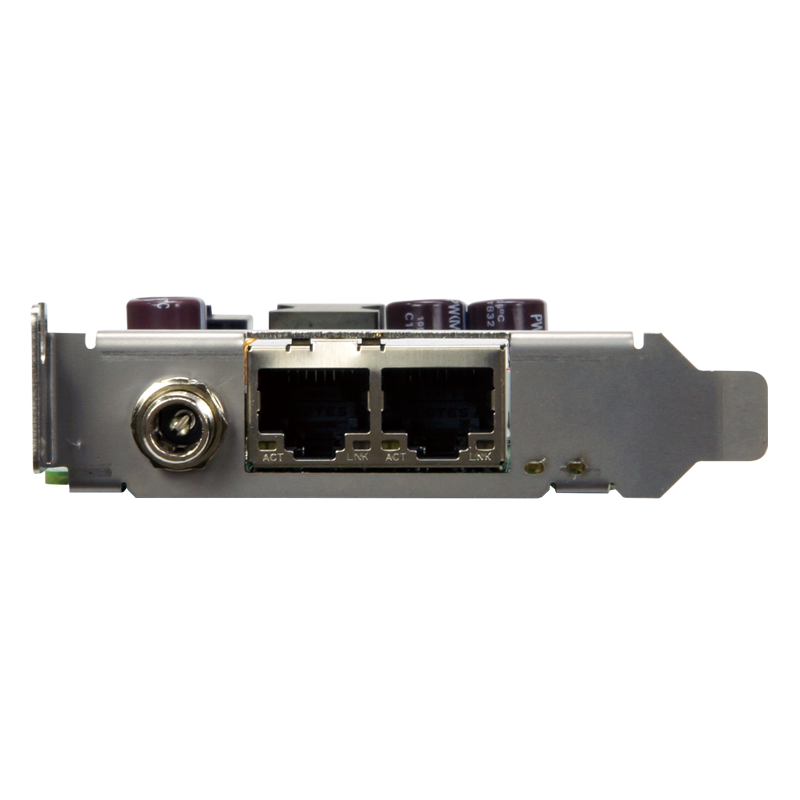

      I/O Interface
      EthernetIntel® I211AT controller
      9kB jumbo frame
      IEEE 802.3az, IEEE1588
      Power
      Input12~24V DC input
      1 x Internal DC input (1x4 pin)
      1 x External DC Jack (Φ2.1/Φ5.5)
      **Caution! Choose one input only at a time
      Environment
      Operating Temperature0°C ~ 60°C
      Humidity5% ~ 95%, non-condensing
      Storage Temperature-10°C ~ 70°C
      Dimensions
      Dimensions160 mm x 65 mm
      Weight
      Weight110g
      Features
      Features1. PCI Express® x1 compliant
      2. Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
      3. Support link aggregation/jumbo frames (9 Kbyte)
      4. Supports 12V~24V DC input power
    • Ordering Info.

      Item No. Description
      GPOE-2P-R20PCI Express Power over Ethernet card, 2-port 1000 Base(T), 802.3at compliant, low profile, RoHS
    • Package Contents

      • 1 x GPOE-2P card

      • 1 x QIG (Quick Installation Guide)
