- Medical Panel PC
- ...
IASO-W08PLED-N6210
» Intel® Celeron® Processor N6210 (code name: Elkhart Lake)
» Fanless system
» Support POE
» On-board eMMC 128GB
» On-board LPDDR4x 8GB

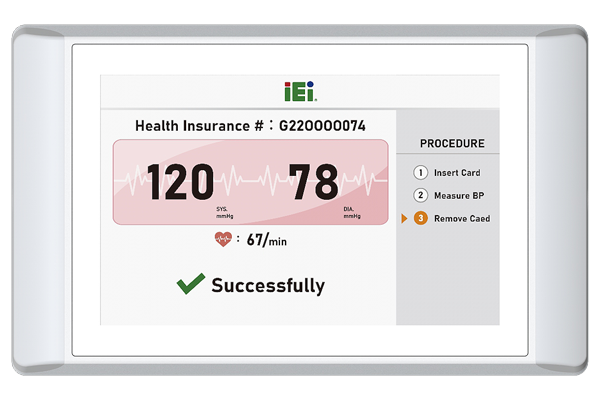

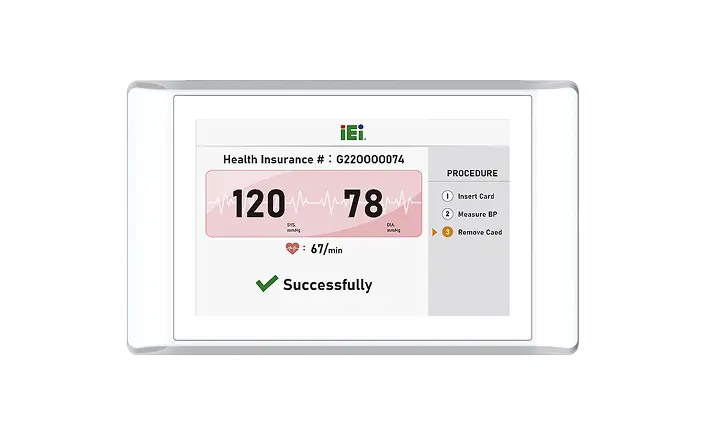

Medical Panel PC
Digital Workflow Replaces Paper, Enhancing Efficiency
The IASO-W08PLED-N6210 is a small size Panel PC that streamlines digitalization. It facilitates medical data transfer, digitizes patient records, reduces manual errors, and enhances efficiency.
With built-in LED light bars, it provides real-time visual indicators for patient needs or device status, improving workflow. Its 10-point touchscreen supports operation with multi-layer gloves, ensuring seamless interaction in medical settings.
IEEE 802.3at
LED light bars on both sides
10-Point touchscreen
eMMC 128G
USB 3.2
Fanless
Wi-Fi 6

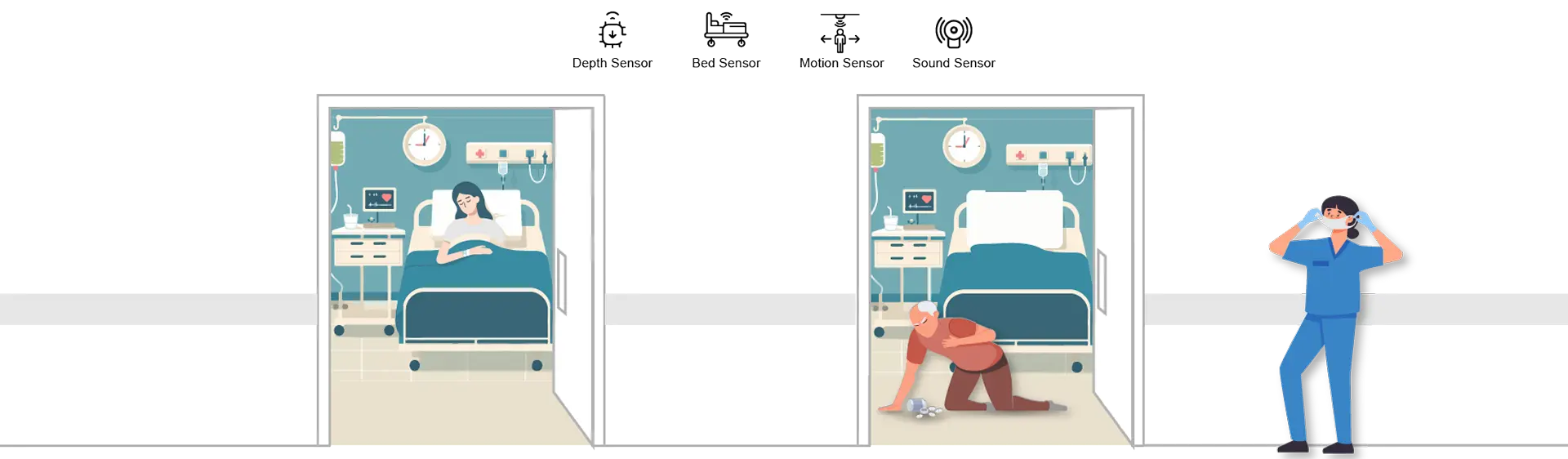

Sensor Reporting

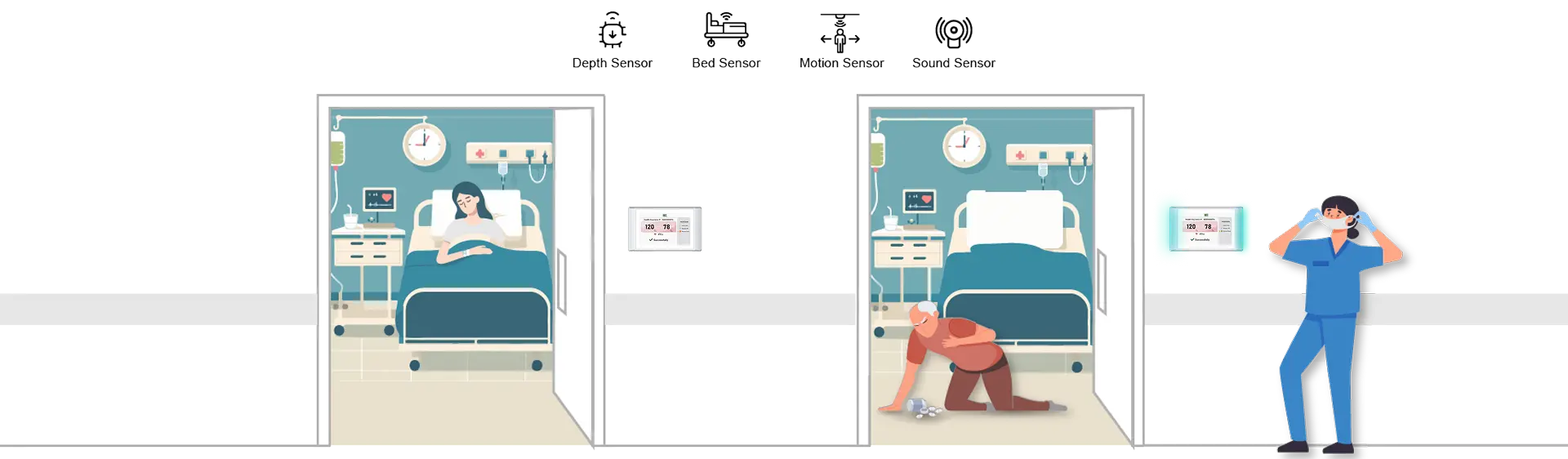

Device Abnormalities, Alerts, and Patient Calls, Monitor patients‘ health,symptomsandfall
Intel® Celeron® N6210 (Elkhart Lake, 6.5W TDP)
●
CPU TDP 6.5W

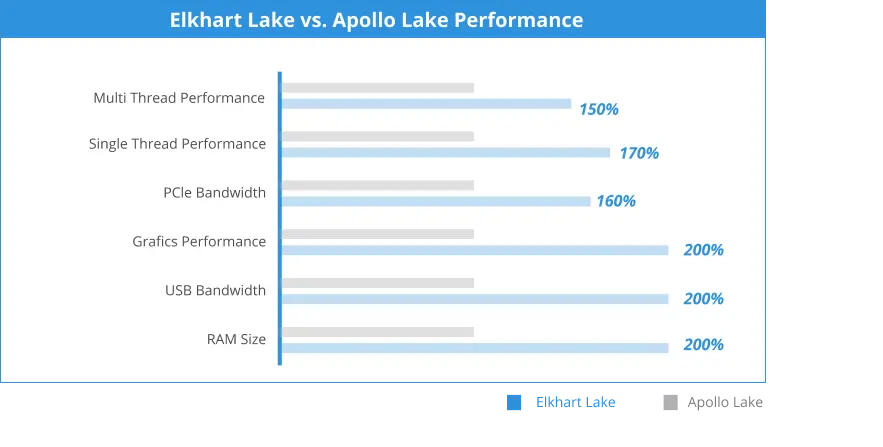

Either lower power consumption at the same performance, or higher performance at equal TDP
●
Up to a 1.7x improvement in single-thread performance
Processor performance boost
●
Up to 2x performance improvement in graphics over previous generation
Doubling graphics speed for immersive experiences
●
Integrated gigabit Ethernet (2.5GbE)
Hard real-time—even via standard Ethernet
●
Up to a 1.5x improvement in multi-thread performance generation over generation
Processor performance boost
Power over Ethernet
Providing efficient power with less cabling for best performance.
IASO-W08PLED-N6210 compliant with IEEE 802.3at Class 4
| Class | PSE Output (W) | PD Input (W) | PoE Type | Standard |
| 0 | 15.4 | 12.95 | 1 | IEEE 802.3af |
| 1 | 4 | 3.84 | 1 | IEEE 802.3af |
| 2 | 7 | 6.49 | 1 | IEEE 802.3af |
| 3 | 15.4 | 12.95 | 1 | IEEE 802.3af |
| 4 | 30 | 25.5 | 2 | IEEE 802.3at |
| 5 | 45 | 40 | 3 | IEEE 802.3at |
| 6 | 60 | 51 | 3 | IEEE 802.3at |
| 7 | 75 | 62 | 4 | IEEE 802.3at |
| 8 | 90 | 73 | 4 | IEEE 802.3at |
PoE Automatic Switching Function
●The PoE design in the IASO-W08PLED-N6210 eliminates the need for additional cables or modules.

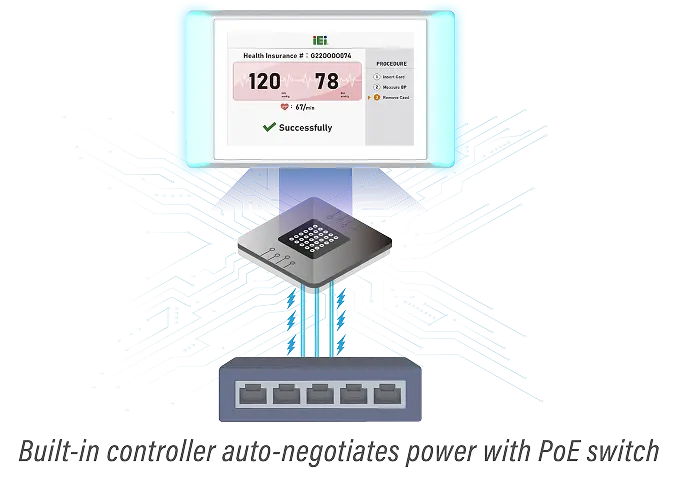

●The PoE function is integrated into the motherboard to provide stable, interference-free signal quality. When the PoE switch has specific low-power requirements, the IASO-W08PLED-N6210 communicates with the PoE switch to supply the necessary power, allowing the device to automatically adjust its power consumption for stable operation.

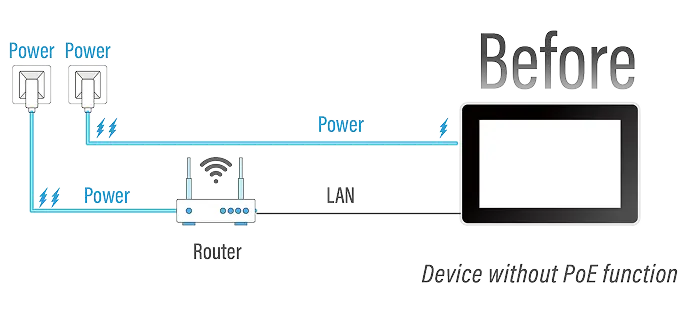

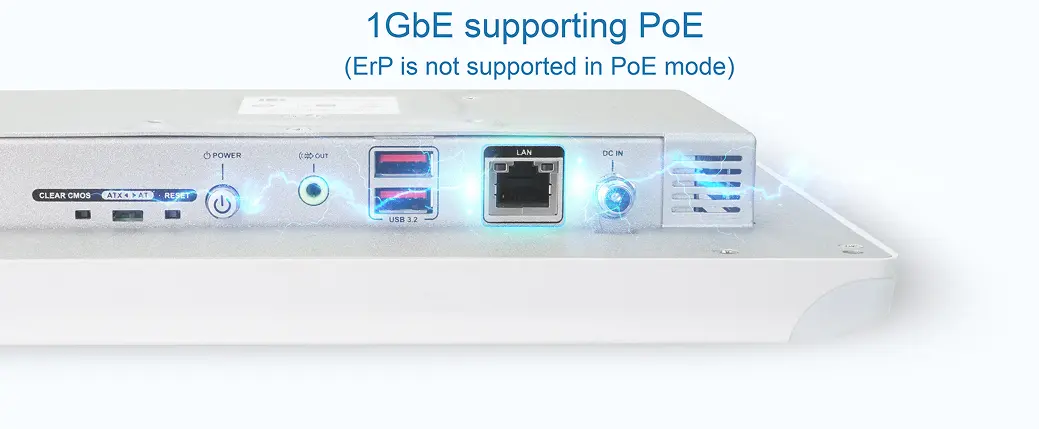

Save Space by Using a Single Cable

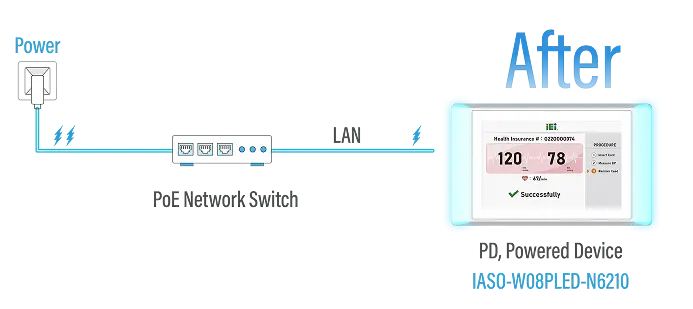

PoE of the device provides both data and power over a single Ethernet cable
Instantly Recognizable Large Programmable LED Bar

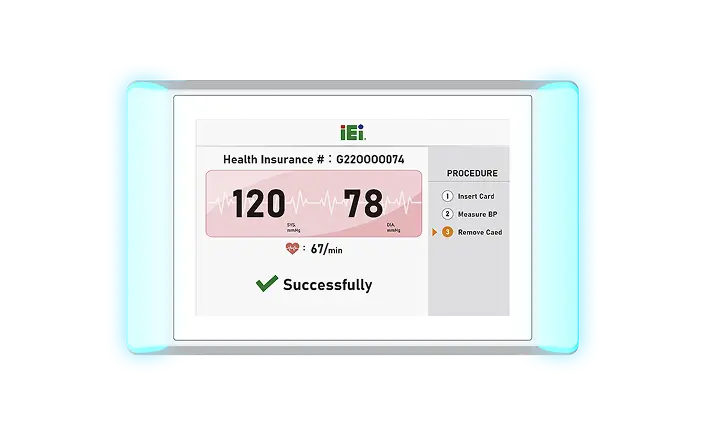

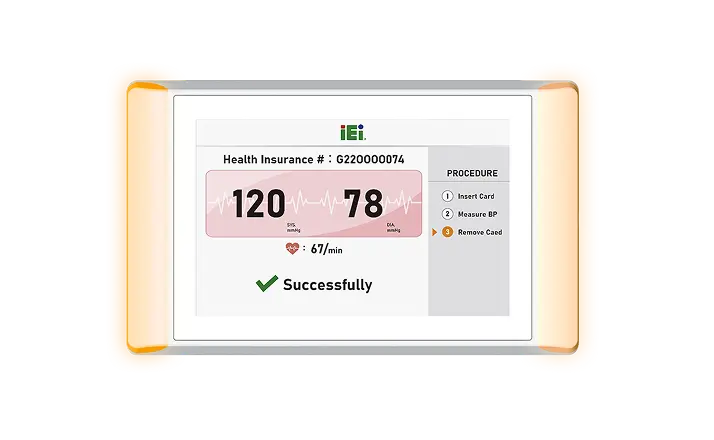

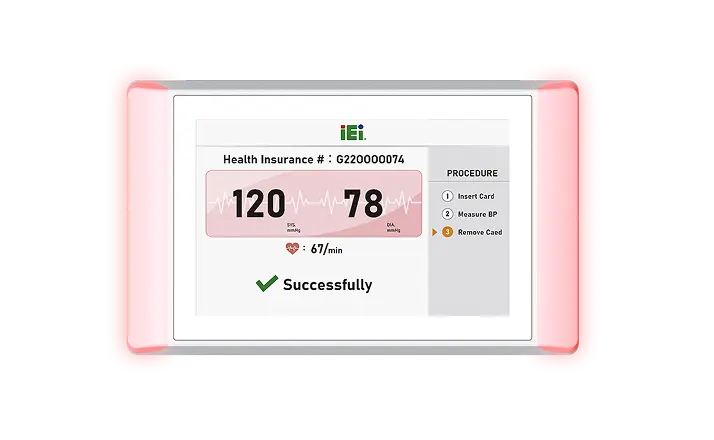

●Bright and simple outlook with programmable LED lights on both sides.
●The colorful light and display can be adjusted according to use conditions.
●It can be used to detect the status light signal, or to warn the ward aisle.
●Each light bar has 10 programmable RGB LEDs meets IEC62471 certification.
●The front frame is made of translucent material to make the frame light and thin.

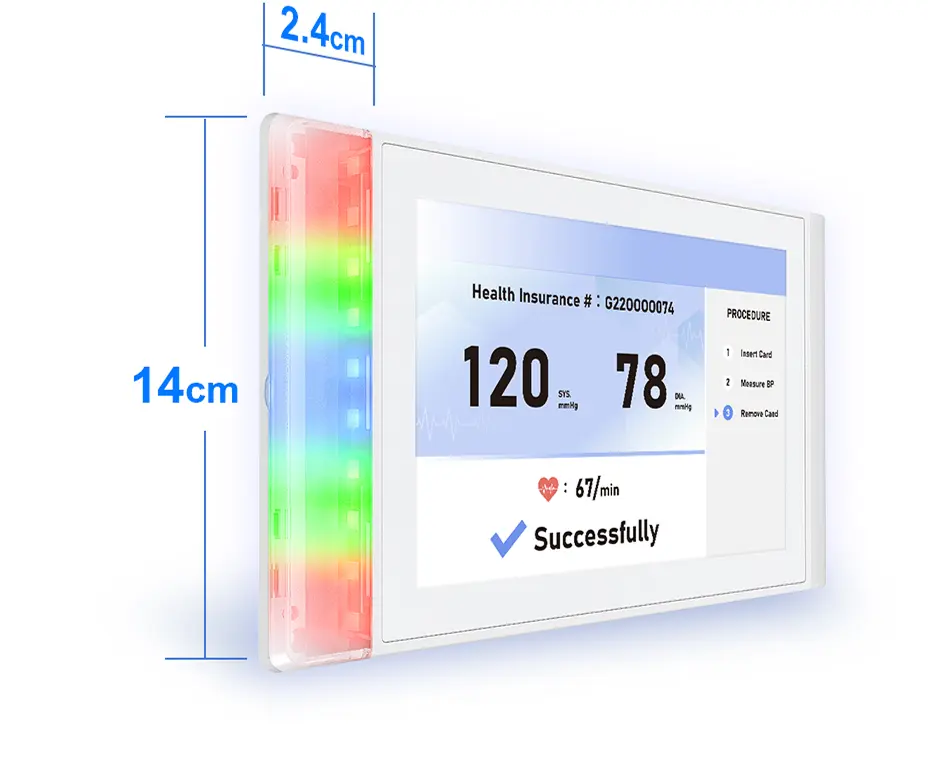

●14x2.4cm Larger LED light bar for faster color recognition and clearer notifications.
Color Codes for Safety Signs
IEC60601-1-8 is a standard that provides general requirements, tests and guidance for alarm systems in medical electrical equipment and medical electrical systems.
ANSI Z535.1-2017 is a standard that describes the color codes that can be used on accident prevention signs, labels, and tags. This also includes the marking and location of first aid equipment, fire extinguisher s, trip/slip hazards, and other potential hazards or safety equipment.
Red
Orange
Yellow
Green
Blue
Purple
Gray
IEC60601-1-8
Flashing
High priority alarm condition: Immediate action to prevent injury.
Not flashing
Warning: Avoidance of a HAZARDOUS SITUATION which could cause death or serious injury.
IEC60601-1-8
Flashing
High priority alarm condition: Immediate action to prevent injury.
Not flashing
Warning: Avoidance of a HAZARDOUS SITUATION which could cause death or serious injury.
IEC60601-1-8
The significance of this color may be defined by the end-user.
ANSI Z535.1-2017
Signs and equipment designating dangerous or energized machines / equipment. (PMS 151)
IEC60601-1-8
Flashing
Medium priority alarm condition: Prompt action to prevent injury.
Not flashing
Caution: Avoidance of a HAZARDOUS SITUATION which could cause minor or moderate injury or equipment damage.
ANSI Z535.1-2017
Specific physical hazards (including falling, tripping and striking) and designating caution (including cabinets, cans and containers for explosives, corrosives or unstable materials). (PMS 109)
IEC60601-1-8
Ready for use
ANSI Z535.1-2017
Safety information and first aid or safety equipment. (PMS 335)
IEC60601-1-8
The significance of this color may be defined by the end-user.
ANSI Z535.1-2017
Information not immediately safety-related (i.e. property policies including safety gear requirements). (PMS 285)
IEC60601-1-8
The significance of this color may be defined by the end-user.
ANSI Z535.1-2017
The significance of purple may be defined by the end-user, but purple (or the combination of purple and yellow) has become the de facto standard for radiation hazards. (PMS 259)
IEC60601-1-8
The significance of this color may be defined by the end-user.
ANSI Z535.1-2017
The significance of this color may be defined by the end-user

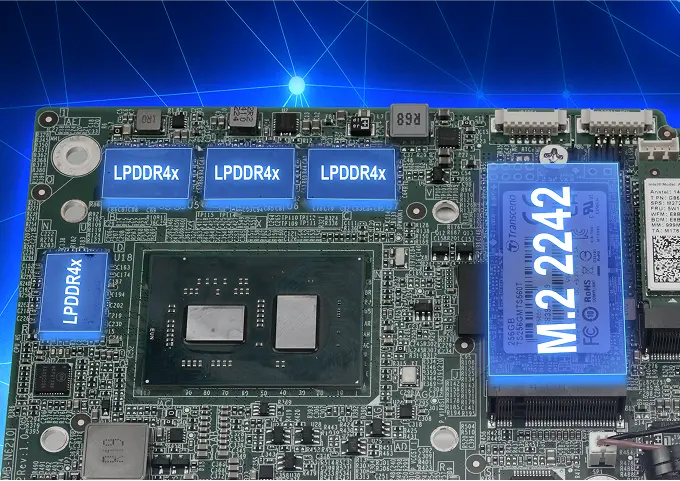

M.2 2242 SSD with LPDDR4x Memory Optimizing Power Efficiency
Maximize Storage for Your Medical Imaging Needs
The M.2 2242 SSD offers a compact yet high-performance storage solution, supporting PCIe interfaces for enhanced speed and flexibility. Using LPDDR4x memory, which offers lower power consumption and faster data processing, this combination ensures smooth multitasking and improved system efficiency.
Built-in 128GB eMMC for Reliable Storage
It is ideal for demanding applications and is highly reliable. Considering its size, eMMC is capable of handling extremely large amounts of data in such a small footprint.
Durability
Cost Effectiveness
Ease of Integration
Discreet In-Wall Deployment
▪Easy maintenance - just removing five screws for disassembly
▪IASO-W08PLED-N6210 can be embedded in or on the wall.
NOTE: To avoid damage, do not install the IASO-W08PLED-N6210 in a fully sealed space.
NOTE: The accessory shown is for illustration purposes only. For ordering information, please contact your sales representative.

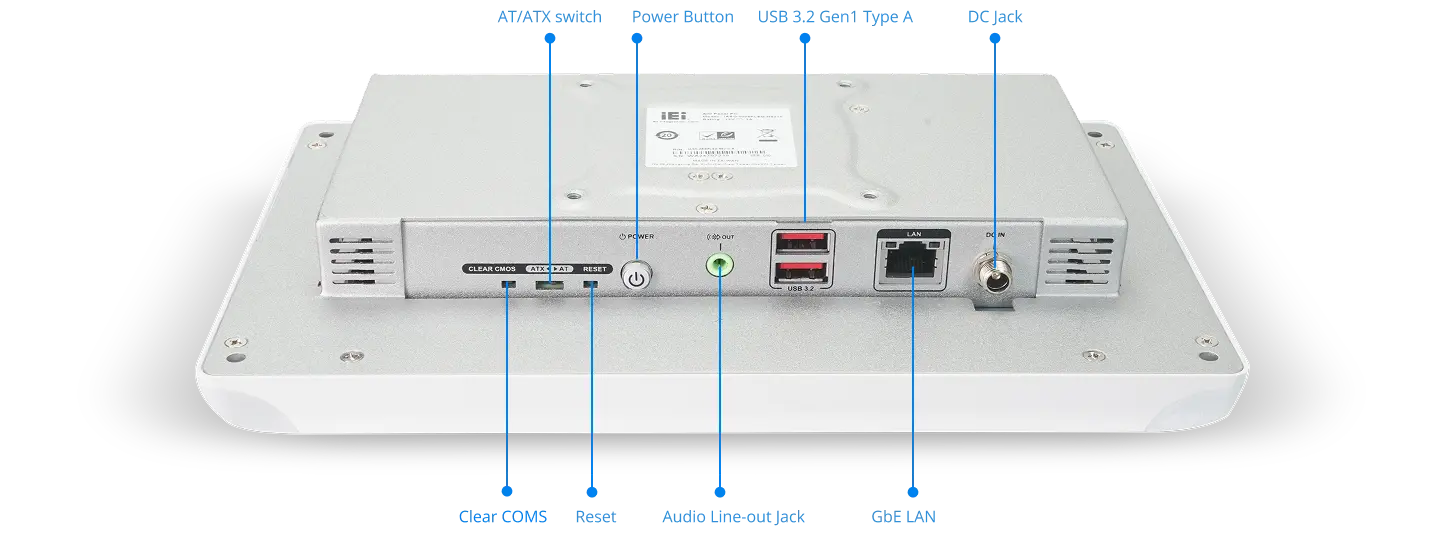

I/O Interface
Dimensions
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 8＂ |
| LCD Resolution | 1280 x 800 |
| LCD Brightness (cd/m²) | 350 |
| LCD Contrast Ratio | 800:1 |
| LCD Color | 16.7M |
| LCD Pixel Pitch (mm) | 0.13455 x 0.13455 |
| LCD Viewing Angle (H-V) | 170˚/170˚ |
| LCD Backlight MTBF | 15000 |
| Touch Screen | P-CAP with multi-touch |
| Touch Controller | ILI |
| Touch Surface Hardness | 6H |
| System | |
| Processor | Intel® Celeron® Processor N6210 |
| Supported OS | Windows 11; Linux Ubuntu |
| Network | |
| Ethernet Controller | Intel® I226-V |
| Wi-Fi | IEEE 802.11 a/b/g/n/ax, Intel® Wi-Fi 6E AX210 (optional) |
| Bluetooth | Bluetooth® v5.2 (optional) |
| Storage | |
| Storage | On-board eMMC 128GB |
| RAM | On-board LPDDR4x 8GB |
| Expansion Slots | |
| Expansion Slots |
1 x M.2 2230 A Key Slot (PCIe + USB) 1 x M.2 2242 M Key Slot (default SATA; PCIe) |
| Audio | |
| Audio | 1 x Audio line-out jack |
| Speaker | 1 x 1.5W speaker |
| I/O Interface | |
| Rear I/O |
1 x 12V DC jack 1 x GbE LAN 2 x USB 3.2 Gen1 Type A |
| Indicator&Buttons | |
| Buttons |
1 x Power button 1 x Reset 1 x Clear COMS 1 x AT/ATX switch |
| Indicators |
1 x Power LED 2 x Programmable RGB LED light bars (on both sides) |
| Physical Characteristics | |
| Color | White |
| Thermal | Fanless |
| Construction Material |
Front: PC Rear cover: ABS+PC |
| Mounting | VESA 75 x 75 mm |
| Weight (Net) (kg) | 1 |
| Weight (Gross) (kg) | 2.535 |
| Dimensions (LxWxH) (mm) | 250.1 x 152.1 x 39.7 |
| Power | |
| PoE |
IEEE 802.3af (Class 3) 12.95W IEEE 802.3at (Class 4) 12.5W |
| Power Adapter | 35W power adapter |
| Environment | |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | -20°C – 60°C |
| Humidity | 10% – 95% (non-condensing) |
| Vibration | 1G |
| Operating Shock | 5G peak acceleration (11ms duration) |
| Non-operating shock | 15G peak acceleration (11ms duration) |
| Certifications | |
| Safety & EMC | CE, IEC 62368-1, FCC Part 15 Class B |
Ordering Information
| IASO-W08PLED-N6210-R10 | 8" medical panel PC with Intel® Celeron® N6210 (code name: Elkhart Lake, TDP 6.5W), P-CAP touchscreen, on-board LPDDR4x 8GB RAM, on-board eMMC 128GB, IEEE802.3 PoE, R10, RoHS |
|---|
