Half-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium®, Celeron® CPU with Q470/Q470E, DDR4 SO-DIMM, HDMI™, Dual Intel® 2.5GbE, USB 3.2 Gen2, SATA 6Gb/s, M.2, IAUDIO, and RoHs
CPU: LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor Chipset:Intel® Q470/Q470E
CPU: LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor Chipset:Intel® Q470/Q470E
2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G
2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G
One display output 1 x HDMI 1.4 (up to 4096 x 2160@30Hz)
One display output 1 x HDMI 1.4 (up to 4096 x 2160@30Hz)
● External I/O Interface 2 x USB 3.2 Gen1 (5Gb/s) 1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C ● Internal I/O Interface 2 x SATA 6Gb/s (Support RAID 0/1 ) 2 x USB 2.0 (2x4 pin, P=2.0) 2 x RS-232/422/485 (2x5 pin, P=2.0) (RS-485 support AFC)
● External I/O Interface 2 x USB 3.2 Gen1 (5Gb/s) 1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C ● Internal I/O Interface 2 x SATA 6Gb/s (Support RAID 0/1 ) 2 x USB 2.0 (2x4 pin, P=2.0) 2 x RS-232/422/485 (2x5 pin, P=2.0) (RS-485 support AFC)
16-lanes PCIe signal from CPU via golden finger (supports x16, or x8 + x8, or x4 + x4 + x8) 4-lanes PCIe signal from PCH via golden finger (supports x4, or x1 + x1 + x1 + x1) 1 x M.2 A key (2230) with PCIe Gen3 x2/USB 2.0 1 x M.2 M key (2280/2242) with PCIe Gen3 x4
16-lanes PCIe signal from CPU via golden finger (supports x16, or x8 + x8, or x4 + x4 + x8) 4-lanes PCIe signal from PCH via golden finger (supports x4, or x1 + x1 + x1 + x1) 1 x M.2 A key (2230) with PCIe Gen3 x2/USB 2.0 1 x M.2 M key (2280/2242) with PCIe Gen3 x4
Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA
On Board
On Board
One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM (system max. 8GB)
One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM (system max. 8GB)
Dual independent display VGA (up to 2560x1600@60Hz) 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 20x1200@60Hz)
Dual independent display VGA (up to 2560x1600@60Hz) 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 20x1200@60Hz)
1 x I²C 2 x Internal RS-232 1 x Internal RS-422/485 5 x Internal USB 2.0 1 x KB/MS 2 x LAN LED 1 x LPT 1 x SMBus 1 x USB 2.0 1 x USB 3.0 1 x VGA
1 x I²C 2 x Internal RS-232 1 x Internal RS-422/485 5 x Internal USB 2.0 1 x KB/MS 2 x LAN LED 1 x LPT 1 x SMBus 1 x USB 2.0 1 x USB 3.0 1 x VGA

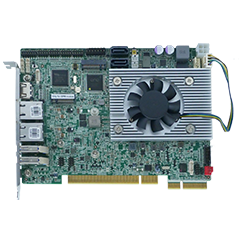

Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
LPDDR4x-3200Gbps 8GB, up to 16GB
LPDDR4x-3200Gbps 8GB, up to 16GB
● Dual independent displays 1 x HDMI™ 1.4 (up to 4096 x 2160 @30Hz) 1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● Dual independent displays 1 x HDMI™ 1.4 (up to 4096 x 2160 @30Hz) 1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● External I/O Interface: 2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s) ● Internal I/O Interface: 2 x SATA 6Gb/s with 5V SATA power connector 4 x USB 2.0 (2x4 pin, P=2.0) 2 x RS-232 (2x5 pin, P=2.0) 2 x RS-232/422/485 (2x5 pin, P=2.0)
● External I/O Interface: 2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s) ● Internal I/O Interface: 2 x SATA 6Gb/s with 5V SATA power connector 4 x USB 2.0 (2x4 pin, P=2.0) 2 x RS-232 (2x5 pin, P=2.0) 2 x RS-232/422/485 (2x5 pin, P=2.0)
1 x M.2 M Key (2242/2280, PCIe x2) 1 x PCIe x4 slot (1 x PCIe x4 or 4 x PCIe x1) 4 x PCI slot
1 x M.2 M Key (2242/2280, PCIe x2) 1 x PCIe x4 slot (1 x PCIe x4 or 4 x PCIe x1) 4 x PCI slot
