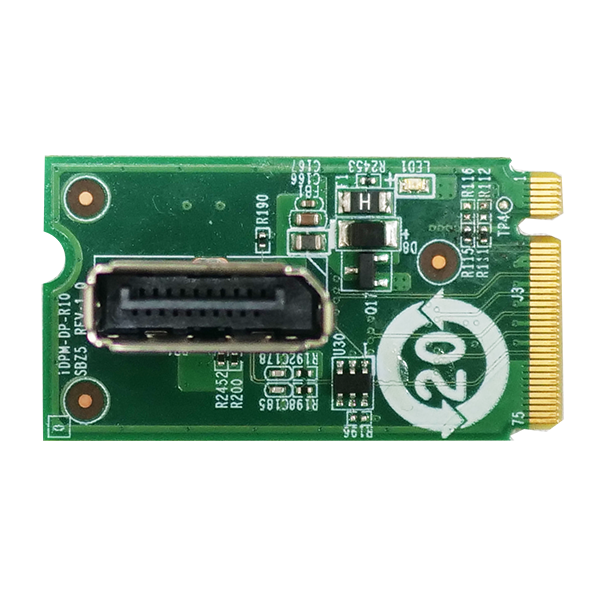

» DisplayPort output
» Resolution support up to DP1.4 4K 60Hz (Max: 4096 x 2304)
» Supports iEi iDPM interface only
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | iDPM 2240 slot (IEI-defined B key) |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 40 x 22 |
| I/O Interface | |
|---|---|
| Display Output | 1 x eDP : 1 x 40 pin |
| Power | |
|---|---|
| Power Supply | On board 3.3V ~ 12V |
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 60°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
|---|---|
| Safety & EMC | CE/FCC compliant |
