PPC2-C104-ADLP

10.4” Fanless Panel PC with Intel® Alder Lake P Processor

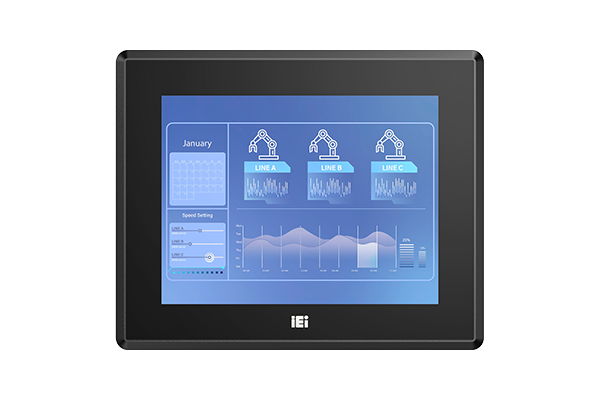

PPC2-C104-ADLP  Front
PPC2-C104-ADLP Right
PPC2-C104-ADLP Left
PPC2-ADL Series IO
  • PPC2-C104-ADLP  Front
  • PPC2-C104-ADLP Right
  • PPC2-C104-ADLP Left
  • PPC2-ADL Series IO
» 12th Gen Intel® Core™ Mobile i7/i5/i3 Processors
» PCAP with USB interface (anti-UV/AG coating)
» Dual M.2 (M.2 M Key) support
» Newly Designed Panel Mount Kit
» Support Gloved and Wet Hand Operation

Hardware Spec.

System
CPU 12th Genertion Intel® Alder Lake-P Core™ i7/i5/i3 Processor
Memory Ext. Dual channel On board LPDDR4x 8G
I/O Interface
Ethernet LAN1: Intel® I225V/I226V 2.5GbE controller
LAN2: Intel® I225-LM/I226-LM 2.5GbE controller (Intel AMT)
Expansion 1 x M.2 M key 2242 (PCIe Gen4 x4)
1 x M.2 M key 2280 (PCIe Gen4 x4)
1 x M.2 E key 2230 (PCIe + USB signal)
Power
Input 12V DC
Power adapter 84W Power adapter
Environment
Operating Temperature -10ºC ~ 50ºC
Safety & EMC CE/EMC, FCC, UKCA
Humidity 10% ~ 95%@40°C, non-condensing
Storage Temperature -20°C ~ 70°C
IP Level Front panel IP65
Physical Characteristics
Color Black
Mounting VESA 100, Panel, Wall, Rack, Stand and Arm
Construction Aluminum die casting + SECC
LCD
Size 10.4” (4:3)
Resolution 800 (W) x 600 (H)
Brightness (cd/m2) 400 cd/m²
Contrast Ratio 700:1
LCD Color 16.2M
Pixel Pitch (mm) 0.264 x 0.264
Viewing Angle (H-V) 160°/140°
Backlight MTBF 30,000 hours
Touch
Touch Screen PCAP with USB interface (anti-UV/AG coating)
Touch Controller EETI EXC 81 Series
Other Features
System Cooling Fanless
TPM Intel® Platform Trust Technology
I/O Interface
I/O Interface 2 x RS-232 (by DB9)
2 x RS-232/422/485 (by DB9)
1 x USB 2.0
2 x USB 3.2 Gen1x1
1 x HDMI™
2 x LAN (2.5GbE)
1 x DC Input Jack (12V)
1 x Reset Button
1 x AT/ATX switch
2 x USB 3.2 Gen2
OS Support
OS Support Windows 10/11 IoT, Linux

Ordering Information

PPC2-C104-ADLP-i7/8G-R10 10.4" 400cd/m² 800x600 Fanless Panel PC with 12th Generation Intel® Core™ i7-1260P Processor,8GB LPDDR4 on-board, PCAP touch,12V DC,R10
PPC2-C104-ADLP-i5/8G-R10 10.4" 400cd/m² 800x600 Fanless Panel PC with 12th Generation Intel® Core™ i5-1240P Processor,8GB LPDDR4 on-board, PCAP touch,12V DC,R10
PPC2-C104-ADLP-i3/8G-R10 10.4" 400cd/m² 800 x 600 Fanless Panel PC with 12th Generation Intel® Core™ i3-1220P on-board Processor,TDP 28W,8GB LPDDR4x on-board, PCAP touch,12V DC,R10

Package Contents

Package Content
  • 1 x PPC2-C104-ADLP

  • 1 x Power Cord

  • 1 x Power Adapter

  • 1 x Panel Mount Kit

  • 1 x QIG

  • 1 x Screw Pack
