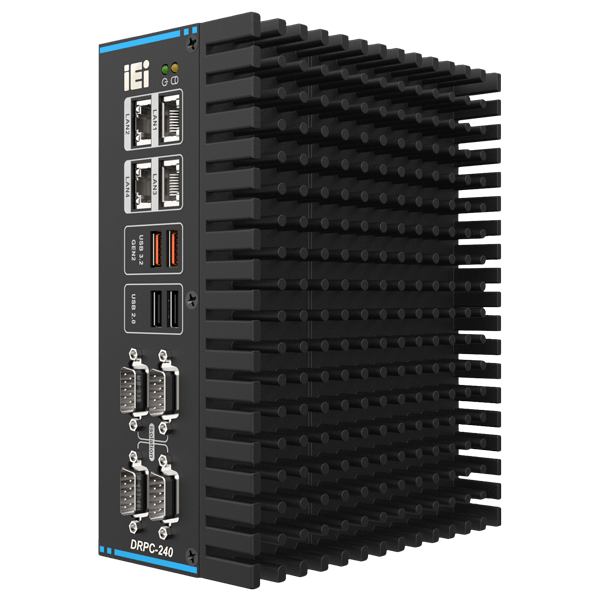

DRPC-240-TGL-U

Fanless DIN-Rail Embedded System with Tiger Lake 11 th Gen Intel® Core™ Solution (up to 4 cores)

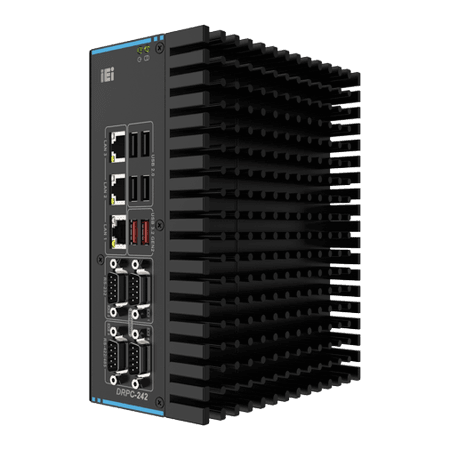

DRPC-240-TGL-U Din-rail Embedded System
  • DRPC-240-TGL-U Din-rail Embedded System
» Supported CPUs:
Intel® Celeron® 6305/6305E 1.8 GHz (dual-core, 15W TDP)
Intel® Core™ i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad-core, 15W TDP)
Intel® Core™ i7-1185G7E 1.8 GHz (up to 4.4 GHz, quad-core, 15W TDP)
» 4 x 2.5GbE ports, supporting PoE (optional)
» 2 x RS-232 & 2 x RS-422/485 (with 2.5kV isolation)
» CE/FCC compliant

Powerful yet Compact

High Performance Fanless Modular DIN-Rail PC

installing an expansion layer to the DRPC-240 via PCI Express slot

The DRPC-240 is a modular embedded computer for flexible configuration according to specific usage requirements and designed for performance-intensive and space-critical applications. Moreover, the fanless DIN-rail PC mounted 11th Gen Intel® Core mobile processor with 8GB of pre-installed memory and Intel iRIS® Xe graphics delivers great performance.

This device's modular configuration enables users to insert an AI accelerator card or add-on card via a PCIe x4 slot, thus improving edge computation results. In addition, the DRPC-240 can operate in a wide range of temperatures, from -20 to 60 degrees Celsius (-4 to 140 degrees Fahrenheit), and meet IEEE802.3af standard with quad 2.5GbE ports and 15W power output per port at the distance of 100 meters. This makes it ideal for use in factory automation, warehouse management, transportation, and other robust operational environments.

15W power output Operating in a wide range of temperatures PCIe x4 slot The fanless DIN-rail PC 11th Gen Intel® Core mobile processor with 8GB of pre-installed memory and Intel iRIS® Xe graphics

11th Gen. Intel® Core™ Processors Optimize AI Inference and
Machine Vision Application

The DRPC-240 is powered by 11th Gen Intel® Core™ i7/i5 and Intel® Celeron® processors for blazing fast performance. The 11th Gen Intel® Core™ processor is up to 23% faster single-thread performance and up to 19% faster multi-thread performance than its prior generation for smoother handling of intensive computing tasks. Intel® iRIS® Xe graphics is integrated to offer great GPU computing capability with up to 96EUs and 2.95 times faster graphics performance. IEI’s DRPC-240 delivers high computing performance to machine vision, and AI applications.

DRPC-240 with Intel Core i5 and Core i7 logo to show its supported processors

Up to 23% overall performance improvement

CPU benchmark bar diagram of Intel Core i5 and Core i7 processors supported by DRPC-240 embedded system
CPU benchmark bar diagram of Intel Core i5 and Core i7 processors supported by DRPC-240 embedded system

Stackable, Modular PCIe x4 Design for Added Functionality

Adding an optional second stack expansion kit, TXC-DRPC-240-1S-R10, enables the DRPC-240 to have flexible functionality for installing a variety of PCIe x4 add-on cards, such as high density I/O cards, vision cards, motion cards and AI accelerators, according to specific application requirements via simple and reliable board-to-board connections.

Optimized DRPC-240

Optimized

DRPC-240

Universal DRPC-240

Universal

DRPC-240

Versatile, Space-Saving Design for Installation Flexibility

IEI DRPC-240 measures just 19 x 15 x 8 cm, so it takes up very little room to help you maintain a clutter-free workspace. Its DIN-rail mounting support enables the system to be used across a space-critical industries and workplace environments. With compact size and rubber foot pads provided, the DRPC-240 is also perfect for set-top box use.

Two DRPC-240 embedded systems mounted on a DIN rail

DIN-Rail Mount

DRPC-240 embedded system marked with dimensions 190mm in length, 150mm in width, 81mm in height

Dimension (Unit: mm)

DRPC-240 embedded system placed on a desk in an environment with robotic arm

Set-top box

Industrial-grade Hardened Hardware Design
with 12V~28V DC Wide-range Power Input

Ruggedized hardware architecture safeguards the small factor computer in harsh, remote and dynamic environments.

» Fanless cooling eliminates failure points

» -20°C to 60°C wide operating temperature

» 15G non-operation and 5G operation shock

» Wide 12V to 28V DC voltage input

» Intel® Platform Trust Technology (Intel® PTT) to enable password protection, device authentication and future-ready cybersecurity

-20°C

-20°C to 60°C wide operating temperature

60°C

Fanless System with Reliable Thermal Design

The DRPC-240's thermal design is optimized for better heat conduction using a pin-fin heatsink concept. This enhances two dimensional heat conduction and reduces flow impedance for better heat dissipation in this fan-less system. The overall weight is thus reduced by 35%, significantly enhancing system reliability in vibration-sensitive applications, such as AGV. Moreover, this innovative thermal design allows the DRPC-240 to maximize superior performance compared to those with traditional plate heatsink consisting of parallel fins.

DRPC-240's heatsink is marked with four directional arrows to indicate heat dissipation flow

Lightweight & Thin Cooling Solution

35% Lighter

Suitable for vibration-sensitive environments

Traditional embedded system weighing 2900g

Traditional Heatsink

DRPC-240 embedded system weighing 2190g

Heatsink of DRPC-240

36% Thinner

Fit space-limited environments

Traditional Heatsink is 34mm

Traditional Heatsink

DRPC-240 is 36% thinner fitting space-limited environments

Heatsink of DRPC-240

Advanced High-efficiency Fan Kit Releases Extreme
Computing Power

For computing-intensive applications, users could opt to add an external fan for an active cooling solution maintaining high system performance in high temperature environment and high CPU loading situation. This design also brings high reliability by preventing dust or particles from getting into the hardware, and it is easy to disassemble and clean.

» TDP 15W -20°C ~ 60°C w/o external fan

» TDP 28W -20°C ~ 60°C with external fan

100% CPU Power

100% CPU Power

Easy Assembly

Easy Assembly

Silent Operation

Silent Operation

DRPC-240 embedded system with external fan kit creating wind turbulence to transfer system heat

Fan Kit P/N :
SF-DRPC-240-R10

Wireless Connectivity and
AI Accelerating for Edge Telemetry

The DRPC-240 enables seamless wireless connectivity and AI accelerating for remote and mobile edge deployments.
» 4G/LTE by M.2 3042 B key slot with SIM socket on board
(USB 3.2 Gen 1/USB 2.0 mode) or AI accelerator by M.2 3080 B key slot
(PCIe x2 mode)
» Wi-Fi & Bluetooth by M.2 2230 A key slot (PCIe x1 and USB 2.0 mode)

DRPC-240 with two external antennas and icons of LTE, Bluetooth, Wi-Fi, robot, AI, internet and network

Quad Port 2.5 Gigabit Ethernet with PoE Power

The DRPC-240 equips four 2.5GbE RJ-45 ports to meet requirements of bandwidth-demanding applications. In addition, the DRPC-240 compliant with the IEEE 802.3af PoE standard offers 4-port 15.4-watt PoE capabilities by the optional PoE power module (GPOE-DRPC-240), which helps to transform all of the four 2.5GbE ports to PoE capable.
The DRPC-240 can supply a total power budget of 60 watts to meet the demands of many power devices (PDs) (such as IP cameras, wireless APs, IP phones and LED lights).

GPOE-DRPC-240 PoE power module that can be installed into DRPC-240

P/N: GPOE-DRPC-240

I/O panel of DRPC-240 with icons of IP phone, IP camera, LED light and wireless AP
I/O panel of DRPC-240 with icons of IP phone, IP camera, LED light and wireless AP
GPOE-DRPC-240 PoE power module that can be installed into DRPC-240

Dual 4K Displays with Immersive Graphics and Media Performance

The DRPC-240 is equipped with one HDMI™ 1.4 port and one DP++ port, both support pixel-accurate 4K resolutions and empower manufacturers to access clearer analysis and management via panel displays or interactive displays. The DP++ connector allows the use of a simple, inexpensive passive adapter to convert to HDMI™. It is completely plug and play, handles both video and audio, and does not need any driver to work.

DRPC-240 embedded system with HDMI™ port and DP++ port highlighted
DRPC-240 embedded system with HDMI™ port and DP++ port highlighted DRPC-240 embedded system with HDMI™ port and DP++ port highlighted

Industrial I/O Connectivity

The DRPC-240 offers a rich array of expansion possibilities, including COM, LAN, PoE, USB and much more. It also offers HDMI™ and DP ++ outputs, so you’ll never be stuck for display options.
In addition, the isolated COM ports enable the DRPC-240 to be protected against voltage spikes and common-mode transient event. The DRPC-240 embedded system even has M.2 slots for Wi-Fi, Bluetooth and LTE add-on modules for exceptional wireless speed and connectivity.

Remote Power Control

Remote power on/off allowing technicians to power up the system from a distance can help save maintenance effort and cost.

Remote power on/off allowing technicians to power up the system from a distanc

2.5kV Isolated COM Ports Ensure Reliable Connectivity

All of the four serial ports on the DRPC-240 are protected against 2.5kV isolation to prevent accidental high voltage shorts, lightning surges and ground loops, so that the DRPC-240 will not be damaged while connected.

RS-422/485 Runs with Automatic Flow Control (AFC)

RS-422/485 Runs with Automatic Flow Control (AFC)

The two RS-422/485 ports support Automatic Flow Control (AFC), which can ensure UART buffers are never overrun so data transmission between devices can be complete without the risk of losing data.

DRPC-240 has remote controllable, up to 4K display, wide power input, and two knockouts for I/O Expansion
DRPC-240 has four 2.5GbE Ports, Isolated Serial Ports, Up to 10Gb/s USB

Application

Production Line

AI Inference System

Smart Building

Energy Management

The DRPC-240 has sufficient serial ports for connecting with devices that require low-speed signal such as alarms or sensors. For connecting devices needing high-speed signals, use the two USB 3.2 Gen 2 ports which transmission speed could reach up to 10Gb/s. Equipping multiple LAN ports is also a key feature of the DRPC-240. Advantages of LAN include inexpensive, highly reliable and easy to install and maintain. Multi-LAN not only supports high speed communication between devices, but is also easy to segment into intranet and extranet for security.

Real-time production line monitoring diagram showing DRPC-240 can be connected with PLC, sensor devices, alarm and private/public cloud via 4G/Wi-Fi

The DRPC-240 with expansion layer features rich I/O and PCIe x4 signal to support add-ons like the IEI acceleration cards (Mustang-V100-MX8 or Mustang-V100-MX4), opening the door to faster deployments of AI inference systems with the combination. It enables machine learning by using a variety of training models to simulate and infer the status or appearance of objects. For example, the inference system with the video analysis model can perform face and vehicle license plate analysis for safety and security purposes.

AI inference application diagram of DRPC-240 capable of connecting with monitor, webcam, data center for analysis and Mustang-V100 to support OpenVINO

The demands on the intelligence of buildings have increased constantly in recent years, such that the energy efficiency as well as a good “return on investment” is the priority. The idea of a “green building” based on sustainable, energy-efficient construction and building use can be realized with intelligent, integral building automation. DRPC-240 provides six set of serial ports which can fulfill user’s demands to connect a large number of devices through serial ports. Utilizing Ethernet connections to communicate with other control system, users could monitor building status and control devices, achieving easy remote management.

Smart building application diagram showing DRPC-240 is capable of connecting with various smart home assets through diverse I/O

Information technology adds intelligence to factories from design to the end of the process. Today’s technologies automate the collection, storage and retrieval of data from across multiple factories and factory sub-systems to make that data available for decision makers, from facility managers to supervisors. DRPC-240 plays a role as the data collector gateway, connecting end devices with the data base. It could also connect with data dashboards to display information like load p rofile analysis, energy usage benchmarking, utility rate benchmarking, and energy budget tracking. Considering the needs of the applications in harsh outdoor environments, the DRPC-240 can support wide operating temperature from -20ºC ~ 60ºC.

Energy management application diagram includes DRPC-240 connecting with QNAP NAS and I/O module, and natural energy sources like solar power

Optional Item Selection

With flexibility and convenience – various options await! Build your iconic DRPC-240 by choosing functional expansions!

Dimensions

dimension diagram of the DRPC-240 embedded system with external fan kit

DRPC-240-TGL-U

With Expansion Chassis


Hardware Spec.

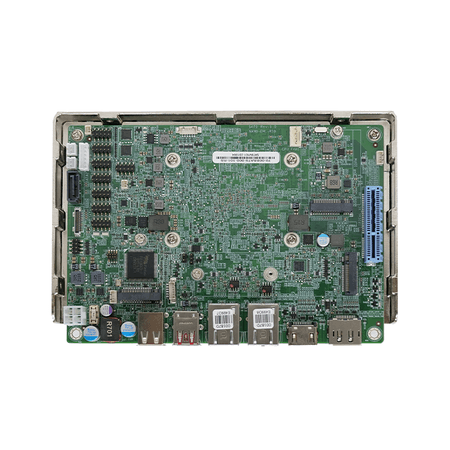

Form factor
SBC Form Factor
  • CPU:
    Intel® Celeron® 6305/6305E 1.8 GHz (dual-core, TDP 15W)
    Intel® Core™ i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad-core, TDP 15W)
    Intel® Core™ i7-1185G7E 1.8 GHz (up to 4.4 GHz, quad-core, TDP 15W)
  • Chipset:
    SoC
  • System Memory:
    2 x SO-DIMM DDR4 3200 MHz (8 GB pre-installed) (up to 64GB)
  • Power:
    Input: Terminal block: 12 ~ 28V DC
    Consumption: 12V @ 6.98A (Intel® Core™ i5-1145G7E with 8GB memory)
I/O Interface
I/O Ports
  • USB:
    2 x USB 3.2 Gen 2
    2 x USB 2.0
  • Ethernet: 4 x RJ-45 (* Support optional PoE af module)
    1 x 2.5 GbE by Intel® I225LM
    3 x 2.5 GbE by Intel® I225V (colay I225LM)
  • COM Port:
    2 x RS-422/485 with AFC (DB-9, with 2.5kV isolation)
    2 x RS-232 (DB-9, with 2.5kV isolation)
  • Digital I/O:
    12-bit Digital I/O (6-in/ 6-out) (optional)
  • Display:
    1 x HDMI™ (up to 3840 x 2160@30Hz)
    1 x DP++ (up to 4096 x 2304@60Hz)
  • TPM:
    Support Intel PTT
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 A-key (PCIe Gen3 x1/USB 2.0)
    1 x 3042/52/80 B-key (PCIe Gen3 x1/USB 3.0/USB 2.0)
    1 x On-board SIM card socket (hinge type) for M.2 B key
  • Backplane:
    1 x PCIe x4
    (optional)
System
Cooling method / System Fan Fanless
4-pin external system fan connector
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x Power button
1 x Reset button
1 x AT/ATX switch
Indicators 1 x Power LED (green)
1 x HDD LED (yellow)
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black
Dimensions
Dimensions 81 x 150 x 190
Weight
Weight 2.15/ 2.5 kg
Environment
Operating Temperature -20°C ~ 60°C with air flow (SSD)
Humidity 10% ~ 95% non-condensing
Operating Vibration Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Operating Shock MIL-STD-810G 514.6C-1 (SSD)
Safety & EMC CE/FCC compliant
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

DRPC-240-TGL-U-i7CS-R10 Fanless embedded system, Intel®Tiger Lake-U i7-1185G7E 1.8GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP++, 4 x 2.5GbE LAN, 4 x COM, DIO, 12~28V DC and RoHS
DRPC-240-TGL-U-i5CS-R10 Fanless embedded system, Intel®Tiger Lake-U i5-1145G7E 1.5GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP++, 4 x 2.5GbE LAN, 4 x COM, DIO, 12~28V DC and RoHS
DRPC-240-TGL-U-W10E64-V-R10 OS Image with Windows® 10 Enterprise Value 64-bit 2019 for DRPC-240-TGL-U Celeron/i3/i5 Series, with DVD-ROM, RoHS
DRPC-240-TGL-U-W10E64-H-R10 OS Image with Windows® 10 Enterprise High End 64-bit 2019 for DRPC-240-TGL-U i7 Series, with DVD-ROM, RoHS
DRPC-240-TGL-U-CECS-R10 Fanless embedded system, Intel®Tiger Lake-U Celeron® 6305E 1.8GHz (dual core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP++, 4 x 2.5GbE LAN, 4 x COM, DIO, 12~28V DC and RoHS

Package Contents

Package Content
  • 1 x DIN-Rail mounting kit

  • 1 x Screw pack

  • 1 x Terminal block
