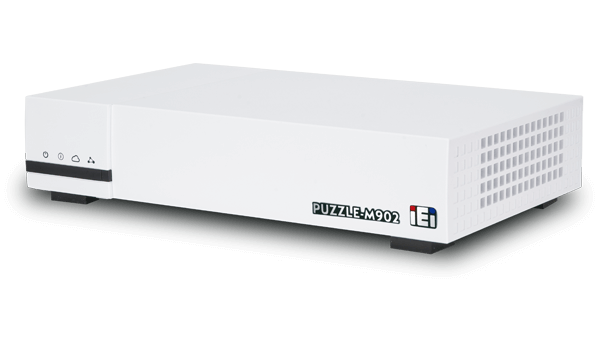

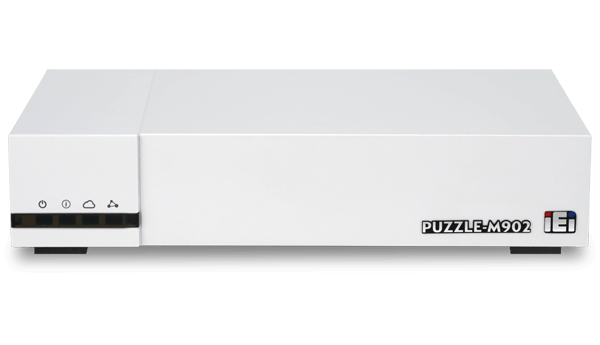

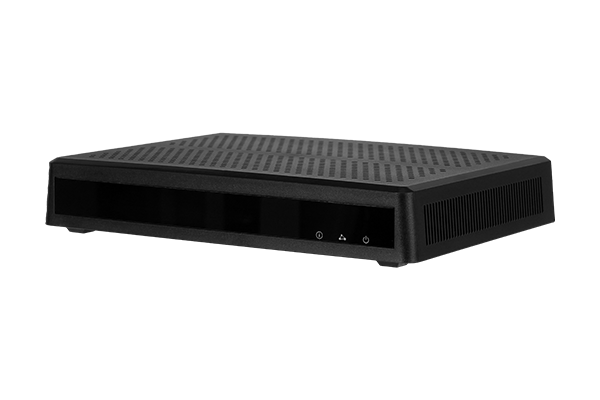

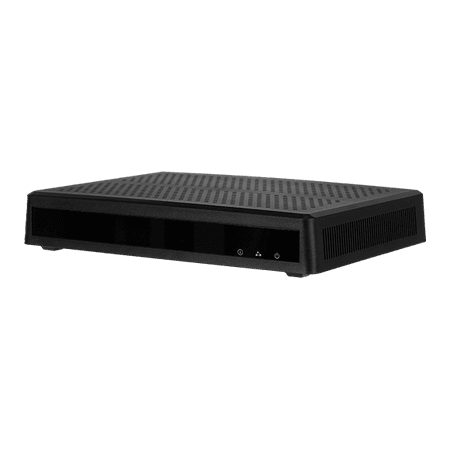

PUZZLE-M902
Why You Need Software Defined Router?
High Reliability, Performance and Availability
Get Your Office Ready for New Gen. Software Defined Router
The growing number of connected personal and IoT devices has led to an overall increase in network density. The PUZZLE-M902 is IEI‘s latest product series – Software Defined Router, which is pre-installed with OpenWrt and features high speed and high flexibility to optimize your network performance.
This series is integrated with 2.5GbE and 10GbE ports and the interfaces can be defined with various combination to meet your demands. Moreover, its function can also be expanded by open source applications supported in the OpenWrt community. It is ideally suited for a wide range of applications, such as SOHO a nd SMB networking infrastructure.
High-end Arm-based Platform with Marvell Quad-core SoC
Accelerate Your Networking and Security Applications
The Marvell CN9130 is a quad-core Armv8 Cortex-A72 system-on-ch ip (SoC). The high-performance processor offers a complete function and acceleration for networking and security applications. It can accelerate the packet processing for NAT, QoS and packet filtering, and offload the processor on multiple IPSec/SSL VPN tunneling.
Flexible High-speed Network Deployment
Stability and Low Latency for Multi-package Delivery

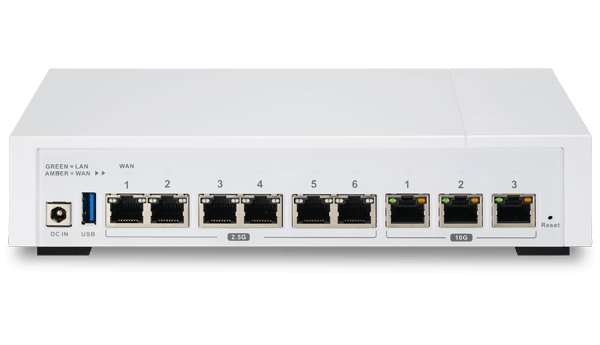

The PUZZLE-M902 can offer you incredible speed for data transmission with six 2.5 GbE ports and three 10 GbE ports. Its interfaces can be defined to link with multiple devices for different tasks and purposes.
Customize Your Network with OpenWrt
One Device, Diversified Results
The hottest open source project, OpenWrt, which is based on Linux-based embedded operating system and used on embedded devices to route network traffic. It uses the command line interface (ash shell) or the web interface (LuCI) to configure OpenWrt. Approximately 3,500 optional software packages can be installed through the opkg package management system. It provides detailed possibilities to configure common network-related functions, such as IPv4, IPv6, DNS, DHCP, VPN, shadowsocks, DLNA, routing, Dynamic DNS, firewall, NAT, port forwarding, file sharing via SAMBA, NFS, FTP, SFTP and MQ Telemetry Transport through Mosquitto.
3500
Various software packages you can have
Simple and Visible Network Operation
Faster and Easier than Before
Make Security Configuration Easier than Ever
Select, Configure, Run. Only Three Steps
There are multiple packages available in the OpenWrt package repository and designed with clear user interface to support IT developer for installing and deploying the security function of network. OpenVPN, a virtual private network (VPN), and Firewall3 (fw3) which uses netfilter/iptable rule builder for firewall applications, are two of the most popular packages for creating high reliable network security.
Hardware Spec.
Form Factor | |
---|---|
Form Factor | Desktop |
System | |
CPU | Marvell® CN9130 quad-core Armv8 Cortex-A72 @ up to 2200 MHz |
Memory | System: 4G |
Cooling method / System Fan | 1 system fan |
Physical Characteristics | |
Dimensions (LxWxH) (mm) | 226 x140 x 50.5 |
Storage | |
Storage | 1 x M.2(NGFF) : 2242/2280 M Key M.2 PCIe Gen. 3 x1 |
1 x eMMC : onboard 4 GB | |
I/O Interface | |
Ethernet |
9 x LAN : 2 x 2.5GbE LAN integrated in CPU via PHY Aquantia AQR112R 4 x 2.5GbE LAN via Marvell 88F8215 (PHY: Aquantia AQR112R) 1 x 10GbE LAN integrated in CPU via PHY Aquantia AQR113 2 x 10GbE LAN via Marvell 88F8215 (PHY: Aquantia AQR113) |
I/O Interface | 1 x External USB 3.2 Gen1x1 |
Environment | |
Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
Storage Temperature | -20°C ~ 75°C (-4°F ~ 167°F) |
Humidity | 5~95% non-condensing, wet bulb: 27˚C |
Certifications | |
Safety & EMC | CE/FCC/BSMI (BSMI safety)/VCCI, LVD |
OS Support | |
OS Support | OpenWrt |
Ordering Information
PUZZLE-M902-CN1-R10 | Desktop Network Appliance with Marvell CN9130 Processor ,6 x 2.5GbE and 3 x10 GbE on Board 4GB eMMC & 1x M.2 slot, RoHS. |
---|
