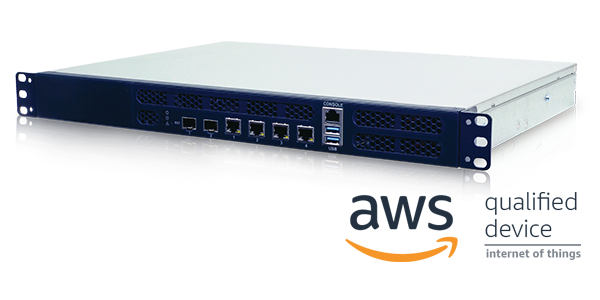

Overview● Marvell® ARMADA® 88F8040 high-performance quad-core System-on-Chip processor● 1 x 288-pin DIMM, DDR4 2400MHz, 16GB (ECC)● 2 x 10GbE SFP+ via Marvell® ARMADA® 88F8040, 4 x GbE RJ-45 via Marvell 88E1512P● 2 x USB 3.2 Gen 1 (5Gb/s), 1 x RJ-45 console, 1 x M.2 B key (SATA & USB 3.2 Gen 1 (5Gb/s)) with SIM holder● 1 x PCIe x16 slot (PCIe x2 signal)
Empowered by Marvell® ARMADA® Chipset
Marvell® ARMADA® 8040 is based on a quad-core ARM Cortex®–A72 processor and supports full CPU and I/O virtualization. Meanwhile, it includes an advanced packet processor with rich state-of-the-art connectivity including two 10GbE SFP ports, four 1GbE RJ-45 ports and one expansion slot (PCIe x2). It makes the PUZZLE-M801 ideal for a wild range of IP appliances and data plane applications as well as virtual CPE and enterprise applications.
Ideally Designed for NGFW, SDN and NFV Applications
Based on ARM v8 architecture, ARMADA® 8040 SoC is capable of realizing various SDN deployment. Advanced Exception Layer (EL) provides support for virtual functions such as Linux KVM and Container with secured or non-secured protection. GIC and SMMU have also been updated to adapt to address translation and interrupt mechanism required in virtual application such as VM, vNIC, vSwitch and SR-IOV. It is also equipped with DPDK compatible packet processor hardware, which processes packet parsing, classifying and buffer & descriptor management. Its security engine provides crypto hardware acceleration for some parts of SDN functions such as L2,L3 checksum offload, CRC offload and IPsec handling.
PUZZLE-M801, Software-defined Forwarding
Equipped with two 10GbE SFP ports, the PUZZLE-M801 provides practical connectivity with network forwarding capability via DPDK for software-defined application running in VM as shown in Figure H. Moreover, users can configure settings of packet processor, traffic management and hardware offload engine by leveraging Marvell MUSDK.
PUZZLE-M801 System Block Diagram
PUZZLE-M801 network appliance support various expansion cards
Spec Item Description System CPU Marvell® Armada® 8040 ARM v8 A72 4C, System-on-Chip (SoC) up to 2.0GHz Memory 1 x DDR4 2400MHz Non-ECC UDIMM Memory Max. Up to 16 GB Cooling method / System Fan 2 x Cooling Fans with Smart Fan Physical Characteristics Rack Height 1U Dimensions (LxWxH) (mm) 320x430x44.2 Net Weight 5 kg Storage Storage 1 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps) 1 x M.2(NGFF) Internal (SATA 6Gbps & USB3.1 Gen1) 1 x eMMC 32GB I/O Interface Ethernet 2 x SFP+ 10 GbE SFP+ 4 x LAN 1 GbE RJ45 I/O Interface 2 x External USB 3.2 Gen1x1 USB3.1 Gen1 TypeA 2 x Internal USB 2.0 Pin header Expansion 1 x PCIe x16 PCIe Gen3 x2 signal 1 x M.2(NGFF) M.2 B Key (3042/2260) (SATA 3.0 and USB 3.2 Gen 1) Support SATA SSD or 4G LTE module (USB signal) Power Input 100 V ~ 240 V Power Supply 250W Environment Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F) Humidity 5% ~ 90% non-condensing Certifications Safety & EMC CE / FCC OS Support OS Support Ubuntu linux-4.4.52-armada-17.10
Item No. Description PUZZLE-M801-A1/8G-R10 1U Rackmount Network Appliance with Marvell Armada 8040 procrssor, 8GB DDR4, one 256GB SSD, four 1GbE , two 10GbE via SFP+, one PCIe expansion, RoHS PUZZLE-M801-A1-R10 1U Rackmount Network Appliance with Marvell Armada 8040 procrssor, one DDR4 slot, four 1GbE , two 10GbE via SFP+ , one PCIe expansion, RoHS
．1 x Power cord
．2 x Rack mounting ears
．6 x Screws for rack mounting ears
．USB to console cable (Option)
．RS-232 to console cable (Option)
