IMBA-Q470

ATX motherboard supports LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

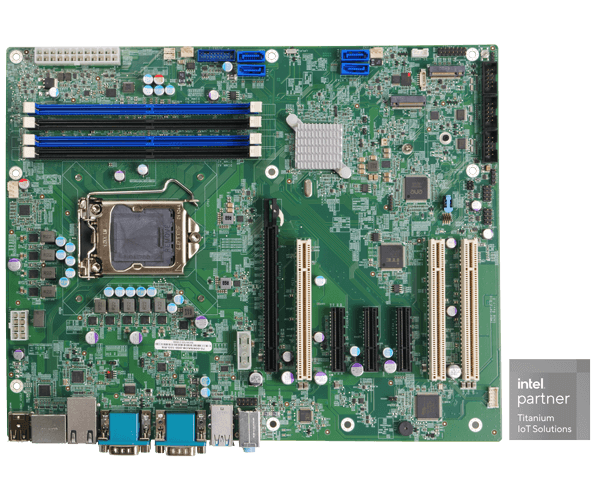

IMBA-Q470 ATX motherboard
IMBA-Q470 ATX motherboard
  • IMBA-Q470 ATX motherboard
  • IMBA-Q470 ATX motherboard
» LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
» Dual-channel DDR4 2933MHz
» Support HDMI, DP, VGA
» Support M.2 A key for WLAN expansion, M key for PCIe NVMe storage

Scroll to features

Hardware Overview

Enhanced CPU and Graphic Performance

Leading Connectivity

Ready for Windows 11

Built for High-performance AI

  • 5 x USB 2.0 headers
  • 1 x RS-232/422/485 port
    2 x RS-232 ports
  • Front Panel
  • 1 x M.2 2242/2280
    M key slot (PCIe 3.0 x4)
  • 1 x M.2 2230 A key slot
    (PCIe 3.0 x1 + USB 2.0)
  • 4 x SATA 6Gbps ports
    (RAID 0/1/5/10)
  • Intel® Q470 /
    Q470E
  • I2C & SMBus
  • 4 x 288-pin 2933MHz
    dual-channel unbuffered
    DDR4 SDRAM DIMMs
  • LGA1200 socket for 10th/11th Gen Intel® Core™, Pentium® and Celeron® processors
  • DIO
  • 1 x PCIe x16 slot
    3 x PCIe x4 slots
    3 x PCI slots
  • Audio Jack
  • 2 x USB 3.2 Gen 1 ports
    2 x USB 3.2 Gen 2 ports
  • VGA
  • 2 x RS-232 ports
  • RS-232/422/485 port
  • 2 x Intel® I225V
    2.5 Gb Ethernets
  • HDMI
  • DP
  • 2 x USB ports
  • 1
    5 x USB 2.0 headers
  • 2
    1 x RS-232/422/485 port 2 x RS-232 ports
  • 3
    Front Panel
  • 4
    1 x M.2 2242/2280 M key slot (PCIe 3.0 x4)
  • 5
    1 x M.2 2230 A key slot (PCIe 3.0 x1 + USB 2.0)
  • 6
    4 x SATA 6Gbps ports (RAID 0/1/5/10)
  • 7
    Intel® Q470/Q470E
  • 8
    I2C & SMBus
  • 9
    4 x 288-pin 2933MHz dual-channel unbuffered DDR4 SDRAM DIMMs
  • 10
    LGA1200 socket for 10th/11th Gen Intel® Core™, Pentium® and Celeron® processors
  • 11
    DIO
  • 12
    1 x PCIe x16 slot 3 x PCIe x4 slots 3 x PCI slots
  • 13
    Audio jacks
  • 14
    2 x USB 3.2 Gen 1 ports
    2 x USB 3.2 Gen 2 ports
  • 15
    VGA
  • 16
    2 x RS-232 ports
  • 17
    RS-232/422/485 port
  • 18
    2 x Intel® I225V
    2.5G Ethernet
  • 19
    HDMI
  • 20
    DP
  • 21
    2 x USB 2.0 ports

Enhanced CPU and Graphics Performance

10th Gen/11th Gen Intel® Core Processors

The IEI IMBA-Q470 motherboard supports both 10th and 11th Gen Intel® Core processors, and the performance boosts up to 80% better than previous generation on i5 processor. The 10th Gen Intel® Core platform supports up to 10 cores and improved performance over Coffee Lake-Refresh. With increased I/O capacity and the latest DDR4-2933 memory support, these processors deliver the performance required to consolidate industrial multiple workloads.

Because of the above features, the IMBA-Q470 is suitable for edge computing, industrial automation, medical equipment, machine vision, automated test equipment and much more.

10th Gen Intel® Embedded CPU Support List

Up to 10 cores / 20 threads in LGA1200 socket

Sockets Brand Process Cores/Threads CPU Processor Base Frequency Cache TDP Processor Graphics Graphics Base Frequency Memory Types Chipset
FCLGA1200 CoreTM i9 14nm Comet Lake-S 10/20 I9-10900E 2.8 GHz 20MB 65W Intel® UHD Graphics 630 350 MHz DDR4-2933 Q470
10/20 I9-10900TE 1.8 GHz 20MB 35W DDR4-2933
CoreTM i7 8/16 I7-10700E 2.9 GHz 16MB 65W DDR4-2933
8/16 I7-10700TE 2.0 GHz 16MB 35W DDR4-2933
CoreTM i5 6/12 I5-10500E 3.1 GHz 8MB 65W DDR4-2666
CoreTM i5 6/12 I5-10500TE 2.3 GHz 8MB 35W DDR4-2666
CoreTM i3 4/8 I3-10100E 3.2 GHz 9MB 65W DDR4-2666
CoreTM i3 4/8 I3-10100TE 2.3 GHz 9MB 35W DDR4-2666
Pentium® 2/4 G6400E 3.8 GHz 4MB 58W DDR4-2400
Pentium® 2/4 G6400TE 3.2 GHz 4MB 35W DDR4-2400
Celeron® 2/2 G5900E 3.2 GHz 2MB 58W DDR4-2400
Celeron® 2/2 G5900TE 3.0 GHz 2MB 35W DDR4-2400

Stunning 4K Resolution and Triple Display

The IMBA-Q470 is equipped with Intel® UHD Graphics to display videos and images in stunning 4K resolutions. Among its three independent display ports (VGA+HDMI+DP), the HDMI and DisplayPort can both support up to 4K high resolution. The enhanced visual quality responses the high precision demand of users.

Display Port 1.2
(4096x2304 @60Hz)

HDMI 1.4
(4096x2160 @30Hz)

VGA
(1920x1080 @60Hz)

Medical Diagnostics

AI Traffic Monitoring

Production Line Management

Leading Connectivity

Dual Intel® 2.5G Ethernet

The IMBA-Q470 is equipped with two Intel 2.5GbE controllers, which are ready for the latest-performance router. With two 2.5GbE ports owning the benefits of low-latency, high-throughput and cost-effective, the IMBA-Q470 can meet the bandwidth-intensive requirements such as large file transfers and high resolution video streaming, which is ideal for machine vision and AI edge computing applications.

photo description

Lower CPU Workload

High TCP & UDP Throughput

Food Quality Control

Automated Optical Inspection

USB 3.2 Gen 2x1 10 Gb/s

Two USB 3.2 Gen 2x1 (10 Gb/s) ports are integrated to support high density data transmission.

USB 3.2 Gen 2x1 10 Gb/s

Two USB 3.2 Gen 2x1 (10 Gb/s) ports are integrated to support high density data transmission.

M.2 M Key

M.2 A Key

M.2 M Key for NVME SSD

The M.2 2242/80 M-key socket with PCI Express® 3.0 x4 bandwidth supports up to 32Gbps data-transfer speeds. It's the perfect choice for installing an operating system or application drive to provide fast data access.

M.2 A Key for Wi-Fi/Bluetooth

The M.2 2230 A-key socket supports PCIe/USB mode for creating a fast, cost-effective Wi-Fi 6 and Bluetooth 5.2 solution.

PCIeX16

PCI

PCIeX4

PCIeX4

PCIeX4

PCI

PCI

PCIe x16/4 & PCI Expansion Slots

There is an array of expansion interfaces on the IMBA-Q470 to meet different demands of each customer. It supports up to three PCI, three PCIe x4 , and one PCIe x16 slot, which can be used to install a variety of interface cards, including motion control cards, frame grabber cards, video capture cards, I/O cards, communication cards, AI accelerator cards and GPGPU cards.

GPGPU Card

Mustang-V100-MX8
AI Accelerator Card

Mustang-T100-T5
AI Accelerator Card

Ready for Windows 11

To comply with Windows 11, IEI BIOS enables Intel firmware-based TPM function, Intel® PTT. TPM can be leveraged to encrypt your storage drive. This protects your data, including your identity and operating system files. Encryption also protects your data in the case of physical theft.

Windows 11

V.S

Windows 10

Windows 11 IoT Enterprise Windows 10 IoT Enterprise, Version 21H2
Servicing Annual Release SAC and LTSC
Kiosk Mode Multi App Assigned Access Coming Soon V
Unified Write Filter (UWF) Updates V V
Browser Support Microsoft Edge included in box and follows Modern Lifecycle Policy Microsoft Edge included in box and follows Modern Lifecycle Policy
Soft Real Time V V
WPA3 H2E Support V V
Wi-Fi 6E V Not Available
USB 4.0 V Not Available

Hardware Spec.

Form Factor
Form Factor ATX Motherboard
System
CPU LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset Intel® Q470/Q470E
Memory Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB
Memory Max. up to 128GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x3 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 305mm
Net Weight GW:1200g / NW:700g
Storage
Storage 4 x SATA
1 x M.2(NGFF) : 1 x M.2 M Key (2240/2280) with PCIe x4
I/O Interface
Display Output 1 x VGA Up to 1920 x 1080 @60Hz
1 x HDMI
1 x Display Port
Ethernet 2 x LAN :
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
Audio 1 x Line in
1 x Line out
1 x Mic
1 x Front Audio : 2x5 pin
I/O Interface 2 x External RS-232
1 x External RS-422/485 : RS-485 support AFC
2 x Internal RS-232 : 2x5 pin, P=2.54
1 x Internal RS-232/422/485 : 2x5 pin, P=2.54 ,RS-485 support AFC
2 x External USB 2.0 : Type-A
2 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A)
5 x Internal USB 2.0 : 2x4 pin, P=2.54
2 x Internal USB 3.2 Gen1x1 : 2x10 pin, p=2.0
1 x DIO : 8-bit digital I/O (2x5 pin
2 x External USB 3.2 Gen2x1 : 10Gb/s(Type-A)
Expansion 1 x PCIe x16
3 x PCIe x4
3 x PCI Slot
2 x M.2(NGFF) :
1 x M.2 M-key 2242/2280 (PCIe x4)
1 x M.2 A-key 2230 (PCIe x1 / USB 2.0)
Power
Power Consumption 3.3V@1.36A, 5V@14.16A, 12V@7.5A
(Intel® Core™ i9-10900E CPU with four 32 GB 3200 MHz DDR4 memory)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature 0°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IMBA-Q470-R10 ATX motherboard supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content
  • 1 x IMBA-Q470 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG

Options

CF-115XA-R10High-performance LGA1155/1156/1200 cooler kit, 1U chassis compatible, 73W
CF-1156C-R20LGA1155/1156/1200 cooler kit, 1U chassis compatible, 45W
CF-1156D-R30LGA1155/1156/1200 cooler kit, 1U chassis compatible, 65W
CF-115XE-R10High-performance LGA1155/1156/1200 cooler kit, 95W
CB-USB02Dual port USB cable with bracket, 300mm, P=2.54
19800-010500-200-RSUSB 3.0/USB3.2 cable 450mm with bracket, P=2.0
19800-020100-100-RSRS-232 cable, 230mm, P=2.54
32102-000100-200-RSSATA power cable, MOLEX 8981-4M to SATA15P, 150MM
