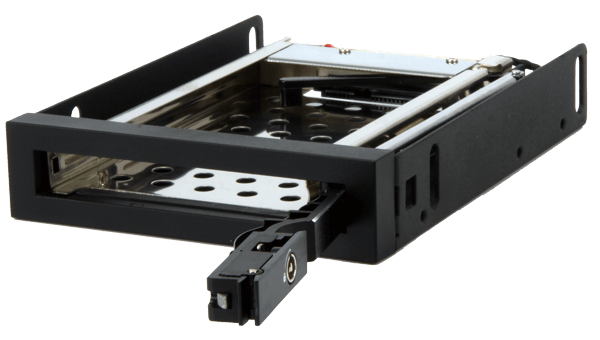

RHD-101SATA

Single 2.5" HDD-ROM SATA Internal Enclosure

• Unique tray-less and tool-less design
• Support 2.5" 9.5mm thickness SATA / SAS HDD and takes one 3.5" of PC space
• Lock function for more security
• Patented NSS connector support 50,000 times Hot Swap

Hardware Spec.

General
Dimensions 140 x 101.6 x 25 (L x W x H) (mm)
Material
Material Aluminum & SPCC
Weight
Weight 0.236 kg (Gross)
Data Transfer Rate
Data Transfer Rate Up to 6Gb/Sec
Drive Bay Space
Drive Bay Space One 3.5" drive bay
HDD Type
HDD Type 2.5” SATA/SAS
1 x HDD/SSD
Cooloing Fan
Cooloing Fan No
Hot Swap
Hot Swap Yes
Keylock
Keylock Yes
Signal Out
Signal Out SATA 7 Pin
Color
Color Black
Interface
Interface SATA 7 + 15 Pin

Ordering Information

RHD-101SATA-R20 DRIVER CAGE;3.5 DEVICE BAY 2.5'' SAS & SATA,R20;RoHS
