End of Life Notice
* Effective Date: 2024/04/09

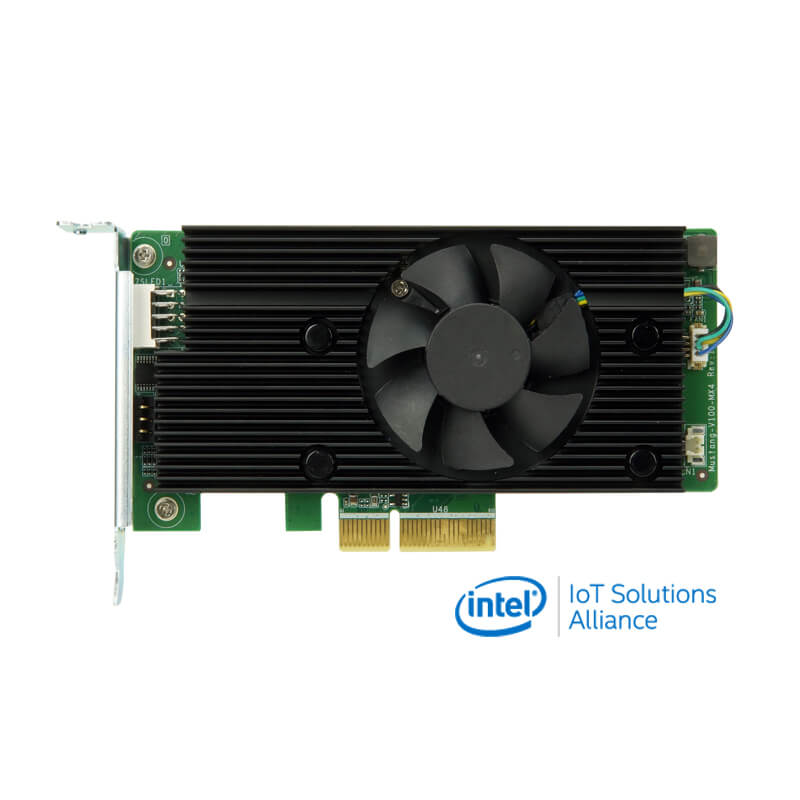

» PCIe Gen 2 x 2 form factor
» 4 x Intel® Movidius™ Myriad™ X VPU MA2485
» Power efficiency, Approximate 15W
» Operating Temperature -20°C~60°C
» Powered by Intel's OpenVINO™ toolkit
» Multiple cards supported
Hardware Spec.
| System | |
|---|---|
| Chipset | 4 x Intel® Movidius™ Myriad™ X MA2485 VPU |
| Cooling method / System Fan | Active fan |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 113 X 56 X 23 |
| Power | |
|---|---|
| Power Consumption | Approximate 15W |
| Environment | |
|---|---|
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 90% |
| Card Slot Interface | |
|---|---|
| PCIe | Gen 2 x 2 |
