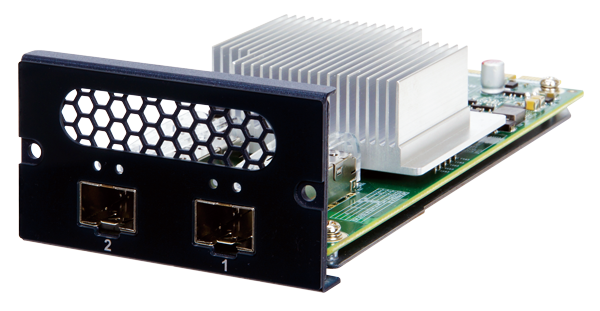

PulM-25G2SF

Mellanox ConnectX-4 Lx based Network Interface Card support Dual 25GbE with 2 x SFP28 and PCIe 3.0 x8 Interface

PulM-25G2SF/T Network module
  • PulM-25G2SF/T Network module
• 2 x Mellanox ConnectX-4 Lx EN
• 2 ports 25 GbE SFP28 connector
• PCIe 3.0 x8
• RoHS /CE/FCC compliant

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
I/O Interface
Ethernet 2 x SFP+ (SFP28)
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing
Certifications
Safety & EMC RoHS/CE/FCC compliant
Card Slot Interface
PCIe PCIe 3.0 x8
Card Features
Speed 1GbE/10GbE/25GbE
Controller Chip Mellanox ConnectX-4 Lx EN

Ordering Information

PulM-25G2SF-MLX-R10 Mellanox ConnectX-4 Lx based Network Interface Card support Dual 25GbE with 2 x SFP28 by 1 PCIe 3.0 x 8 Interface.

Package Contents

Package Content
  • 1 x PulM-25G2SF-MLX module

  • 1 x L-shaped T10 Plum Wrench

  • 1 x QIG
