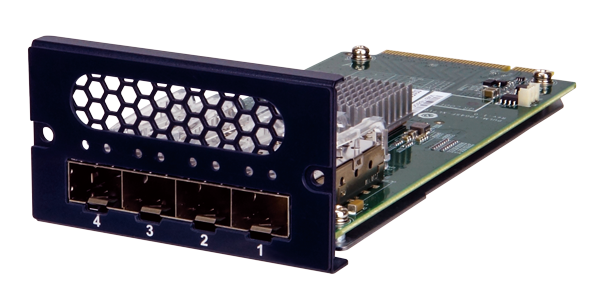

PulM-10G4SF-XL710

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with 4 x SFP+ by 1 PCIe 3.0 x8 interface

PulM-10G4SF/T-XL710 NIC
  • PulM-10G4SF/T-XL710 NIC
• 1 x Intel® Ethernet Controller XL710-BM1
• 4 ports 10 GbE SFP+ connector
• PCIe 3.0 x8
• RoHS /CE/FCC compliant

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
I/O Interface
Ethernet 4 x SFP+
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing
Certifications
Safety & EMC RoHS/CE/FCC compliant
Card Slot Interface
PCIe PCIe 3.0 x8
Card Features
Speed 1GbE/10GbE
Controller Chip Intel® Ethernet Controller XL710-BM1

Ordering Information

PulM-10G4SF-XL710-R10 Intel® Ethernet Controller XL710-BM1 based Network Interface Card with 4 x SFP+ by 1 PCIe 3.0 x 8 interface.

Package Contents

Package Content
  • 1 x PulM-10G4SF-XL710 module

  • 1 x L-shaped T10 Plum Wrench

  • 1 x QIG
